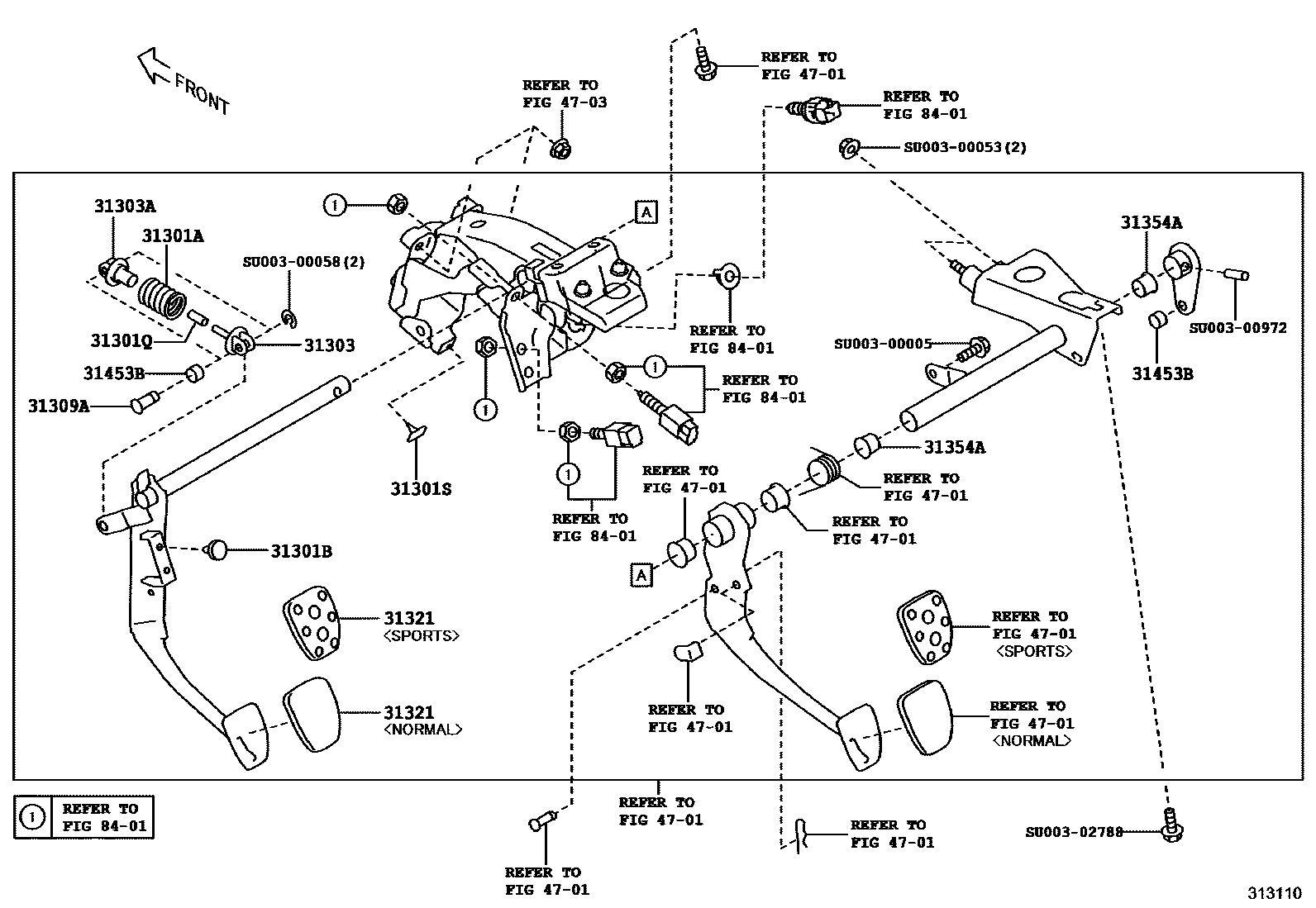

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301ASPRING(FOR CLUTCH PEDAL)

mainSU00300979iZN6..6F201607-201711

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

mainSU00300975iZN6..6F201607-201711

31301QBUSH(FOR CLUTCH PEDAL SPRING)

mainSU00300968iZN6..6F201607-201711

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

mainSU00307283iZN6..6F201607-201711

31303ROD SUB-ASSY, PEDAL RETURN SPRING

mainSU00300973iZN6..6F201607-201711

31303AROD SUB-ASSY, PEDAL RETURN SPRING

mainSU00300974iZN6..6F201607-201711

31309APIN, W/HOLE(FOR PEDAL RETURN SPRING CLEVIS)

mainSU00302937×2iZN6..6F201607-201711

31321PAD, CLUTCH PEDAL

mainSU00300971iZN6..6F201607-201711

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

mainSU00300966×2iZN6..6F201607-201711

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

mainSU00300969×3iZN6..6F201607-201711

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

SU00300005

mainSU003-00005

SU00300053

mainSU003-00053

SU00300058

mainSU003-00058

SU00300972

mainSU003-00972

SU00302788

mainSU003-02788

18 parts on this diagram · 2 diagrams in section
