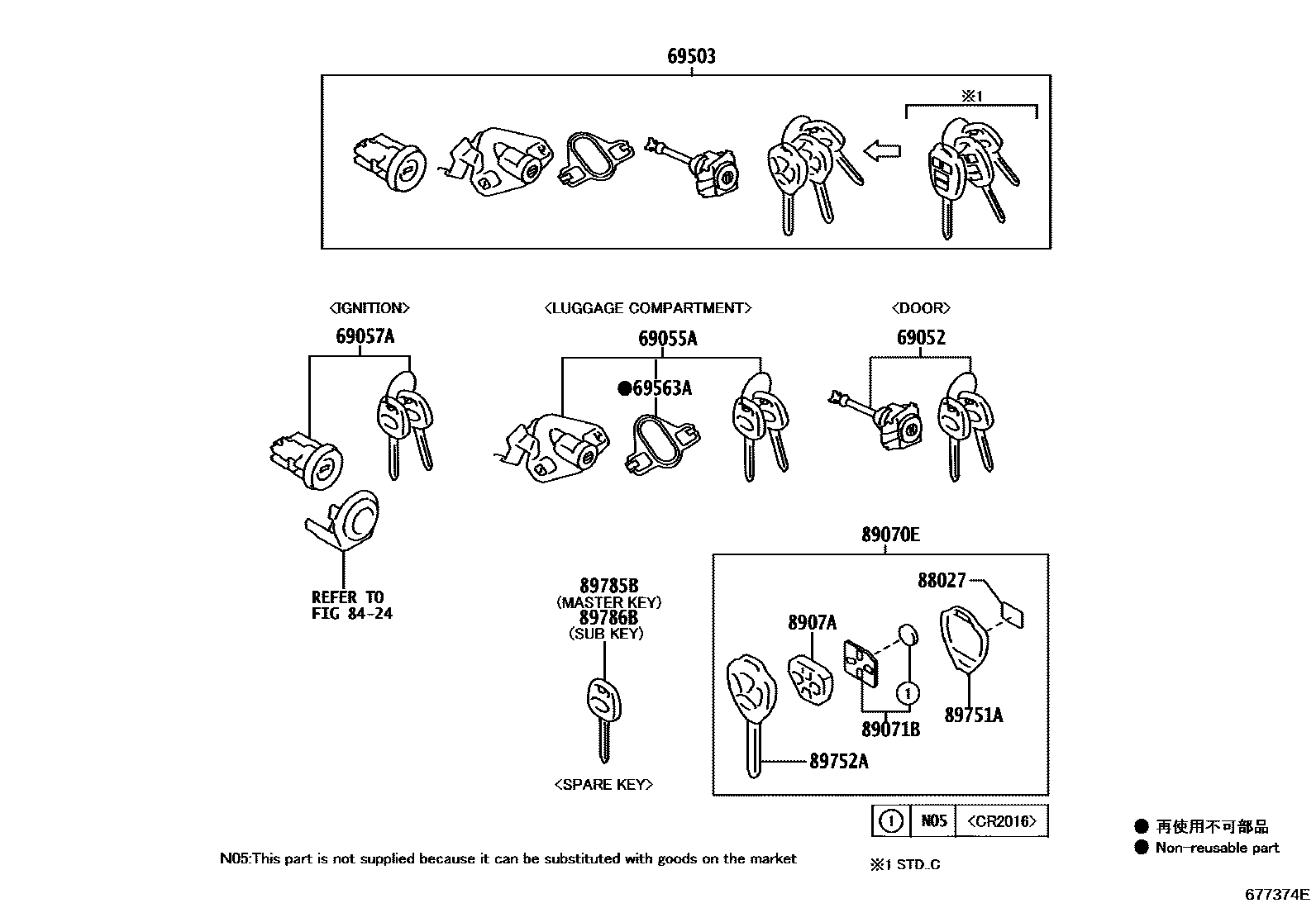

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
8424ANTI-THEFT DEVICE
88027LABEL, KEY LESS
89070ETRANSMITTER ASSY, DOOR CONTROL
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
8907ASWITCH SET, TRANSMITTER
89751ACOVER, TRANSMITTER HOUSING
89752ACASE, TRANSMITTER HOUSING
89785BTRANSMITTER, TRANSPONDER KEY MASTER
89786BTRANSMITTER, TRANSPONDER KEY SUB
SUB KEY,W(68)
14 parts on this diagram · 2 diagrams in section
