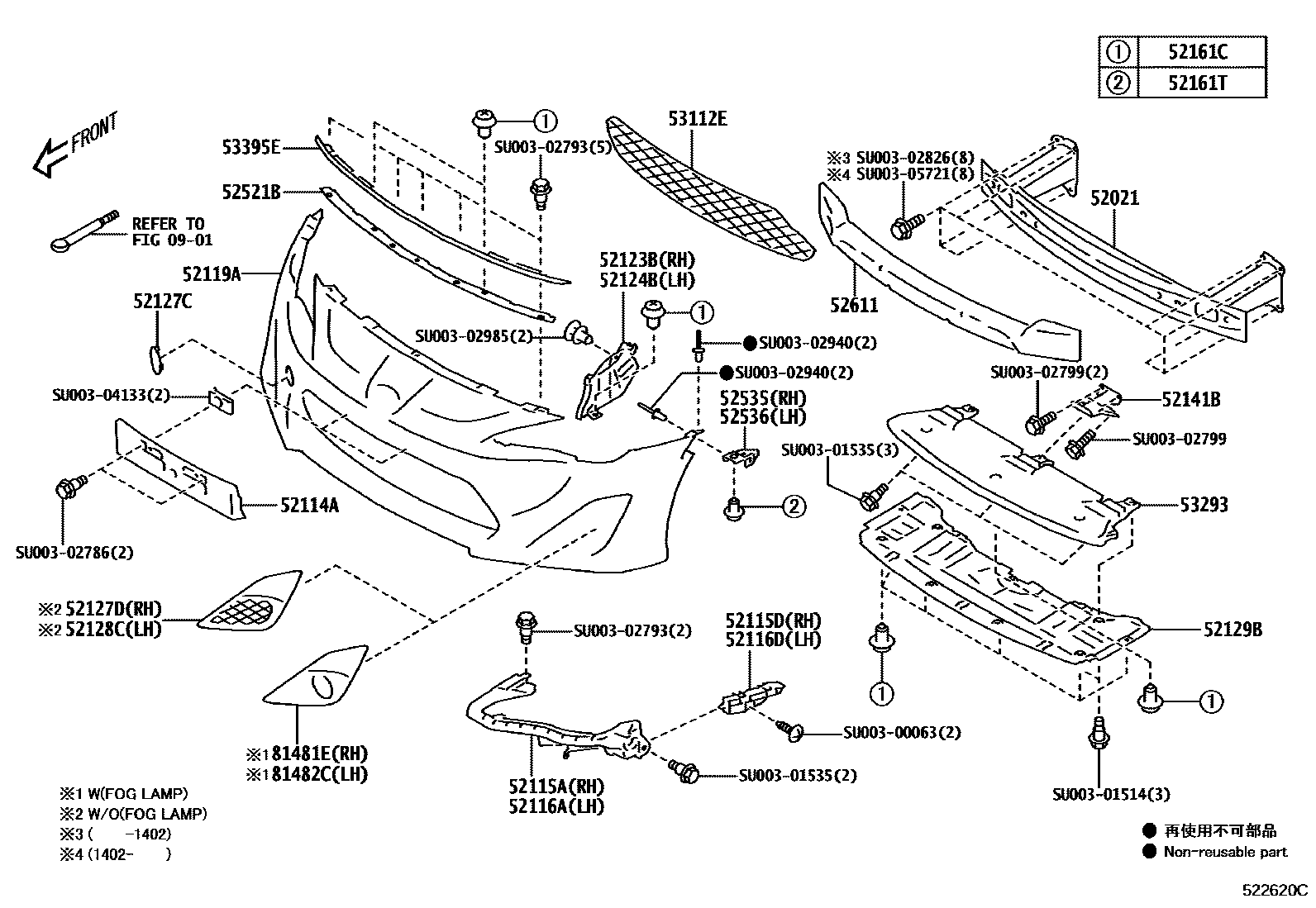

FRONT BUMPER & BUMPER STAY

0001 1 0002 1EXTENTION MOUNTING BRACKET

0901

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

mainSU00301508iZN6..D201203-201606

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

mainSU00301540iZN6..BASE,HI201203-201606

mainSU00301541iZN6..(SPE,STD)..D201203-201606

52115ASUPPORT, FRONT BUMPER SIDE, RH

mainSU00301496iZN6201203-201208

subSU003-04527

mainSU00304527iZN6201208-201512

subSU003-07155

mainSU00307155iZN6201512-201606

52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH

mainSU00301498iZN6201203-201606

52116ASUPPORT, FRONT BUMPER SIDE, LH

mainSU00301497iZN6201203-201208

subSU003-04528

mainSU00304528iZN6..B201208-201512

subSU003-07156

mainSU00307156iZN6201512-201606

52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH

mainSU00301499iZN6..B201203-201606

52119ACOVER, FRONT BUMPER

mainSU00301483iZN6..BASE,HI201203-201606

PAINT REQ.

mainSU00301484iZN6..(LIMD,STD)..C201203-201606

PAINT REQ.

52123BPLATE, FRONT BUMPER REINFORCEMENT, RH

mainSU00301537iZN6201203-201606

52124BPLATE, FRONT BUMPER REINFORCEMENT, LH

mainSU00301538iZN6201203-201606

52127CCOVER, FRONT BUMPER HOLE

mainSU00303951iZN6..BASE201203-201404

MATERIAL COLOR,37J,61K,C7P,D4S,D6S,E8H,H8R

mainSU00303951iZN6..BASE201203-201308

MATERIAL COLOR,37J,61K,C7P,D4S,D6S,E8H,H8R,J8A

mainSU00303951iZN6..BASE..C201404-201504

MATERIAL COLOR,61K,C7P,D4S,E8H,G1U,H8R,K1X

mainSU00303951iZN6..BASE..C201404-201504

MATERIAL COLOR,61K,C2Z,C7P,D4S,E8H,G1U,H8R,K1X

mainSU00303951iZN6..D201504-201606

MATERIAL COLOR,61K,D4S,G1U,H8R,K1X,K3X,M7Y

52127DCOVER, FRONT BUMPER HOLE, RH

mainSU00301516iZN6..BASE,LIMD,STD201203-201606

52128CCOVER, FRONT BUMPER HOLE, LH

mainSU00301517iZN6..BASE,LIMD,STD201203-201606

52129BCOVER, FRONT BUMPER, LOWER

mainSU00304308iZN6201203-201606

52141BSTAY, FRONT BUMPER

mainSU00301511iZN6201203-201606

52161CPIECE, FRONT BUMPER

mainSU00302984iZN6201203-201606

52161TPIECE, FRONT BUMPER

mainSU00302974iZN6201203-201606

52521BRETAINER, FRONT BUMPER, UPPER

mainSU00301515iZN6201203-201412

subSU003-05827

mainSU00305827iZN6201412-201606

52535RETAINER, FRONT BUMPER SIDE, RH

mainSU00301505iZN6201203-201606

52536RETAINER, FRONT BUMPER SIDE, LH

mainSU00301506iZN6201203-201606

52611ABSORBER, FRONT BUMPER ENERGY

mainSU00301495iZN6201203-201606

53112EGRILLE, RADIATOR, LOWER NO.1

mainSU00301532iZN6201203-201606

NO PAINT REQ.

53293BRACKET, FRONT BUMPER STAY

mainSU00301500iZN6201203-201606

53395ESEAL, HOOD TO FRONT END PANEL

mainSU00301534iZN6201203-201606

81481ECOVER, FOG LAMP, RH

mainSU00301518iZN6..BASE,HI201203-201606

81482CCOVER, FOG LAMP, LH

mainSU00301519iZN6..BASE,HI201203-201606

SU00300063

mainSU003-00063

SU00301514

mainSU003-01514

SU00301535

mainSU003-01535

SU00302786

mainSU003-02786

SU00302793

mainSU003-02793

SU00302799

mainSU003-02799

SU00302826

mainSU003-02826

SU00302940

mainSU003-02940

SU00302985

mainSU003-02985

SU00304133

mainSU003-04133

SU00305721

mainSU003-05721

37 parts on this diagram · 2 diagrams in section
