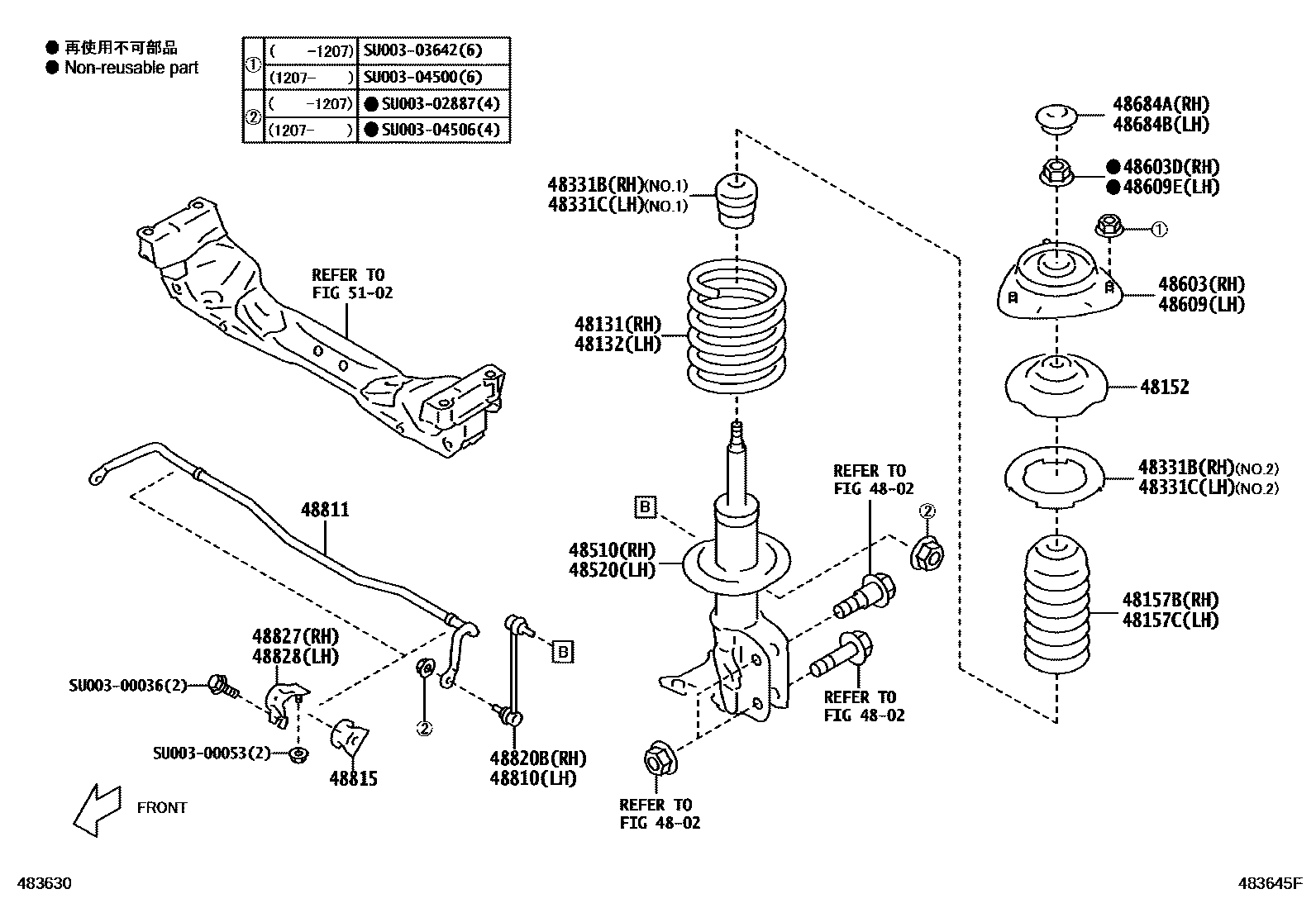

FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48152SEAT, FRONT SPRING
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BBUMPER, FRONT SPRING, RH
NO.1
NO.2
48331CBUMPER, FRONT SPRING, LH
NO.1
NO.2
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 20310-CA000
MARK 20310-CA100
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 20310-CA010
MARK 20310-CA110
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
5102SUSPENSION CROSSMEMBER & UNDER COVER
SU00300036
mainSU003-00036
SU00300053
mainSU003-00053
SU00302887
mainSU003-02887
SU00303642
mainSU003-03642
SU00304500
mainSU003-04500
SU00304506
mainSU003-04506
29 parts on this diagram · 1 diagram in section
