FRONT AXLE HUB

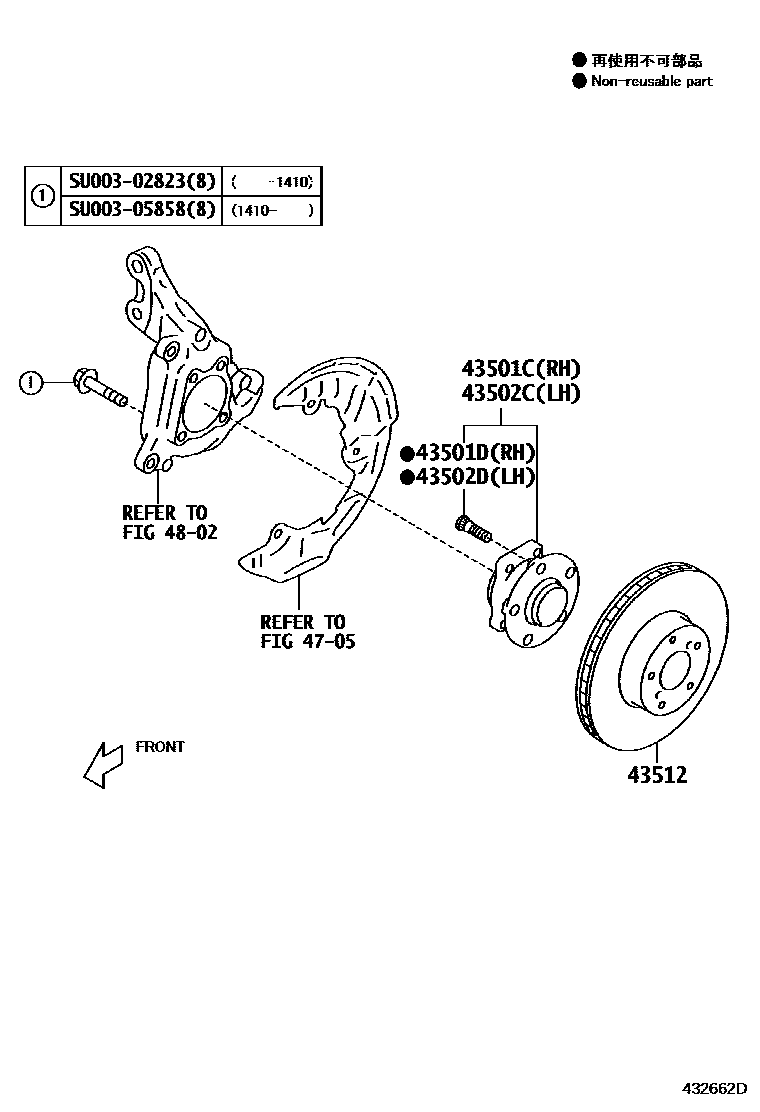

Parts diagram

43501CHUB SUB-ASSY, FRONT AXLE, RH

mainSU00300782i201203-201308

43501DBOLT, HUB (FOR FRONT AXLE RH)

mainSU00300781×5i201203-201308

43502CHUB SUB-ASSY, FRONT AXLE, LH

mainSU00300782i201203-201308

43502DBOLT, HUB (FOR FRONT AXLE LH)

mainSU00300781×5i201203-201308

43512DISC, FRONT

mainSU00300585×2i201203-201308

mainSU00300586×2i201203-201308

4705FRONT DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-05

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

SU00302823

mainSU003-02823

SU00305858

mainSU003-05858

9 parts on this diagram · 1 diagram in section
