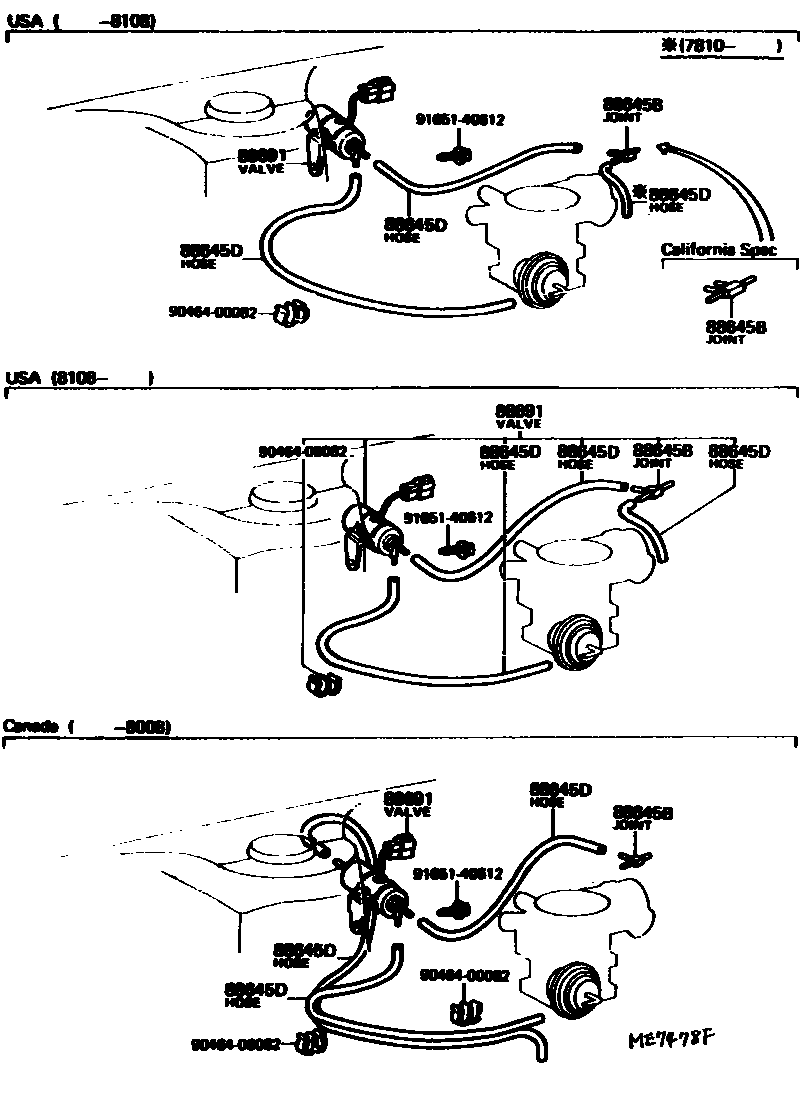

HEATING & AIR CONDITIONING - VACUUM PIPING

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04001iRT134..(3FC,3HC,5F)..USA197908-197910

main90413-04005iRT134..ATM..USA; RT134..CND; RT134..MTM..USA197809-197908

FEDERAL SPEC

main90414-04002iRT134..MTM..USA197809-197908

CALIFORNIA SPEC

88645DHOSE (FOR IDLE UP DEVICE)

main95411-10030iRT134..USA197809-197810

*H,L=180,MARK=#0

main95411-10060iRT134..CND197809-198008

*H,L=400,MARK=#0

main95411-10095iRT134..CND197809-198008

*H,L=700,MARK=#0

main95411-10160iRT135..USA198008-198112

*H,L=330,MARK=#1

main95411-19930iRT134..ATM; RT134..USA197810-198008

*H,L=40,MARK=#*,CALIFOLNIA SPEC; *H,L=40,MARK=#*,FEDERAL SPEC

main95411-19960iRT134..CND; RT134..USA197809-198008

*H,L=540,MARK=#*; *H,L=600,MARK=#*

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-20170iRT134..ATM..USA; RT134..MTM..USA197809-197908

FEDERAL SPEC

main88690-20180iRT134..CND; RT134..MTM..USA197809-197908

CALIFORNIA SPEC

main88690-20281iRT134..(3FC,3HC,5F)..USA197908-198008

main88690-20350iRT135..USA198008-198108

W/O VACUUM HOSE

main88690-20360iRT135..USA198108-198112

W/VACUUM HOSE

9046400082

main90464-00082

9165140612

main91651-40612

5 parts on this diagram · 1 diagram in section
