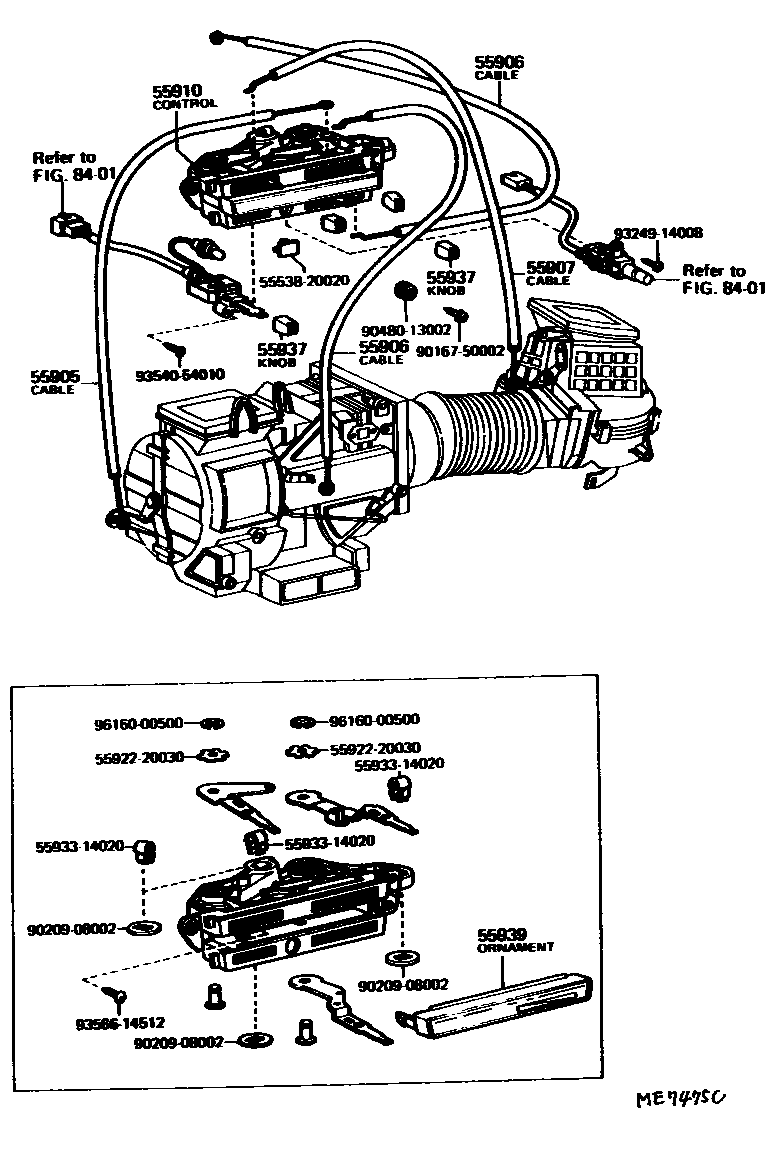

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55905CABLE SUB-ASSY, DEFROST CONTROL

main55906-20090iRT13#197809-198112

L=430

55906CABLE SUB-ASSY, HEATER CONTROL

main55907-20100iRT13#197809-198112

L=620

main55907-20110iRT13#197809-198112

L=720

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main55908-20050iRT13#197809-198112

L=740

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-20919iRT134197809-198008

main55910-20925iRT135198008-198112

55937KNOB, HEATER CONTROL LEVER

main55905-20130×4iRT13#197809-198112

55939ORNAMENT, HEATER CONTROL

main55519-20040iRT134197809-198008

main55519-20110iRT135198008-198112

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5553820020RETAINER,GLOVE COMPARTMENT

main55538-20020

5592220030BRACKET, HEATER CONTROL BASE

main55922-20030

5593314020GUIDE, LEVER, NO.2

main55933-14020

9016750002

main90167-50002

9020908002

main90209-08002

9048013002

main90480-13002

9324914008

main93249-14008

9354054010

main93540-54010

9356614512

main93566-14512

9616000500

main96160-00500

17 parts on this diagram · 2 diagrams in section
