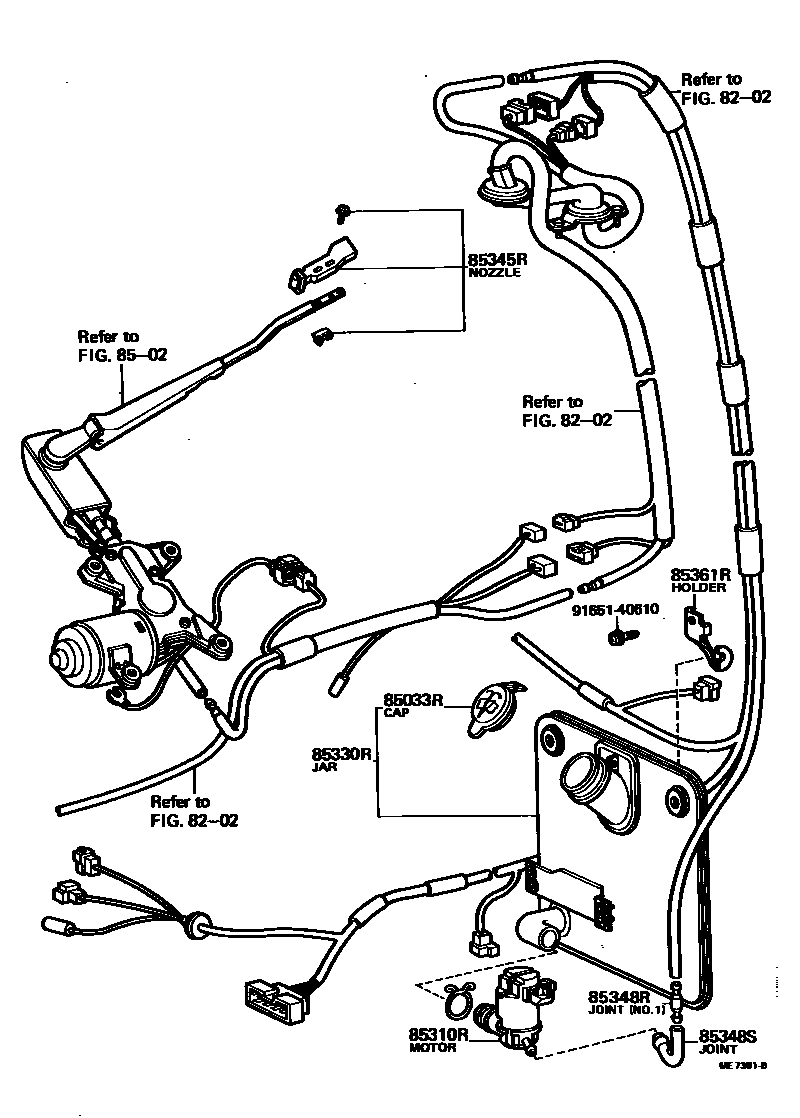

REAR WASHER

0001 1 0002 1 0003 1

8202WIRING & CLAMP

→ Go to FIG 82-02

8502REAR WIPER

→ Go to FIG 85-02

85033RCAP ASSY, REAR WASHER

main85033-22010iRT134..WG197809-198008

main85332-20050iRT134..LB197809-198008

main85332-20070iRT135..LB,WG198008-198112

85310RMOTOR ASSY, REAR WASHER

main85310-20100iRT13#..LB,WG197809-198112

85330RJAR ASSY, REAR WASHER

main85330-20250iRT134..LB197809-198008

main85330-20251iRT135..LB,WG198008-198112

main85330-22050iRT134..WG197809-198112

85345RNOZZLE, REAR WASHER

main85035-14060iRT135..LB198008-198112

main85035-14110iRT134..LB197809-198008

main85035-91255iRT13#..WG197809-198112

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-20080iRT135..LB198008-198112

NO.2

main85355-87201×4iRT134..LB,WG197809-197906

NO.1

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20070iRT13#..LB,WG197809-198112

85361RHOLDER, REAR WASHER

main74466-20010iRT134..LB197809-198008

main74466-20020iRT135..LB198008-198112

main85361-22090×2iRT134..WG197809-198008

main85361-91255iRT135..WG198008-198112

FR

main85362-91255iRT135..WG198008-198112

RR

9165140610

main91651-40610

10 parts on this diagram · 3 diagrams in section
