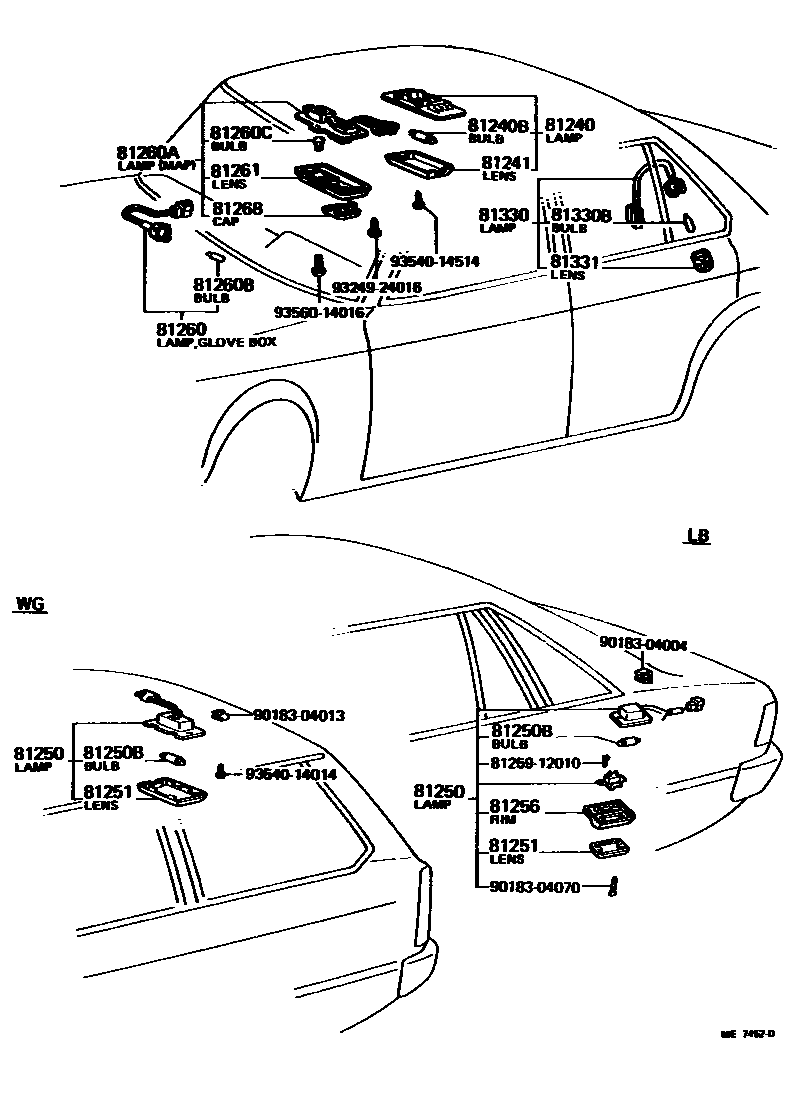

INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
BEIGE,BEIGE
IVORY,IVORY
81240BBULB, ROOM LAMP, NO.1
12V 10W,12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
BLACK,BLACK
D-WINE,RED/MAROON
BEIGE,BEIGE
LIGHT BROWN,BROWN
81250BBULB, ROOM LAMP, NO.2
12V 10W,12V 10W
12V 5W,12V 5W
81251LENS, ROOM LAMP, NO.2
81256RIM, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
W/SUN ROOF
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET,12V 1.4W
81260CBULB(FOR MAP LAMP)
12V 10W,12V 10W
81261LENS AND COVER, MAP LAMP
W/SUN ROOF
81268CAP MAP LAMP
W/SUN ROOF
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W,12V 5W
81331LENS, LUGGAGE COMPARTMENT LAMP
8125912010
main81259-12010
9018304004
main90183-04004
9018304013
main90183-04013
9018304070
main90183-04070
9324924016
main93249-24016
9354014014
main93540-14014
9354014514
main93540-14514
9356014016
main93560-14016
24 parts on this diagram · 1 diagram in section
