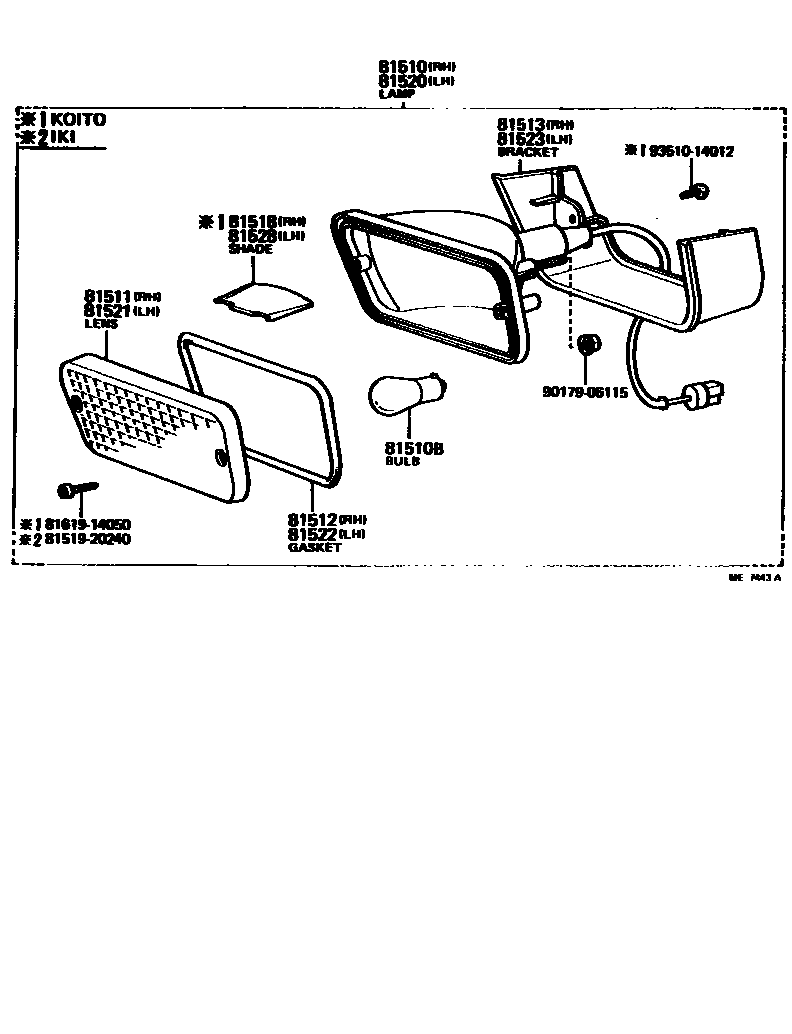

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-19545iRT134197809-198008

KOITO

main81510-29485iRT134197809-198008

IKI

main81510-29486iRT135198008-198112

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11270×2iRT13#197809-198112

12V 27W,12V 27W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-14170iRT134197809-198008

KOITO

main81511-20240iRT13#197809-198112

IKI

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14150iRT134197809-198008

KOITO

main81512-20240iRT13#197809-198112

IKI

81513BRACKET, FRONT TURN SIGNAL LAMP, RH

main81516-14170iRT134197809-198008

KOITO

main81516-20260iRT135198008-198112

IKI

81518SHADE, FRONT TURN SIGNAL LAMP, RH

main81517-14170iRT134197809-198008

KOITO

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-19545iRT134197809-198008

KOITO

main81520-29485iRT134197809-198008

IKI

main81520-29486iRT135198008-198112

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-14170iRT134197809-198008

KOITO

main81521-20230iRT13#197809-198112

IKI

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14150iRT134197809-198008

KOITO

main81512-20240iRT13#197809-198112

IKI

81523BRACKET, FRONT TURN SIGNAL LAMP, LH

main81526-14170iRT134197809-198008

KOITO

main81526-20250iRT135198008-198112

IKI

81528SHADE, FRONT TURN SIGNAL LAMP, LH

main81517-14170iRT134197809-198008

KOITO

8151920240BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-20240

8161914050

main81619-14050

9017906115

main90179-06115

9351014012

main93510-14012

15 parts on this diagram · 1 diagram in section
