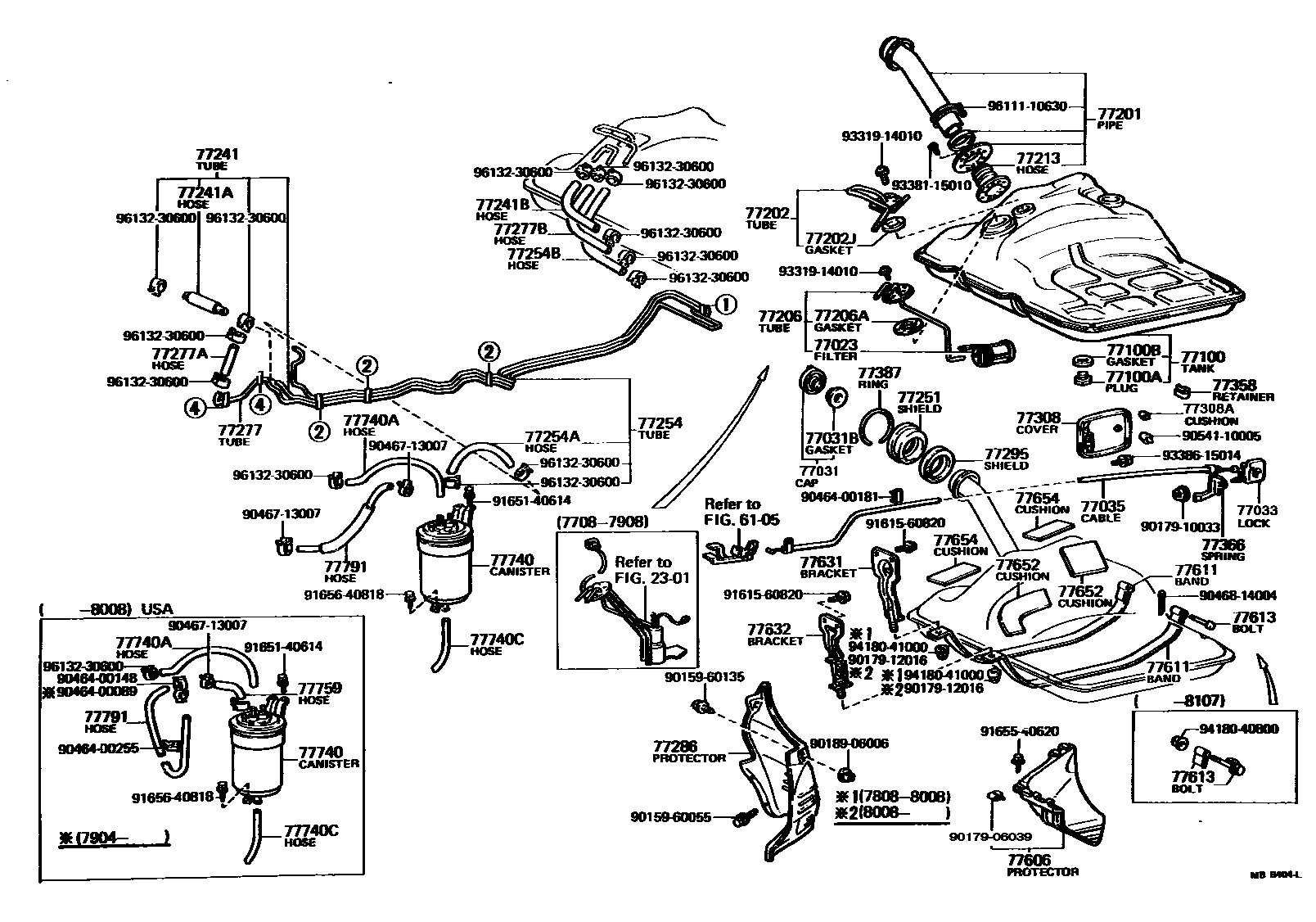

FUEL TANK & TUBE
2301FUEL PUMP & PIPE
6105LUGGAGE COMPARTMENT DOOR & LOCK
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77031CAP ASSY, FUEL TANK
77031BGASKET (FOR FUEL TANK CAP)
77033LOCK SUB-ASSY, FUEL TANK CAP
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
L=3400
L=3520
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77201PIPE SUB-ASSY, FUEL TANK INLET
77202TUBE SUB-ASSY, BREATHER
77202JGASKET (FOR BREATHER TUBE)
77206TUBE SUB-ASSY, FUEL TANK SUCTION
77206AGASKET (FOR FUEL TANK SUCTION TUBE)
77213HOSE, FUEL TANK SUB INLET
77241TUBE, FUEL MAIN, NO.1
77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
L=300
77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
L=200
L=300(*H,L=260)
L=300
L=300(*H,L=260)
L=300(*H,L=220)
77251SHIELD, FUEL TANK, INLET, NO.1
77254TUBE, FUEL EMISSION, NO.1
77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
L=200
77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
L=300(*H,L=280)
L=300(*H,L=260)
L=300(*H,L=280)
L=300
L=300(*H,L=280)
L=300(*H,L=260)
77277TUBE, FUEL RETURN, NO.1
77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
L=300(*H,L=280)
L=240
L=300(*H,L=240)
L=400(*H,L=380)
77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
L=300(*H,L=260)
L=300(*H,L=260)
L=300
77286PROTECTOR, FUEL TANK INLET PIPE
77295SHIELD, FUEL FILLER PIPE
77308COVER SUB-ASSY, FUEL INLET BOX
77308ACUSHION(FOR FUEL INLET BOX COVER)
UPR
LWR
77358RETAINER, FUEL INLET CUSHION
77366SPRING, FUEL FILLER OPENING LID HINGE
77387RING, FUEL INLET BOX
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611BAND, FUEL TANK
77613BOLT, FUEL TANK BAND SET
77631BRACKET, FUEL TANK, NO.1
77632BRACKET, FUEL TANK, NO.2
77652CUSHION, FUEL TANK, NO.1
100X100
77654CUSHION, FUEL TANK, NO.2
100X60
77740CANISTER ASSY, CHARCOAL
*CAL
77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
*H,L=280,MARK=#*
*H,L=240,MARK=#*
*H,L=100,MARK=#*
*H,L=200,MARK=#*,HIGH ALLTITUDE SPEC
*H,L=330,MARK=#*
*H,L=360,MARK=#*,HIGH ALLTITUDE SPEC
*H,L=330
77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
L=200(*H,L=190)
L=200
77759HOSE, CHARCOAL CANISTER
77791HOSE, OUTER VENT VALVE TO CARBURETOR
9015960055
main90159-60055
9015960135
main90159-60135
9017906039
main90179-06039
9017910033
main90179-10033
9017912016
main90179-12016
9018906006
main90189-06006
9046400089
main90464-00089
9046400148
main90464-00148
9046400181
main90464-00181
9046400255
main90464-00255
9046713007
main90467-13007
9046814004
main90468-14004
9054110005
main90541-10005
9161560820
main91615-60820
9165140614
main91651-40614
9165540620
main91655-40620
9165640818
main91656-40818
9331914010
main93319-14010
9338115010
main93381-15010
9338615014
main93386-15014
9418040800
main94180-40800
9418041000
main94180-41000
9611110630
main96111-10630
9613230600
main96132-30600
69 parts on this diagram · 3 diagrams in section
