E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

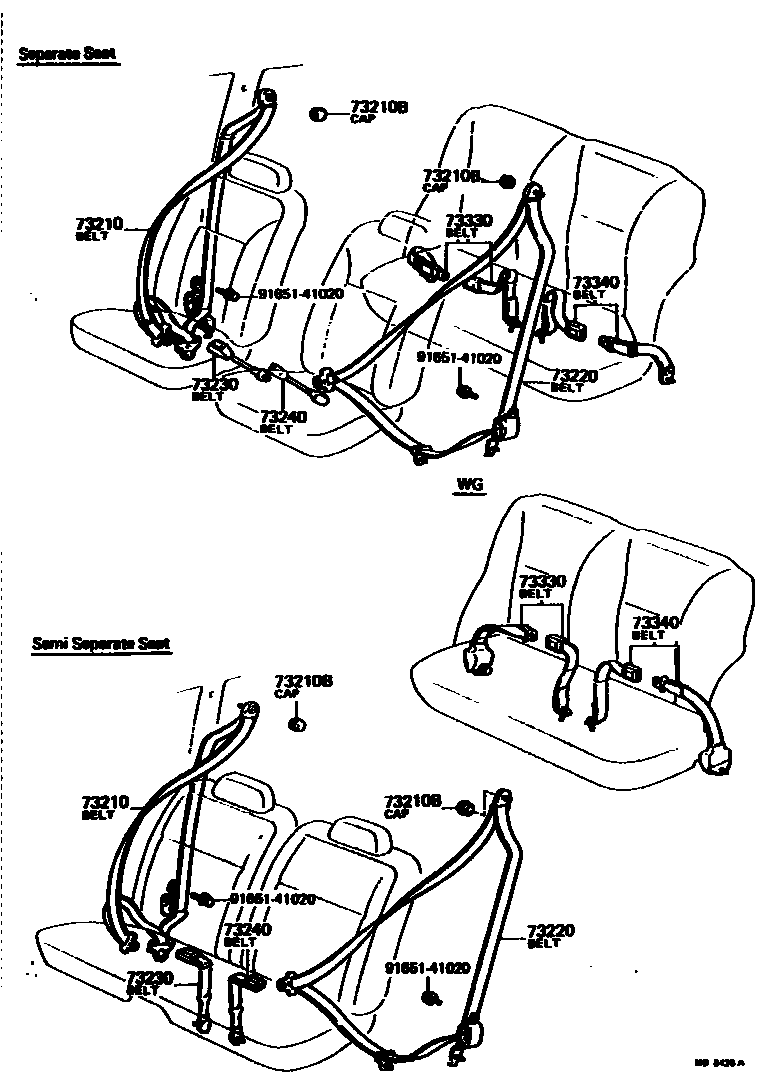

Parts diagram
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-20160-01i197809-198008
BLACK,BLACK
main73210-20160-02i197809-198008
DARK WINE,RED/MAROON
main73210-20160-05i197809-198008
BEIGE,BEIGE
main73210-20191i198001-198003
main73210-20220-01i198008-198112
BLACK,BLACK
main73210-20220-02i198008-198112
DARK WINE,RED/MAROON
main73210-20220-06i198008-198112
LIGHT BROWN,BROWN
73210BCAP (FOR FRONT SEAT OUTER BELT)
main73178-12010-02×2i197809-198112
DARK WINE,RED/MAROON
main73178-12010-11×2i197809-198112
BLACK,BLACK
main73178-12010-15×2i197809-198008
BEIGE,BEIGE
main73178-12010-36×2i198008-198112
LIGHT BROWN,BROWN
73220BELT ASSY, FRONT SEAT OUTER, LH
main73210-20160-01i197809-198008
BLACK,BLACK
main73210-20160-02i197809-198008
DARK WINE,RED/MAROON
main73210-20160-05i197809-198008
BEIGE,BEIGE
main73210-20220-01i198008-198112
BLACK,BLACK
main73210-20220-02i198008-198112
DARK WINE,RED/MAROON
main73210-20220-06i198008-198112
LIGHT BROWN,BROWN
main73220-20111i198001-198003
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-20150-01i197809-198002
BLACK,BLACK
main73230-20150-02i197809-198002
DARK WINE,RED/MAROON
main73230-20150-05i197809-198002
BEIGE,BEIGE
main73230-20151-01i198002-198008
BLACK,BLACK
main73230-20151-02i198002-198008
DARK WINE,RED/MAROON
main73230-20151-05i198002-198008
BEIGE,BEIGE
main73230-20160-01i197809-198002
BLACK,BLACK
main73230-20160-02i197809-198002
DARK WINE,RED/MAROON
main73230-20160-05i197809-198002
BEIGE,BEIGE
main73230-20161-01i198002-198008
BLACK,BLACK
main73230-20161-02i198002-198008
DARK WINE,RED/MAROON
main73230-20161-05i198002-198008
BEIGE,BEIGE
main73230-20210-01i198008-198112
BLACK,BLACK
main73230-20210-02i198008-198112
DARK WINE,RED/MAROON
main73230-20210-06i198008-198112
LIGHT BROWN,BROWN
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-20020-01i197809-198002
BLACK,BLACK
main73240-20020-02i197809-198002
DARK WINE,RED/MAROON
main73240-20020-05i197809-198002
BEIGE,BEIGE
main73240-20021-01i198002-198008
BLACK,BLACK
main73240-20021-02i198002-198008
DARK WINE,RED/MAROON
main73240-20021-05i198002-198008
BEIGE,BEIGE
main73240-20030-01i197809-198002
BLACK,BLACK
main73240-20030-02i197809-198002
DARK WINE,RED/MAROON
main73240-20030-05i197809-198002
BEIGE,BEIGE
main73240-20031-01i198002-198008
BLACK,BLACK
main73240-20031-02i198002-198008
DARK WINE,RED/MAROON
main73240-20031-05i198002-198008
BEIGE,BEIGE
main73240-20040-01i198008-198112
BLACK,BLACK
main73240-20040-02i198008-198112
DARK WINE,RED/MAROON
main73240-20040-06i198008-198112
LIGHT BROWN,BROWN
73330BELT ASSY, REAR SEAT LAP TYPE, RH
main73330-20030-01i197809-198008
BLACK,BLACK
main73330-20030-02i197809-198008
DARK WINE,RED/MAROON
main73330-20030-05i197809-198008
BEIGE,BEIGE
main73330-20040-01i197809-198008
BLACK,BLACK
main73330-20040-02i197809-198008
DARK WINE,RED/MAROON
main73330-20040-05i197809-198008
BEIGE,BEIGE
main73330-20050-01i198008-198108
BLACK,BLACK
main73330-20050-02i198008-198108
DARK WINE,RED/MAROON
main73330-20050-06i198008-198108
LIGHT BROWN,BROWN
main73330-20060-01i198008-198108
BLACK,BLACK
main73330-20060-02i198008-198108
DARK WINE,RED/MAROON
main73330-20060-06i198008-198108
LIGHT BROWN,BROWN
main73330-20080-01i198108-198112
BLACK,BLACK
main73330-20080-02i198108-198112
DARK WINE,RED/MAROON
main73330-20080-06i198108-198112
LIGHT BROWN,BROWN
main73330-20090-01i198108-198112
BLACK,BLACK
main73330-20090-02i198108-198112
DARK WINE,RED/MAROON
main73330-20090-06i198108-198112
LIGHT BROWN,BROWN
main73330-91255-01i197809-198008
BLACK,BLACK
main73330-91255-02i197809-198008
DARK WINE,RED/MAROON
main73330-91255-05i197809-198008
BEIGE,BEIGE
main73330-91257-01i198008-198108
BLACK,BLACK
main73330-91257-02i198008-198108
DARK WINE,RED/MAROON
main73330-91257-06i198008-198108
LIGHT BROWN,BROWN
main73330-91258-01i198108-198112
BLACK,BLACK
main73330-91258-02i198108-198112
DARK WINE,RED/MAROON
main73330-91258-06i198108-198112
LIGHT BROWN,BROWN
73340BELT ASSY, REAR SEAT LAP TYPE, LH
main73330-91255-01i197809-198008
BLACK,BLACK
main73330-91255-02i197809-198008
DARK WINE,RED/MAROON
main73330-91255-05i197809-198008
BEIGE,BEIGE
main73330-91257-01i198008-198108
BLACK,BLACK
main73330-91257-02i198008-198108
DARK WINE,RED/MAROON
main73330-91257-06i198008-198108
LIGHT BROWN,BROWN
main73330-91258-01i198108-198112
BLACK,BLACK
main73330-91258-02i198108-198112
DARK WINE,RED/MAROON
main73330-91258-06i198108-198112
LIGHT BROWN,BROWN
main73340-20020-01i197809-198008
BLACK,BLACK
main73340-20020-02i197809-198008
DARK WINE,RED/MAROON
main73340-20020-05i197809-198008
BEIGE,BEIGE
main73340-20030-01i197809-198008
BLACK,BLACK
main73340-20030-02i197809-198008
DARK WINE,RED/MAROON
main73340-20030-05i197809-198008
BEIGE,BEIGE
main73340-20040-01i198008-198108
BLACK,BLACK
main73340-20040-02i198008-198108
DARK WINE,RED/MAROON
main73340-20040-06i198008-198108
LIGHT BROWN,BROWN
main73340-20050-01i198008-198108
BLACK,BLACK
main73340-20050-02i198008-198108
DARK WINE,RED/MAROON
main73340-20050-06i198008-198108
LIGHT BROWN,BROWN
main73340-20060-01i198108-198112
BLACK,BLACK
main73340-20060-02i198108-198112
DARK WINE,RED/MAROON
main73340-20060-06i198108-198112
LIGHT BROWN,BROWN
main73340-20070-01i198108-198112
BLACK,BLACK
main73340-20070-02i198108-198112
DARK WINE,RED/MAROON
main73340-20070-06i198108-198112
LIGHT BROWN,BROWN
9165141020
main91651-41020

8 parts on this diagram · 3 diagrams in section
