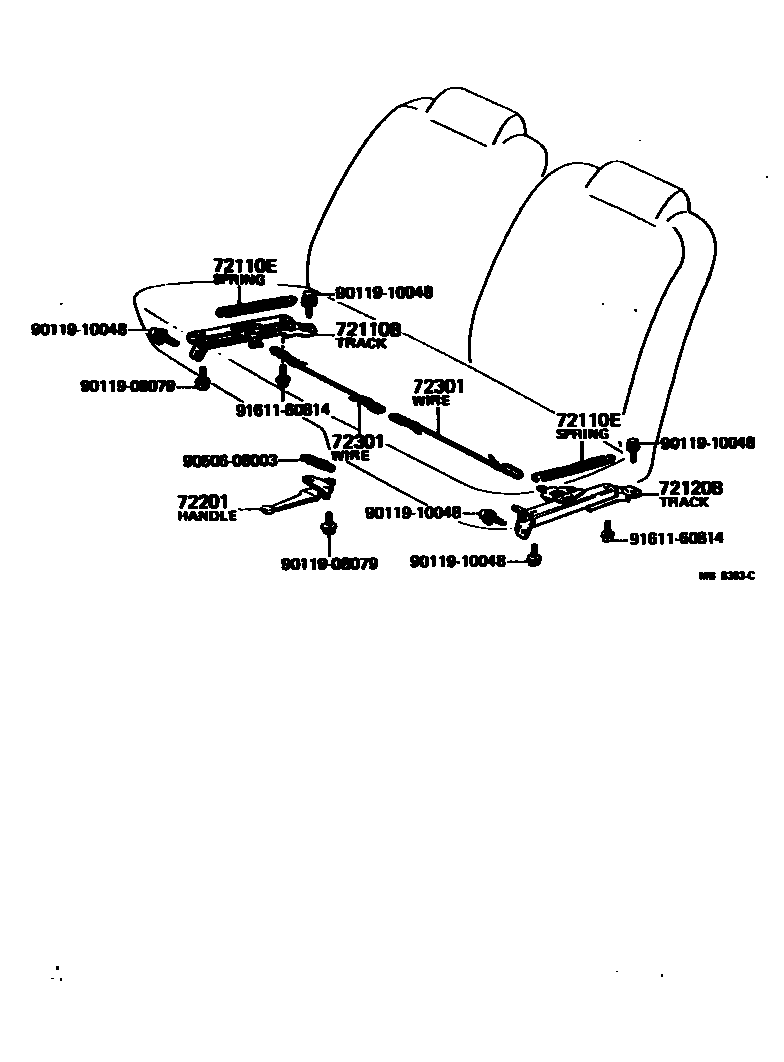

SEAT TRUCK

0001 1 0002 1

72110BTRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)

main72110-20260iRT134..3HC197809-197908

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90506-18008×2iRT13#..3FC,4F,4FC,5F197809-198112

main90506-18009×2iRT134..3HC197809-197908

72120BTRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)

main72120-20240iRT134..3HC197809-197908

72201HANDLE SUB-ASSY, SEAT TRACK

main72201-20070iRT134..3HC197809-197908

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-20130iRT13#..3FC,4F,4FC,5F197809-198112

main72301-20140×2iRT134..3HC197809-197908

9011908079

main90119-08079

9011910048

main90119-10048

9050608003

main90506-08003

9161160814

main91611-60814

9 parts on this diagram · 2 diagrams in section
