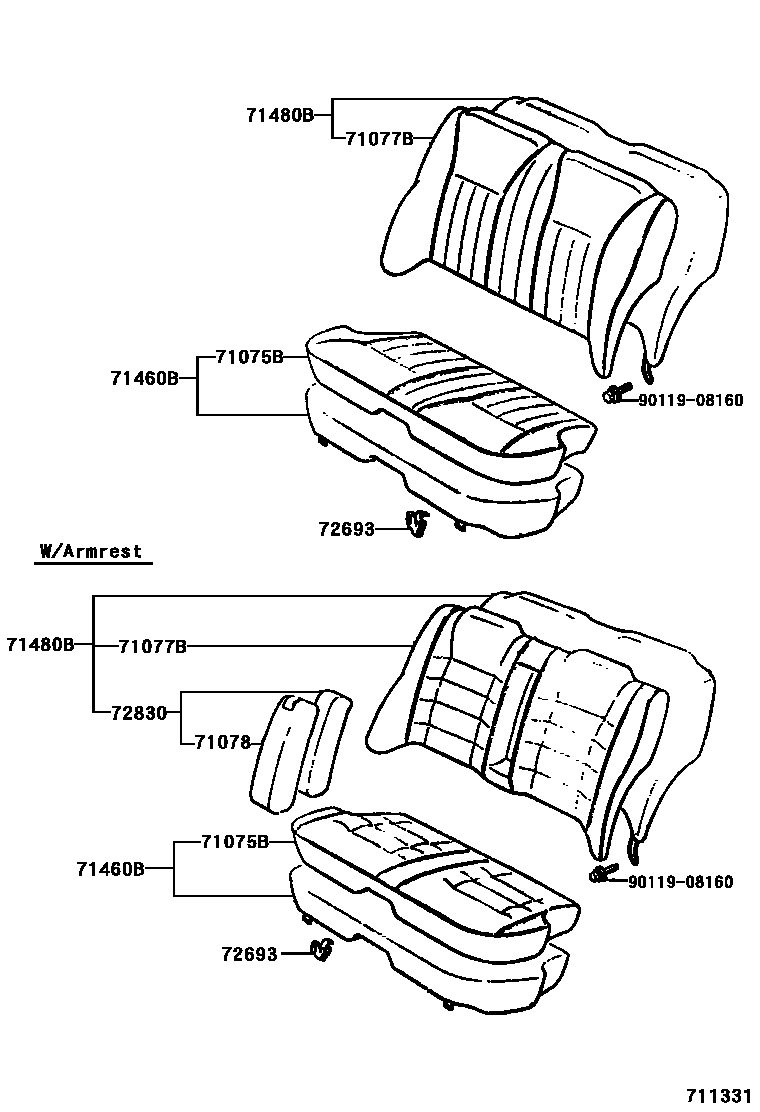

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-20640-01iRT134..SED..DLX..USA197809-198008

PF,BLACK,BLACK

main71075-20640-02iRT134..SED..DLX..USA197809-198008

PF,DARK WINE,RED/MAROON

main71075-20640-05iRT134..SED..DLX..USA197809-198008

PF,BEIGE,BEIGE

main71075-20641-01iRT135..SED..DLX198008-198112

PF,BLACK,BLACK

main71075-20641-02iRT135..SED..DLX198008-198112

PF,DARK WINE,RED/MAROON

main71075-20641-06iRT135..SED..DLX198008-198112

PF,LIGHT BROWN,BROWN

main71075-20650-01iRT134..SED..CND197809-198008

FB-A,BLACK,BLACK

main71075-20650-02iRT134..SED..CND197809-198008

FB-A,DARK WINE,RED/MAROON

main71075-20650-05iRT134..SED..CND197809-198008

FB-A,BEIGE,BEIGE

main71075-20690-01iRT134..SED..LE197809-198008

FB-C,BLACK,BLACK

main71075-20690-02iRT134..SED..LE197809-198008

FB-C,DARK WINE,RED/MAROON

main71075-20690-05iRT134..SED..LE197809-198008

FB-C,BEIGE,BEIGE

main71075-20691-02iRT135..SED..LE198008-198108

FB-C,DARK WINE,RED/MAROON

main71075-20691-03iRT135..SED..LE198008-198108

FB-C,GRAY,GRAY

main71075-20691-06iRT135..SED..LE198008-198108

FB-C,LIGHT BROWN,BROWN

main71075-20692-02iRT135..SED..LE198108-198112

FB-C,DARK WINE,RED/MAROON

main71075-20692-03iRT135..SED..LE198108-198112

FB-C,GRAY,GRAY

main71075-20692-06iRT135..SED..LE198108-198112

FB-C,LIGHT BROWN,BROWN

main71075-20740-01iRT134..LB..DLX..USA197809-198008

PF,BLACK,BLACK

main71075-20740-02iRT134..LB..DLX..USA197809-198008

PF,DARK WINE,RED/MAROON

main71075-20740-05iRT134..LB..DLX..USA197809-198008

PF,BEIGE,BEIGE

main71075-20750-01iRT134..LB..CND197809-198008

FB-A,BLACK,BLACK

main71075-20750-02iRT134..LB..CND197809-198008

FB-A,DARK WINE,RED/MAROON

main71075-20750-05iRT134..LB..CND197809-198008

FB-A,BEIGE,BEIGE

main71075-20800-01iRT134..LB..LE197809-198008

FB-C,BLACK,BLACK

main71075-20800-02iRT134..LB..LE197809-198008

FB-C,DARK WINE,RED/MAROON

main71075-20800-05iRT134..LB..LE197809-198008

FB-C,BEIGE,BEIGE

main71075-20801-02iRT135..LB198008-198108

FB-C,DARK WINE,RED/MAROON

main71075-20801-03iRT135..LB198008-198108

FB-C,GRAY,GRAY

main71075-20801-06iRT135..LB198008-198108

FB-C,LIGHT BROWN,BROWN

main71075-20802-02iRT135..LB198108-198112

FB-C,DARK WINE,RED/MAROON

main71075-20802-03iRT135..LB198108-198112

FB-C,GRAY,GRAY

main71075-20802-06iRT135..LB198108-198112

FB-C,LIGHT BROWN,BROWN

main71075-91276-01iRT134..WG..CND197809-198008

FB-A,BLACK,BLACK

main71075-91276-02iRT134..WG..CND197809-198008

FB-A,DARK WINE,RED/MAROON

main71075-91276-05iRT134..WG..CND197809-198008

FB-A,BEIGE,BEIGE

main71075-91277-01iRT134..WG..DLX..USA197809-198008

PF,BLACK,BLACK

main71075-91277-02iRT134..WG..DLX..USA197809-198008

PF,DARK WINE,RED/MAROON

main71075-91277-05iRT134..WG..DLX..USA197809-198008

PF,BEIGE,BEIGE

main71075-91280-01iRT134..WG..LE197809-198008

FB-C,BLACK,BLACK

main71075-91280-02iRT134..WG..LE197809-198008

FB-C,DARK WINE,RED/MAROON

main71075-91280-05iRT134..WG..LE197809-197908

FB-C,BEIGE,BEIGE

main71075-91281-05iRT134..WG..LE197908-198008

SSV,BEIGE,BEIGE

main71075-91284-01iRT135..WG198008-198112

PF,BLACK,BLACK

main71075-91284-02iRT135..WG198008-198112

PF,DARK WINE,RED/MAROON

main71075-91284-06iRT135..WG198008-198112

PF,LIGHT BROWN,BROWN

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-20600-01iRT134..SED..DLX..USA197809-198008

PF,BLACK,BLACK

main71077-20600-02iRT134..SED..DLX..USA197809-198008

PF,DARK WINE,RED/MAROON

main71077-20600-05iRT134..SED..DLX..USA197809-198008

PF,BEIGE,BEIGE

main71077-20601-01iRT135..SED..DLX198008-198112

PF,BLACK,BLACK

main71077-20601-02iRT135..SED..DLX198008-198112

PF,DARK WINE,RED/MAROON

main71077-20601-06iRT135..SED..DLX198008-198112

PF,LIGHT BROWN,BROWN

main71077-20610-01iRT134..SED..CND197809-198008

FB-A,BLACK,BLACK

main71077-20610-02iRT134..SED..CND197809-198008

FB-A,DARK WINE,RED/MAROON

main71077-20610-05iRT134..SED..CND197809-198008

FB-A,BEIGE,BEIGE

main71077-20660-01iRT134..SED..LE197809-198008

FB-C,BLACK,BLACK

main71077-20660-02iRT134..SED..LE197809-198008

FB-C,DARK WINE,RED/MAROON

main71077-20660-05iRT134..SED..LE197809-198008

FB-C,BEIGE,BEIGE

main71077-20661-02iRT135..SED..LE198008-198108

FB-C,DARK WINE,RED/MAROON

main71077-20661-03iRT135..SED..LE198008-198108

FB-C,GRAY,GRAY

main71077-20661-06iRT135..SED..LE198008-198108

FB-C,LIGHT BROWN,BROWN

main71077-20662-02iRT135..SED..LE198108-198112

FB-C,DARK WINE,RED/MAROON

main71077-20662-03iRT135..SED..LE198108-198112

FB-C,GRAY,GRAY

main71077-20662-06iRT135..SED..LE198108-198112

FB-C,LIGHT BROWN,BROWN

main71077-91273-01iRT134..WG..CND197809-198008

FB-A,BLACK,BLACK

main71077-91273-02iRT134..WG..CND197809-198008

FB-A,DARK WINE,RED/MAROON

main71077-91273-05iRT134..WG..CND197809-198008

FB-A,BEIGE,BEIGE

main71077-91274-01iRT134..WG..DLX..USA197809-198008

PF,BLACK,BLACK

main71077-91274-02iRT134..WG..DLX..USA197809-198008

PF,DARK WINE,RED/MAROON

main71077-91274-05iRT134..WG..DLX..USA197809-198008

PF,BEIGE,BEIGE

main71077-91277-01iRT134..WG..LE197809-198008

FB-C,BLACK,BLACK

main71077-91277-02iRT134..WG..LE197809-198008

FB-C,DARK WINE,RED/MAROON

main71077-91277-05iRT134..WG..LE197809-197908

FB-C,BEIGE,BEIGE

main71077-91278-05iRT134..WG..LE197908-198008

SSV,BEIGE,BEIGE

main71077-91281-01iRT135..WG198008-198112

PF,BLACK,BLACK

main71077-91281-02iRT135..WG198008-198112

PF,DARK WINE,RED/MAROON

main71077-91281-06iRT135..WG198008-198112

PF,LIGHT BROWN,BROWN

71078COVER SUB-ASSY, REAR SEAT CENTER ARMREST

main72087-20020-01iRT134..SED..LE197809-198008

BLACK,BLACK

main72087-20020-02iRT134..SED..LE197809-198008

DARK WINE,RED/MAROON

main72087-20020-05iRT134..SED..LE197809-198008

BEIGE,BEIGE

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-20680-01iRT134..SED..DLX..USA197809-198008

PF,BLACK,BLACK

main71460-20680-02iRT134..SED..DLX..USA197809-198008

PF,DARK WINE,RED/MAROON

main71460-20680-05iRT134..SED..DLX..USA197809-198008

PF,BEIGE,BEIGE

main71460-20681-01iRT135..SED..DLX198008-198112

PF,BLACK,BLACK

main71460-20681-02iRT135..SED..DLX198008-198112

PF,DARK WINE,RED/MAROON

main71460-20681-06iRT135..SED..DLX198008-198112

PF,LIGHT BROWN,BROWN

main71460-20710-01iRT134..SED..CND197809-198008

FB-A,BLACK,BLACK

main71460-20710-02iRT134..SED..CND197809-198008

FB-A,DARK WINE,RED/MAROON

main71460-20710-05iRT134..SED..CND197809-198008

FB-A,BEIGE,BEIGE

main71460-20760-01iRT134..SED..LE197809-198008

FB-C,BLACK,BLACK

main71460-20760-02iRT134..SED..LE197809-198008

FB-C,DARK WINE,RED/MAROON

main71460-20760-05iRT134..SED..LE197809-198008

FB-C,BEIGE,BEIGE

main71460-20761-02iRT135..SED..LE198008-198108

FB-C,DARK WINE,RED/MAROON

main71460-20761-03iRT135..SED..LE198008-198108

FB-C,GRAY,GRAY

main71460-20761-06iRT135..SED..LE198008-198108

FB-C,LIGHT BROWN,BROWN

main71460-20762-02iRT135..SED..LE198108-198112

FB-C,DARK WINE,RED/MAROON

main71460-20762-03iRT135..SED..LE198108-198112

FB-C,GRAY,GRAY

main71460-20762-06iRT135..SED..LE198108-198112

FB-C,LIGHT BROWN,BROWN

main71460-20820-01iRT134..LB..DLX..USA197809-198008

PF,BLACK,BLACK

main71460-20820-02iRT134..LB..DLX..USA197809-198008

PF,DARK WINE,RED/MAROON

main71460-20820-05iRT134..LB..DLX..USA197809-198008

PF,BEIGE,BEIGE

main71460-20830-01iRT134..LB..CND197809-198008

FB-A,BLACK,BLACK

main71460-20830-02iRT134..LB..CND197809-198008

FB-A,DARK WINE,RED/MAROON

main71460-20830-05iRT134..LB..CND197809-198008

FB-A,BEIGE,BEIGE

main71460-20880-01iRT134..LB..LE197809-198008

FB-C,BLACK,BLACK

main71460-20880-02iRT134..LB..LE197809-198008

FB-C,DARK WINE,RED/MAROON

main71460-20880-05iRT134..LB..LE197809-198008

FB-C,BEIGE,BEIGE

main71460-20881-02iRT135..LB198008-198108

FB-C,DARK WINE,RED/MAROON

main71460-20881-03iRT135..LB198008-198108

FB-C,GRAY,GRAY

main71460-20881-06iRT135..LB198008-198108

FB-C,LIGHT BROWN,BROWN

main71460-20882-02iRT135..LB198108-198112

FB-C,DARK WINE,RED/MAROON

main71460-20882-03iRT135..LB198108-198112

FB-C,GRAY,GRAY

main71460-20882-06iRT135..LB198108-198112

FB-C,LIGHT BROWN,BROWN

main71460-91286-01iRT134..WG..CND197809-198008

FB-A,BLACK,BLACK

main71460-91286-02iRT134..WG..CND197809-198008

FB-A,DARK WINE,RED/MAROON

main71460-91286-05iRT134..WG..CND197809-198008

FB-A,BEIGE,BEIGE

main71460-91287-01iRT134..WG..DLX..USA197809-198008

PF,BLACK,BLACK

main71460-91287-02iRT134..WG..DLX..USA197809-198008

PF,DARK WINE,RED/MAROON

main71460-91287-05iRT134..WG..DLX..USA197809-198008

PF,BEIGE,BEIGE

main71460-91802-01iRT134..WG..LE197809-198008

FB-C,BLACK,BLACK

main71460-91802-02iRT134..WG..LE197809-198008

FB-C,DARK WINE,RED/MAROON

main71460-91802-05iRT134..WG..LE197809-197908

FB-C,BEIGE,BEIGE

main71460-91806-05iRT134..WG..LE197908-198008

SSV,BEIGE,BEIGE

main71460-91809-01iRT135..WG198008-198112

PF,BLACK,BLACK

main71460-91809-02iRT135..WG198008-198112

PF,DARK WINE,RED/MAROON

main71460-91809-06iRT135..WG198008-198112

PF,LIGHT BROWN,BROWN

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-20680-01iRT134..SED..DLX..USA197809-198008

PF,BLACK,BLACK

main71480-20680-02iRT134..SED..DLX..USA197809-198008

PF,DARK WINE,RED/MAROON

main71480-20680-05iRT134..SED..DLX..USA197809-198008

PF,BEIGE,BEIGE

main71480-20681-01iRT135..SED..DLX198008-198112

PF,BLACK,BLACK

main71480-20681-02iRT135..SED..DLX198008-198112

PF,DARK WINE,RED/MAROON

main71480-20681-06iRT135..SED..DLX198008-198112

PF,LIGHT BROWN,BROWN

main71480-20710-01iRT134..SED..CND197809-198008

FB-A,BLACK,BLACK

main71480-20710-02iRT134..SED..CND197809-198008

FB-A,DARK WINE,RED/MAROON

main71480-20710-05iRT134..SED..CND197809-198008

FB-A,BEIGE,BEIGE

main71480-20760-01iRT134..SED..LE197809-198008

FB-C,BLACK,BLACK

main71480-20760-02iRT134..SED..LE197809-198008

FB-C,DARK WINE,RED/MAROON

main71480-20760-05iRT134..SED..LE197809-198008

FB-C,BEIGE,BEIGE

main71480-20761-02iRT135..SED..LE198008-198108

FB-C,DARK WINE,RED/MAROON

main71480-20761-03iRT135..SED..LE198008-198108

FB-C,GRAY,GRAY

main71480-20761-06iRT135..SED..LE198008-198108

FB-C,LIGHT BROWN,BROWN

main71480-20762-02iRT135..SED..LE198108-198112

FB-C,DARK WINE,RED/MAROON

main71480-20762-03iRT135..SED..LE198108-198112

FB-C,GRAY,GRAY

main71480-20762-06iRT135..SED..LE198108-198112

FB-C,LIGHT BROWN,BROWN

main71480-91286-01iRT134..WG..CND197809-198008

FB-A,BLACK,BLACK

main71480-91286-02iRT134..WG..CND197809-198008

FB-A,DARK WINE,RED/MAROON

main71480-91286-05iRT134..WG..CND197809-198008

FB-A,BEIGE,BEIGE

main71480-91287-01iRT134..WG..DLX..USA197809-198008

PF,BLACK,BLACK

main71480-91287-02iRT134..WG..DLX..USA197809-198008

PF,DARK WINE,RED/MAROON

main71480-91287-05iRT134..WG..DLX..USA197809-198008

PF,BEIGE,BEIGE

main71480-91801-01iRT134..WG..LE197809-198008

FB-C,BLACK,BLACK

main71480-91801-02iRT134..WG..LE197809-198008

FB-C,DARK WINE,RED/MAROON

main71480-91801-05iRT134..WG..LE197809-197908

FB-C,BEIGE,BEIGE

main71480-91805-05iRT134..WG..LE197908-198008

SSV,BEIGE,BEIGE

main71480-91808-01iRT135..WG198008-198112

PF,BLACK,BLACK

main71480-91808-02iRT135..WG198008-198112

PF,DARK WINE,RED/MAROON

main71480-91808-06iRT135..WG198008-198112

PF,LIGHT BROWN,BROWN

72693HOOK, REAR SEAT CUSHION LOCK

main72693-14020×2iRT13#..LB,SED197809-198112

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-20020-01iRT134..SED..LE197809-198008

BLACK,BLACK

main72830-20020-02iRT134..SED..LE197809-198008

DARK WINE,RED/MAROON

main72830-20020-05iRT134..SED..LE197809-198008

BEIGE,BEIGE

main72830-20040-02iRT135..SED..LE198008-198108

DARK WINE,RED/MAROON

main72830-20040-03iRT135..SED..LE198008-198108

GRAY,GRAY

main72830-20040-06iRT135..SED..LE198008-198108

LIGHT BROWN,BROWN

main72830-20060-02iRT135..SED..LE198108-198112

DARK WINE,RED/MAROON

main72830-20060-03iRT135..SED..LE198108-198112

GRAY,GRAY

main72830-20060-06iRT135..SED..LE198108-198112

LIGHT BROWN,BROWN

9011908160

main90119-08160

8 parts on this diagram · 7 diagrams in section
