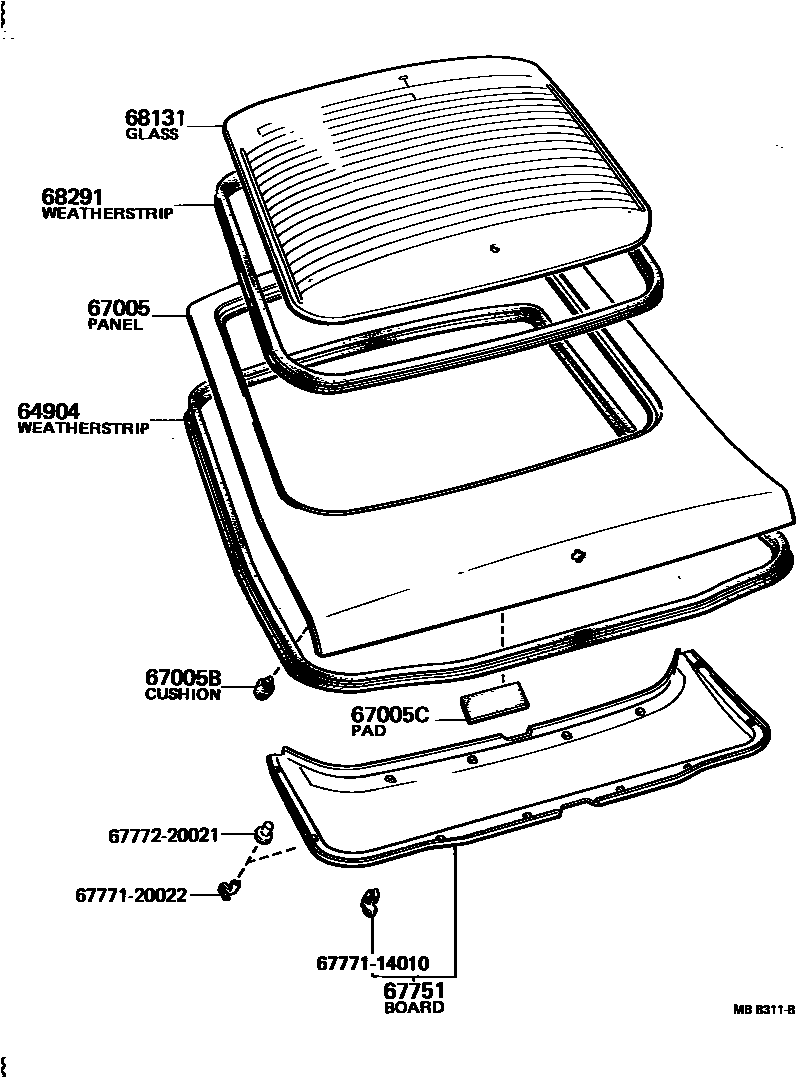

BACK DOOR PANEL & GLASS
64904WEATHERSTRIP SUB-ASSY, BACK DOOR
67005PANEL SUB-ASSY, BACK DOOR
W/RR WIPER
W/RR WIPER
W/RR WIPER
W/RR WIPER
67005BCUSHION(FOR BACK DOOR PANEL)
67005CPAD, REAR WINDOW WIPER MOTOR, SILENSER
67751BOARD, BACK DOOR TRIM
W/RR WIPER,BLACK,BLACK
W/RR WIPER,DARK WINE,RED/MAROON
W/RR WIPER,BEIGE,BEIGE
W/RR WIPER,LIGHT BROWN,BROWN
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
LIGHT BROWN,BROWN
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
LIGHT BROWN,BROWN
68131GLASS, BACK DOOR
*EHTT,T=4.0,COLD SPEC
*EHTT,T=4.0,W/RR WIPER
*EHTT,T=4.0,COLD SPEC
*EHTT,W/RR WIPER,COLD SPEC
*TT,T=4.0
*TT,T=4.0
68291WEATHERSTRIP, BACK DOOR GLASS
6777114010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-14010
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20021
10 parts on this diagram · 2 diagrams in section
