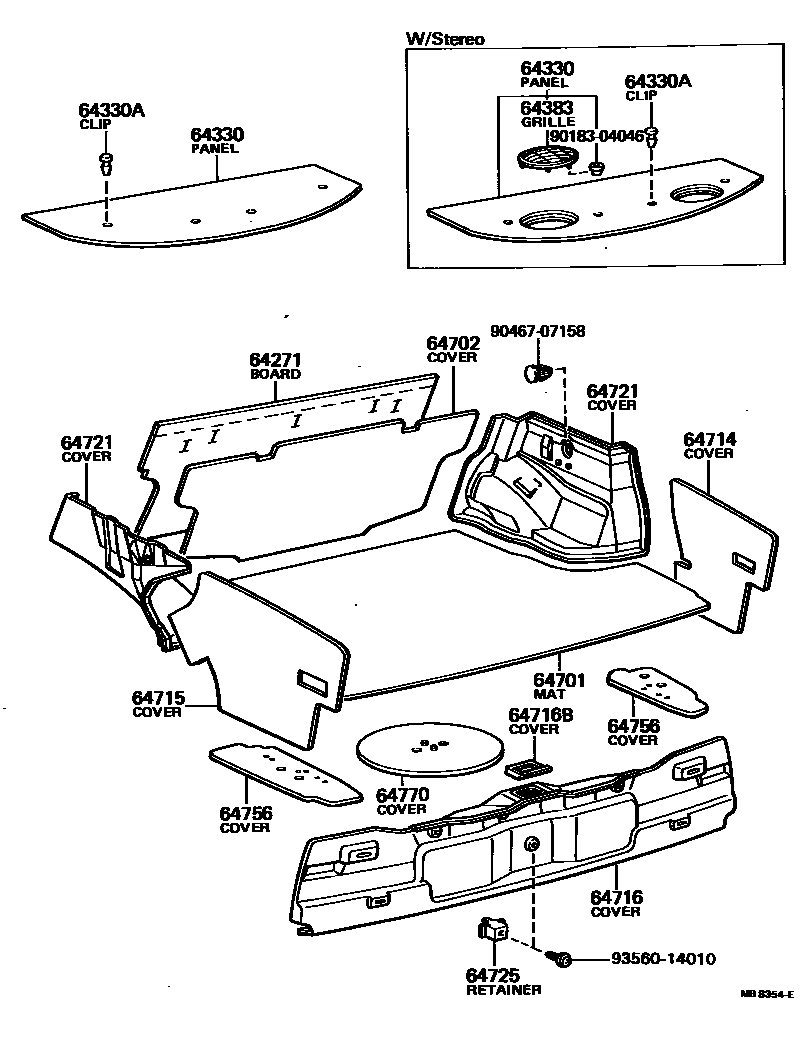

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

64271BOARD, ROOM PARTITION, NO.1

main64270-20040iRT135..SED..LE198008-198112

main64271-20100iRT134..SED197809-198008

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20240-01iRT134..SED..DLX197809-197911

BLACK,BLACK

main64330-20240-02iRT134..SED..DLX197809-197911

DARK WINE,RED/MAROON

main64330-20240-05iRT134..SED..DLX197809-197911

BEIGE,BEIGE

main64330-20250-01iRT134..SED..DLX197809-197911

W/STEREO,BLACK,BLACK

main64330-20250-02iRT134..SED..DLX197809-197911

W/STEREO,DARK WINE,RED/MAROON

main64330-20250-05iRT134..SED..DLX197809-197911

W/STEREO,BEIGE,BEIGE

main64330-20260-01iRT13#..SED..LE197809-198112

BLACK,BLACK

main64330-20260-02iRT13#..SED..LE197809-198112

DARK WINE,RED/MAROON

main64330-20260-05iRT134..SED..LE197809-198008

BEIGE,BEIGE

main64330-20260-06iRT135..SED..LE198008-198112

LIGHT BROWN,BROWN

main64330-20270-01iRT13#..SED..LE197809-198112

W/STEREO,BLACK,BLACK

main64330-20270-02iRT13#..SED..LE197809-198112

W/STEREO,DARK WINE,RED/MAROON

main64330-20270-05iRT134..SED..LE197809-198008

W/STEREO,BEIGE,BEIGE

main64330-20270-06iRT135..SED..LE198008-198112

W/STEREO,LIGHT BROWN,BROWN

main64330-20300-01iRT13#..SED..DLX197911-198112

BLACK,BLACK

main64330-20300-02iRT13#..SED..DLX197911-198112

DARK WINE,RED/MAROON

main64330-20300-05iRT134..SED..DLX197911-198008

BEIGE,BEIGE

main64330-20300-06iRT135..SED..DLX198008-198112

LIGHT BROWN,BROWN

main64330-20310-01iRT13#..SED..DLX197911-198112

W/STEREO,BLACK,BLACK

main64330-20310-02iRT13#..SED..DLX197911-198112

W/STEREO,DARK WINE,RED/MAROON

main64330-20310-05iRT134..SED..DLX197911-198008

W/STEREO,BEIGE,BEIGE

main64330-20310-06iRT135..SED..DLX198008-198112

W/STEREO,LIGHT BROWN,BROWN

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-09065-01×4iRT135..SED198008-198112

BLACK,BLACK

main90467-09065-02×4iRT134..SED..LE197809-198008

DARK WINE,DARK WINE

main90467-09065-05iRT134..SED..LE197809-198008

BEIGE,BEIGE

main90467-09065-26×4iRT135..SED198008-198112

LIGHT BROWN,BROWN

main90467-09144-01×4iRT134..SED..DLX197809-198008

BLACK,BLACK

main90467-09144-02×4iRT134..SED..DLX197809-198008

DARK WINE,RED/MAROON

main90467-09144-05×4iRT134..SED..DLX197809-198008

BEIGE,BEIGE

64383GRILLE, SPEAKER, REAR

main64383-22011-01×2iRT13#..SED197809-198112

BLACK,BLACK

main64383-22011-02×2iRT13#..SED197809-198112

DARK WINE,RED/MAROON

main64383-22011-05×2iRT134..SED197809-198008

BEIGE,BEIGE

main64383-22011-06×2iRT135..SED198008-198112

LIGHT BROWN,BROWN

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-20150iRT13#..SED..LPB197809-198108

main64711-20160iRT135..SED..LE198108-198112

64702COVER SUB-ASSY, LUGGAGE COMPARTMENT, FRONT

main64717-20050iRT134..SED197809-198008

main64717-20060iRT135..SED..LE198008-198112

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-20120iRT13#..SED197809-198112

64715COVER, LUGGAGE COMPARTMENT, LH

main64715-20120iRT13#..SED197809-198112

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-20040iRT134..SED..LE197809-198006

main64716-20041iRT13#..SED..LE198006-198112

64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-14030iRT135..SED..DLX198108-198112

main64749-20020iRT13#..SED..DLX197809-198108

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-20030iRT13#..SED197809-198112

RH

main64722-20010iRT13#..SED197809-198112

LH

64725RETAINER, LUGGAGE COMPARTMENT COVER, NO.1

main64725-30070×4iRT13#..SED..LE197809-198112

64756COVER, LUGGAGE COMPARTMENT SIDE

main58703-20020iRT13#..SED197809-198112

RH

main58704-20010iRT13#..SED197809-198112

LH

64770COVER ASSY, SPARE WHEEL

main64770-14010iRT134..SED197809-198008

main64771-14030iRT135..SED198008-198112

9018304046

main90183-04046

9046707158

main90467-07158

9356014010

main93560-14010

17 parts on this diagram · 1 diagram in section
