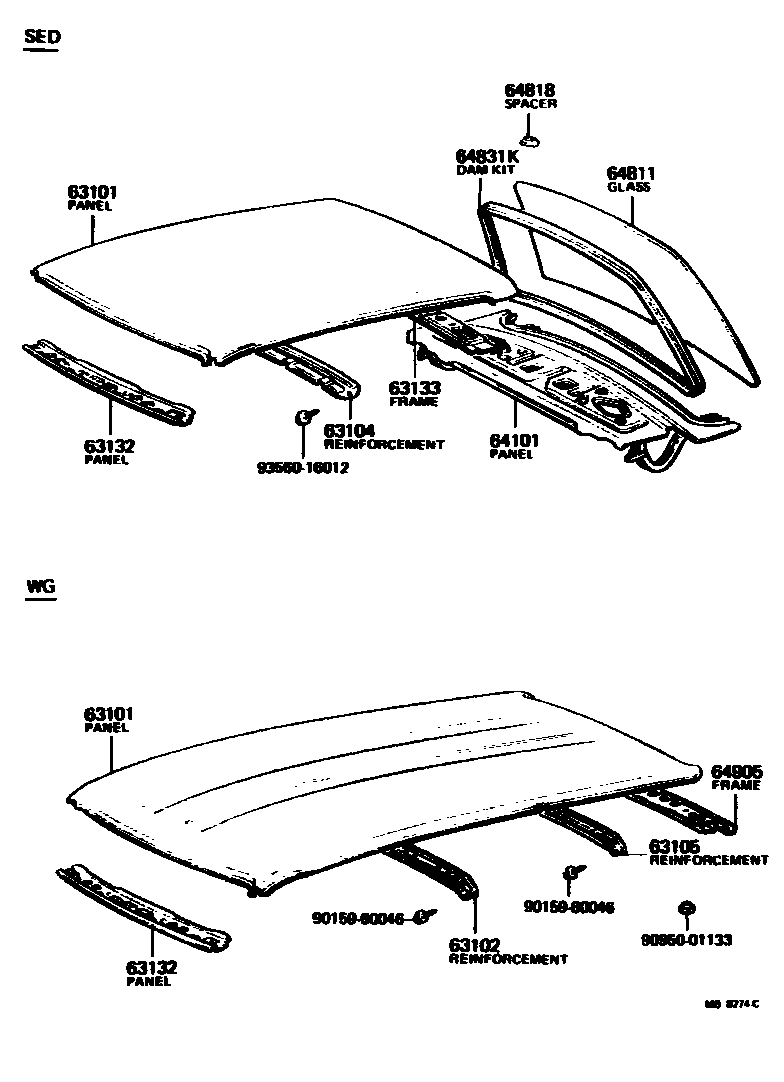

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

63101PANEL SUB-ASSY, ROOF

main63111-20090iRT13#..SED197809-198112

main63111-20100iRT13#..LB197809-198112

main63111-20110iRT135..LB198008-198112

W/SUN ROOF

main63111-91256iRT13#..WG197809-198112

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63141-91255iRT13#..WG197809-198112

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-20010iRT13#..SED197809-198112

main63141-20020iRT13#..LB197809-198112

main63142-20010iRT135..LB198008-198112

W/SUN ROOF

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63142-91255iRT13#..WG197809-198112

63132PANEL, WINDSHIELD HEADER, INNER

main63102-20010iRT13#..SED,WG197809-198112

main63102-20030iRT13#..LB197809-198112

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-20020iRT13#..LB197809-198112

main63133-20070iRT13#..SED197809-198112

64101PANEL SUB-ASSY, UPPER BACK

main64101-20120iRT13#..SED197809-198108

main64101-20150iRT135..SED198108-198112

64811GLASS, BACK WINDOW

main64811-20320iRT13#..SED..USA197809-198112

*TT,T=4.0

main64811-20350iRT13#..SED197809-198112

*EHTT,T=4.0

64818SPACER, BACK WINDOW GLASS

main64818-20010×2iRT13#..SED197809-198112

64831KDAM KIT, BACK WINDOW GLASS

main04562-14010iRT13#..SED197809-198112

64905FRAME SUB-ASSY, BACK UPPER

main63105-91258iRT13#..WG197809-198112

9015960046

main90159-60046

9095001133

main90950-01133

9356016012

main93560-16012

14 parts on this diagram · 3 diagrams in section
