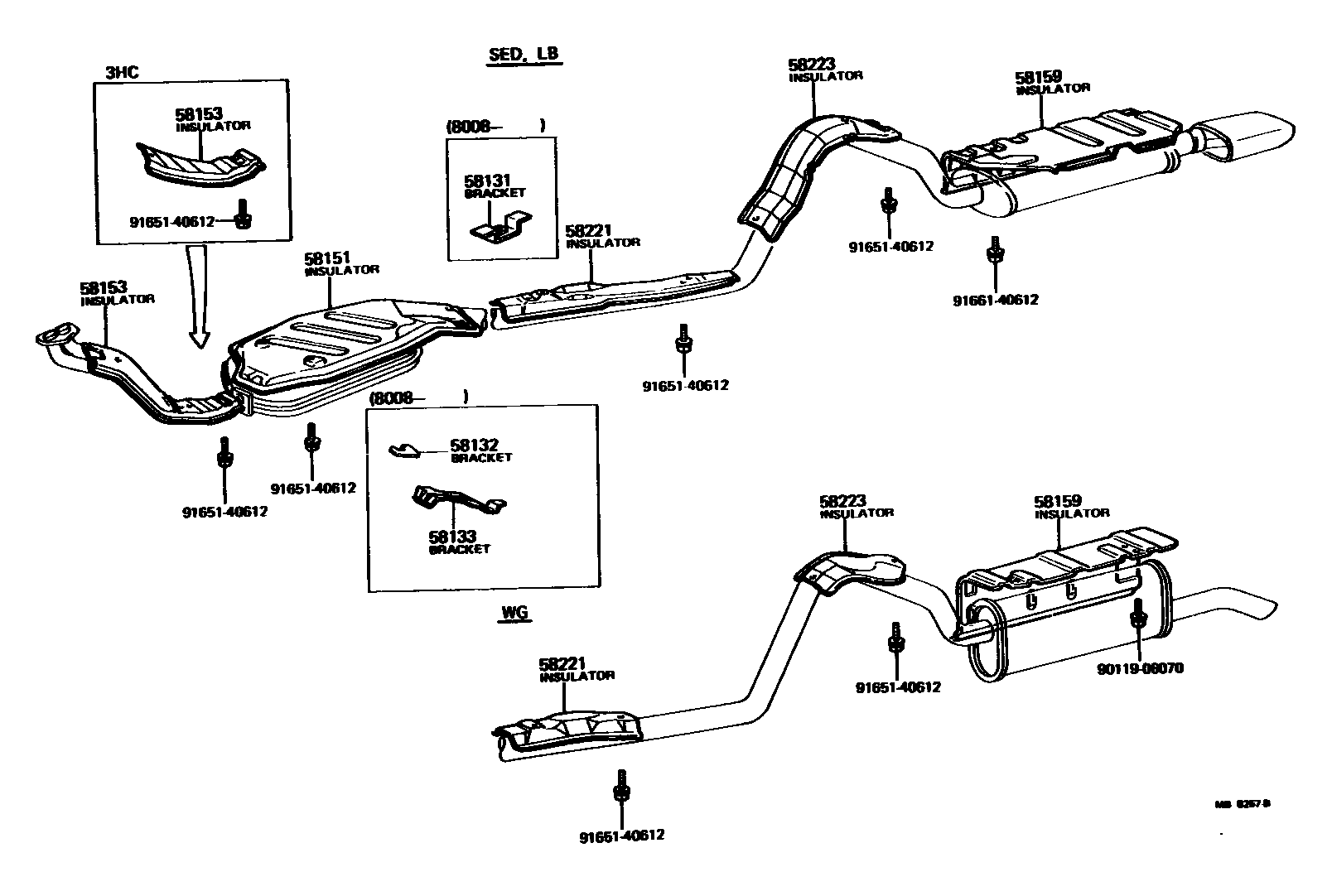

FLOOR INSULATOR

0001 1 0003 1

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-12020×4iRT135198008-198112

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58132-14050iRT135198008-198112

58133BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3

main58135-20010iRT135198008-198112

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-14050iRT135198008-198112

main58041-14051iRT134..USA197907-197912

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-14011iRT13#..3FC,4F,4FC,5F197809-198112

main58153-20020iRT134..3HC197809-198008

58159INSULATOR, MAIN MAFFLAR HEAT

main58031-21011iRT13#..WG197809-198112

main58327-14020iRT13#..LB,SED197809-198112

58221INSULATOR, CENTER FLOOR HEAT, NO.1

main58221-14040iRT135..LB,SED198105-198112

main58221-20080iRT134..(LB,SED)..USA197809-198008

main58221-91256iRT135..WG198008-198112

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-14030iRT134..(LB,SED)..USA197809-198008

main58223-91255iRT134..WG..USA197809-198008

9011906070

main90119-06070

9165140612

main91651-40612

9166140612

main91661-40612

11 parts on this diagram · 2 diagrams in section
