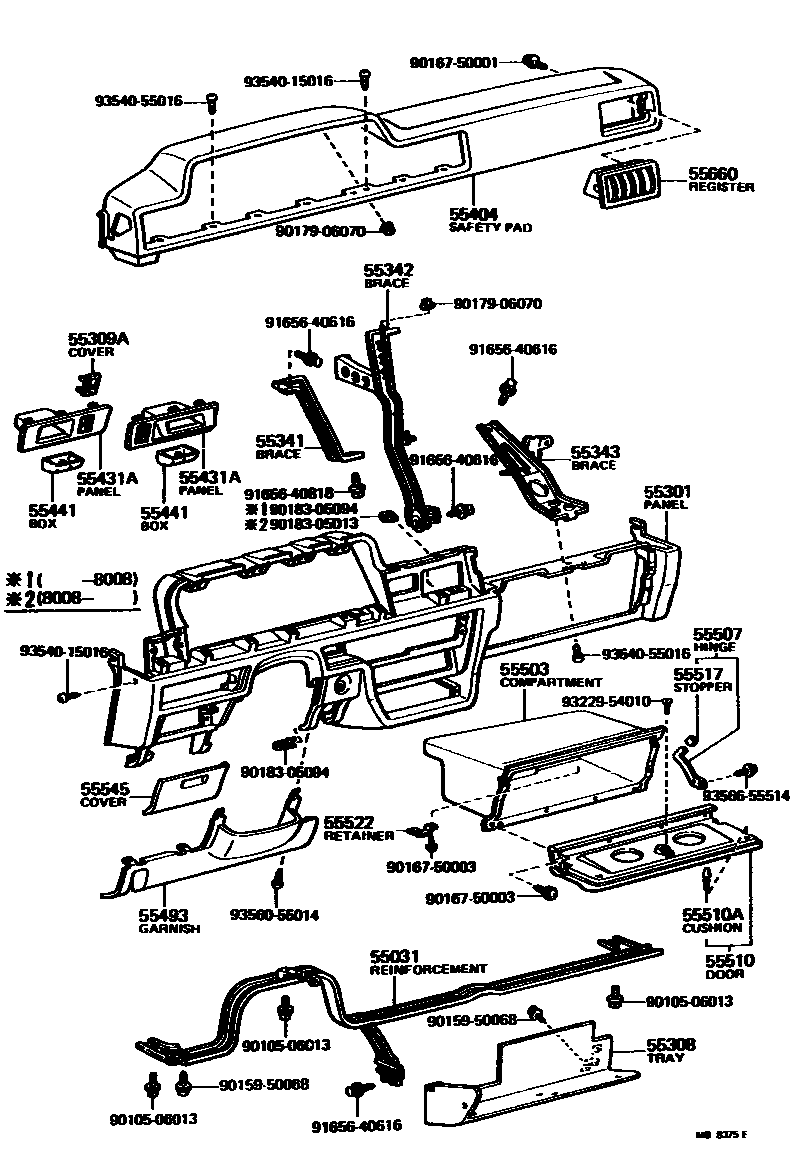

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55031REINFORCEMENT, INSTRUMENT PANEL, NO.1

main55305-20080iRT13#..LPB197809-198112

main55305-20090iRT134..WPB198001-198003

55301PANEL SUB-ASSY, INSTRUMENT

main55311-20110-01iRT134..LPB197809-198007

BLACK,BLACK

main55311-20110-02iRT134..LPB197809-198007

DARK WINE,RED/MAROON

main55311-20110-05iRT134..LPB197809-198007

BEIGE,BEIGE

main55311-20111-01iRT13#198007-198112

BLACK,BLACK

main55311-20111-02iRT13#198007-198112

DARK WINE,RED/MAROON

main55311-20111-05iRT134198007-198008

BEIGE,BEIGE

main55311-20111-06iRT135198008-198112

LIGHT BROWN,BROWN

main55311-20120iRT134..WPB198001-198003

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-20020-01iRT13#..LPB197809-198112

BLACK,BLACK

main55601-20020-02iRT13#..LPB197809-198112

DARK WINE,RED/MAROON

main55601-20020-05iRT134..LPB197809-198008

BEIGE,BEIGE

main55601-20020-06iRT135198008-198112

LIGHT BROWN,BROWN

55309ACOVER, BASE SWITCH HOLE, NO.1

main55384-20011×2iRT13#..LPB197809-198112

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-20010iRT134..WPB198001-198003

main55341-20060iRT13#..LPB197809-198112

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-20040iRT13#..LPB197809-198112

main55307-20050iRT134..WPB198001-198003

55343BRACE, INSTRUMENT PANEL, NO.3

main55308-20110iRT13#..LPB197809-198112

main55378-20040iRT134..WPB198001-198003

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-20370-01iRT134197809-198008

BLACK,BLACK

main55401-20370-02iRT134197809-198008

DARK WINE,RED/MAROON

main55401-20370-05iRT134197809-198008

BEIGE,BEIGE

main55401-20390-01iRT135198008-198112

BLACK,BLACK

main55401-20390-02iRT135198008-198112

DARK WINE,RED/MAROON

main55401-20390-06iRT135198008-198112

LIGHT BROWN,BROWN

55431APANEL, INSTRUMENT PANEL FINISH

main55431-20070iRT134..DLX197809-198008

main55431-20090iRT134..LE..LPB197809-198008

main55431-20140-01iRT135..DLX198008-198112

BLACK,BLACK

main55431-20140-02iRT135..DLX198008-198112

DARK WINE,RED/MAROON

main55431-20140-06iRT135..DLX198008-198112

DARK BROWN,BROWN

main55431-20150iRT135..LE198008-198112

55441BOX, INSTRUMENT PANEL

main55441-20120iRT13#..LPB197809-198112

55493GARNISH OR SAFETY PAD, LOWER, LH

main55432-20090-01iRT134..(3FC,4F,5F)..LPB197809-198006

BLACK,BLACK

main55432-20090-02iRT134..(3FC,4F,5F)..LPB197809-198006

DARK WINE,RED/MAROON

main55432-20090-05iRT134..(3FC,4F,5F)..LPB197809-198006

BEIGE,BEIGE

main55432-20091-01iRT13#..3FC,4F,4FC,5F198006-198112

BLACK,BLACK

main55432-20091-02iRT13#..3FC,4F,4FC,5F198006-198112

DARK WINE,RED/MAROON

main55432-20091-05iRT134..3FC,4F,5F198006-198008

BEIGE,BEIGE

main55432-20091-06iRT135198008-198112

LIGHT BROWN,BROWN

main55432-20100-01iRT134..3HC197809-198008

BLACK,BLACK

main55432-20100-02iRT134..3HC197809-198008

DARK WINE,RED/MAROON

main55432-20100-05iRT134..3HC197809-198008

BEIGE,BEIGE

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-20040iRT13#..LPB197809-198112

main55581-20050iRT134..WPB198001-198003

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55556-20030iRT13#..LPB197809-198112

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-20040-01iRT13#..LPB197809-198112

BLACK,BLACK

main55550-20040-02iRT13#..LPB197809-198112

DARK WINE,RED/MAROON

main55550-20040-05iRT134..LPB197809-198008

BEIGE,BEIGE

main55550-20040-06iRT135198008-198112

LIGHT BROWN,BROWN

main55550-20050iRT134..WPB198001-198003

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×2iRT13#197809-198112

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iRT13#197809-198112

55522RETAINER, GLOVE COMPARTMENT MALE

main55561-12010iRT13#..LPB197809-198112

main55590-20010iRT134..WPB198001-198003

55545COVER, FUSE BOX OPENING

main55540-20020-01iRT134197809-197904

BLACK,BLACK

main55540-20020-02iRT134197809-197904

DARK WINE,RED/MAROON

main55540-20020-05iRT134197809-197904

BEIGE,BEIGE

main55540-20021-01iRT134..LPB197904-198008

BLACK,BLACK

main55540-20021-02iRT134..LPB197904-198008

DARK WINE,RED/MAROON

main55540-20021-05iRT134..LPB197904-198008

BEIGE,BEIGE

main55540-20030iRT134..WPB198001-198003

main55540-20050-01iRT135198008-198112

BLACK,BLACK

main55540-20050-02iRT135198008-198112

DARK WINE,RED/MAROON

main55540-20050-06iRT135198008-198112

LIGHT BROWN,BROWN

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-20010iRT134..DLX197809-198008

main55650-20020iRT134..LE197809-198008

main55650-20060-01iRT135198008-198112

BLACK,BLACK

main55650-20060-02iRT135198008-198112

DARK WINE,RED/MAROON

main55650-20060-06iRT135198008-198112

DARK BROWN,BROWN

9010506013

main90105-06013

9015950068

main90159-50068

9016750001

main90167-50001

9016750003

main90167-50003

9017906070

main90179-06070

9018305013

main90183-05013

9018305094

main90183-05094

9165640616

main91656-40616

9165640818

main91656-40818

9322954010

main93229-54010

9354015016

main93540-15016

9354055016

main93540-55016

9356055014

main93560-55014

9356655514

main93566-55514

33 parts on this diagram · 4 diagrams in section
