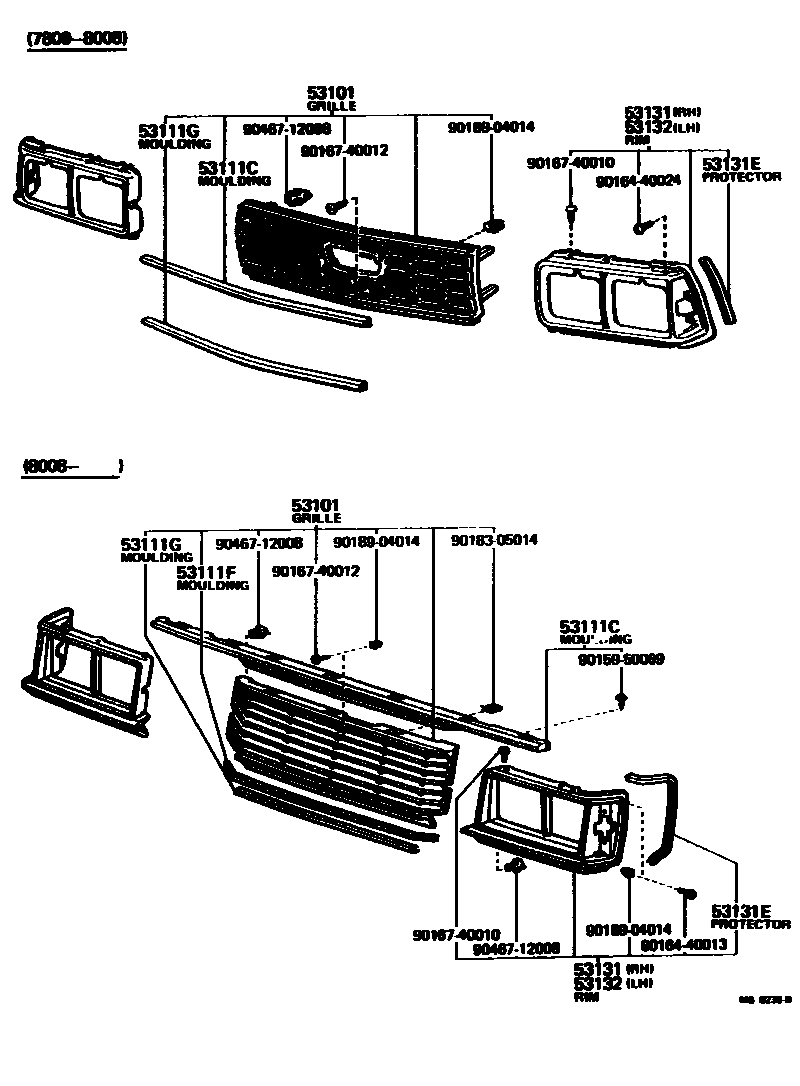

RADIATOR GRILLE

53101GRILLE SUB-ASSY, RADIATOR

main53101-29075iRT134197809-198008

main53101-29105iRT135198008-198112

53111CMOULDING, RADIATOR GRILLE, UPPER

main53121-20070iRT134197809-198008

main53121-29035iRT135198008-198112

53111FMOULDING, RADIATOR GRILLE, CENTER

main53122-20070iRT135198008-198112

53111GMOULDING, RADIATOR GRILLE, LOWER

main53122-20050iRT134197809-198008

main53123-20040iRT135198008-198112

53131RIM, HEADLAMP, RH

main53131-29125iRT134197809-198008

main53131-29185iRT135198008-198112

53131EPROTECTOR, HEADLAMP DOOR

main53139-20010×2iRT134197809-198008

main53139-20020×2iRT135198008-198112

53132RIM, HEADLAMP, LH

main53132-29105iRT134197809-198008

main53132-29165iRT135198008-198112

9015950069

main90159-50069

9016440013

main90164-40013

9016440024

main90164-40024

9016740010

main90167-40010

9016740012

main90167-40012

9018305014

main90183-05014

9018904014

main90189-04014

9046712008

main90467-12008

15 parts on this diagram · 1 diagram in section
