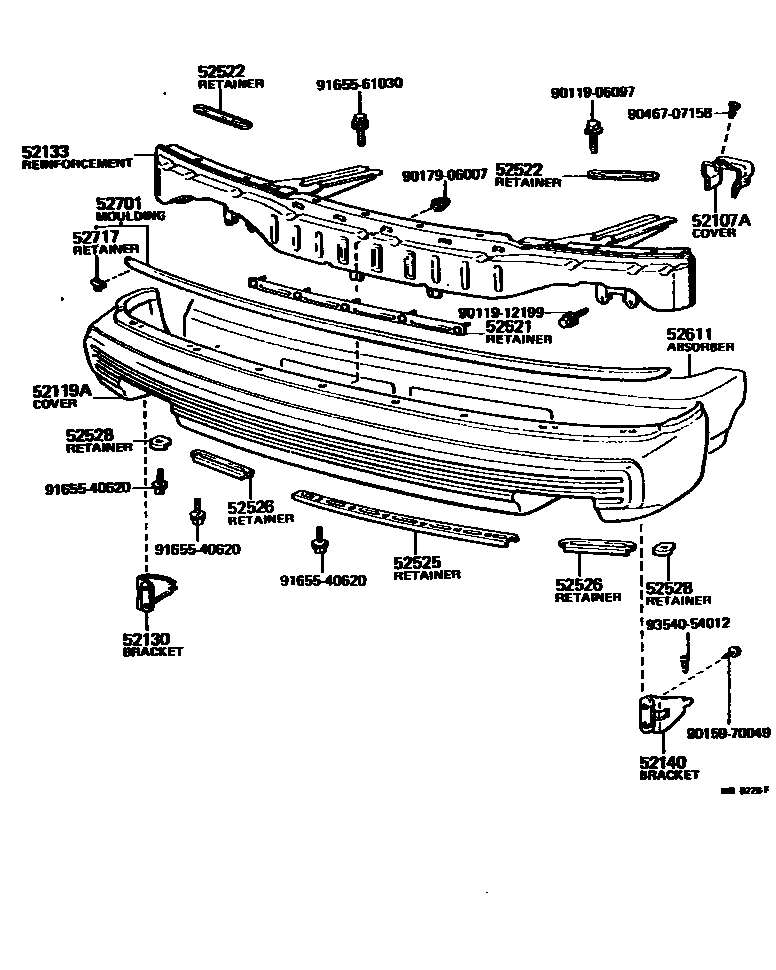

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52107ACOVER, FRONT BUMPER ARM HOLE

main53285-20010×2iRT13#197908-198112

52119ACOVER, FRONT BUMPER

main52119-20030iRT134..LPB197809-198008

main52119-20031iRT135198008-198112

main52119-20040-06iRT134..WPB198001-198003

BROWN

52130BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH

main52130-20020iRT134197809-198008

52133REINFORCEMENT, FRONT BUMPER

main52021-20030iRT134197809-198008

main52021-20031iRT135198008-198112

52140BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH

main52140-20020iRT134197809-198008

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-14020iRT134197809-198008

main52521-20010iRT135198008-198112

52522RETAINER, FRONT BUMPER UPPER SIDE

main52522-20010×2iRT134197809-198008

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-20010iRT134197809-198008

main52525-20011iRT135198008-198112

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-20010×2iRT134197809-198008

main52526-20011×2iRT135198008-198112

52528RETAINER, FRONT BUMPER, LOWER CORNER

main52528-20010×2iRT13#197809-198112

52611ABSORBER, FRONT BUMPER ENERGY

main52611-20010iRT134197809-198008

main52611-20011iRT135198008-198112

52701MOULDING SUB-ASSY, FRONT BUMPER

main52701-20010iRT134197809-198008

52717RETAINER, FRONT BUMPER MOULDING

main52717-20010×8iRT134198002-198008

9011906097

main90119-06097

9011912199

main90119-12199

9015970049

main90159-70049

9017906007

main90179-06007

9046707158

main90467-07158

9165540620

main91655-40620

9165561030

main91655-61030

9354054012

main93540-54012

21 parts on this diagram · 2 diagrams in section
