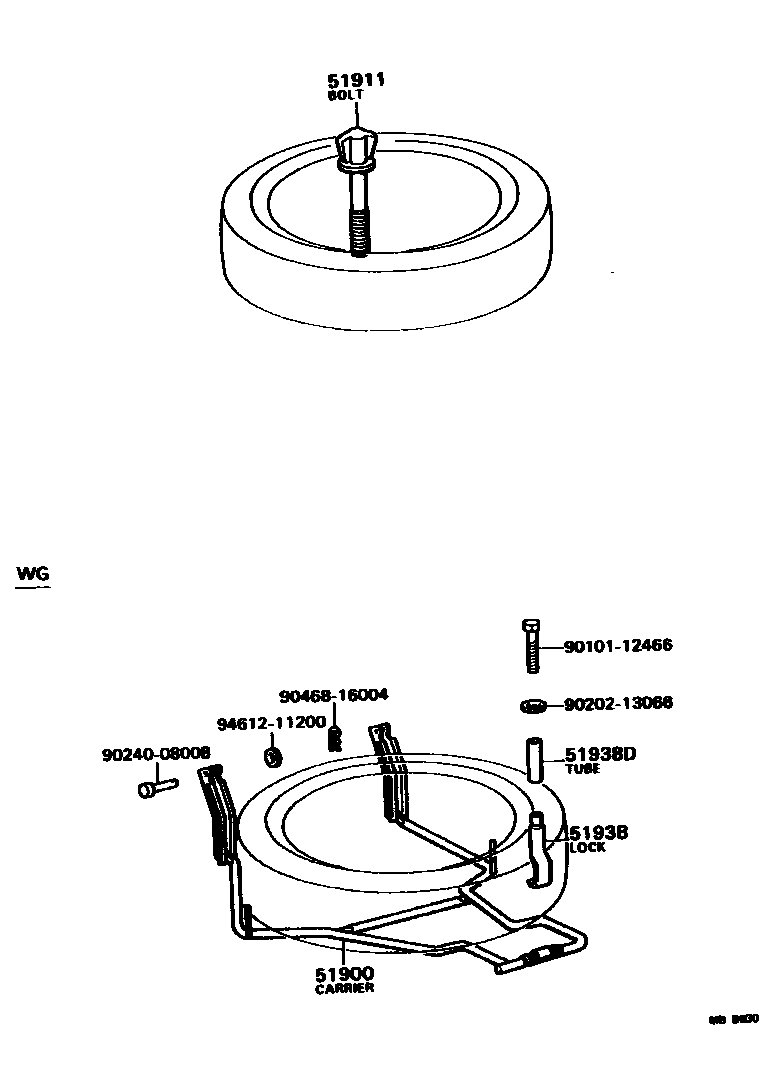

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-91257iRT134..WG197809-198008

main51900-91261iRT135..WG198008-198112

51911BOLT ASSY, SPARE WHEEL MOUNTING

main51910-14040iRT13#..LB,SED197809-198112

51938LOCK, SPARE WHEEL CARRIER

main51938-13010iRT13#..WG197809-198112

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17149iRT13#..WG197809-198112

9010112466

main90101-12466

9020213066

main90202-13066

9024008008

main90240-08008

9046816004

main90468-16004

9461211200

main94612-11200

9 parts on this diagram · 1 diagram in section
