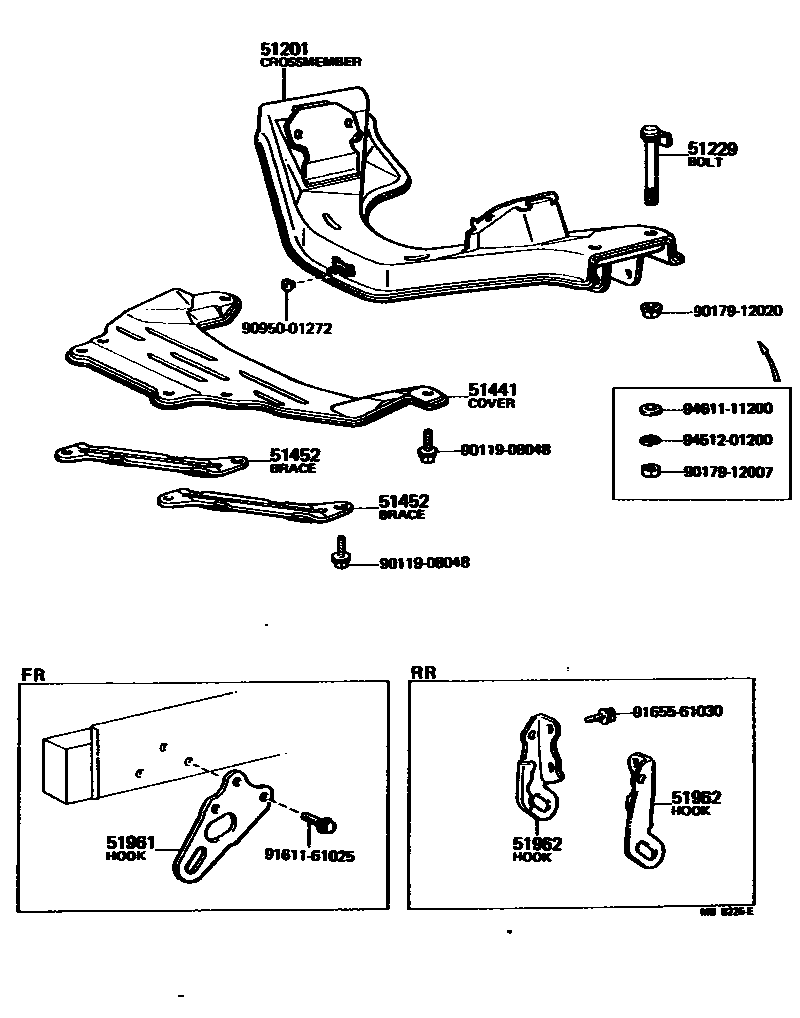

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20130iRT134197809-197908

main51201-20150iRT13#197908-198112

51229BOLT, SUSPENSION MEMBER SET

main51296-14010×4iRT134197809-197905

main51296-14011×4iRT13#197905-198112

51441COVER, ENGINE UNDER, NO.1

main51441-14021iRT13#197809-198112

51452BRACE, FRONT CROSSMEMBER TO FRONT SUSPENSION MEMBER

main51452-14011×2iRT13#197809-198112

51961HOOK, NO.1

main51963-14030×2iRT135198008-198112

main51963-20050×2iRT134197809-198008

51962HOOK, NO.2

main51095-20020iRT134..LB,SED197809-198008

RH

main51095-20021iRT135..LB,SED198008-198112

RH

main51968-20020iRT13#..LB,SED197809-198112

LH

9011908048

main90119-08048

9017912007

main90179-12007

9017912020

main90179-12020

9095001272

main90950-01272

9161161025

main91611-61025

9165561030

main91655-61030

9451201200

main94512-01200

9461111200

main94611-11200

14 parts on this diagram · 1 diagram in section
