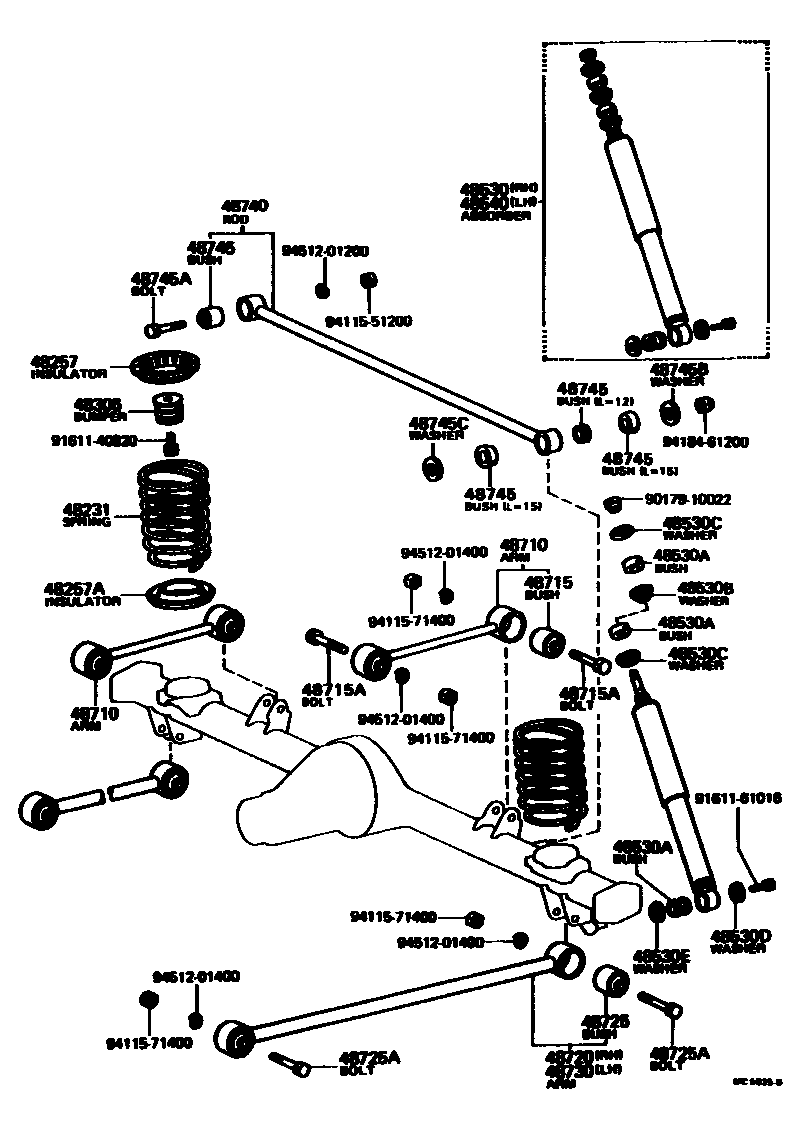

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1

48231SPRING, COIL, REAR

main48231-20020×2iRT134..SED197809-197912

main48231-20030×2iRT134..LB197809-197912

main48231-20050×2iRT13#..LB197912-198112

main48231-20070×2iRT13#..SED197912-198112

48257INSULATOR, REAR COIL SPRING

main48257-14020×2iRT13#..LB,SED197809-198112

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-14030×2iRT13#..LB,SED197809-198112

48306BUMPER SUB-ASSY, REAR SPRING

main48306-14030×2iRT13#..LB,SED197809-198112

main48306-29015×2iRT13#..WG197809-198112

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-19465iRT134..LB,SED197903-197912

main48531-29515iRT134..LB,SED197809-197903

main48531-29615iRT134..WG197809-198008

main48531-29685iRT13#..LB,SED197912-198112

main48531-29725iRT135..WG198008-198112

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001×2iRT135198008-198112

LWR

main90385-16060×2iRT134197809-198008

LWR

main90540-10002×2iRT13#..LB,SED197910-198112

UPR,OD=30,ID=10

main90540-10004×2iRT134..LB,SED197809-197910

UPR,OD=30,ID=10

main90540-10005×2iRT13#..LB,SED197809-198112

UPR,OD=30,ID=10 & 14

main90948-01003×4iRT13#..WG197809-198112

UPR

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02007×2iRT134197809-197910

main90948-02050×2iRT134197910-198008

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02002×4iRT13#..LB,SED; RT13#..WG197809-198112

LWR

main90948-02045×2iRT13#..LB,SED197809-198112

UPR

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012×2iRT13#197809-198112

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iRT13#197809-198112

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-19465iRT134..LB,SED197903-197912

main48531-29515iRT134..LB,SED197809-197903

main48531-29615iRT134..WG197809-198008

main48531-29685iRT13#..LB,SED197912-198112

main48531-29725iRT135..WG198008-198112

48710ARM ASSY, UPPER CONTROL

main48710-14040×2iRT134..LB,SED197809-197908

main48710-14060×2iRT13#..LB,SED197908-198112

48715BUSH, UPPER CONTROL ARM

main48702-14010×2iRT13#..LB,SED197908-198112

main48702-22060×2iRT134..LB,SED197809-197908

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90101-14002×2iRT13#..LB,SED197809-198106

*14-1.5PX141-23

main90101-14007×2iRT13#..LB,SED197809-198106

*14-1.5PX76-21

main90105-14006×2iRT135..LB,SED198106-198112

*14-1.5PX77-28

main90105-14009×2iRT135..LB,SED198106-198112

*14-1.5PX141-25

48720ARM ASSY, LOWER CONTROL, RH

main48720-14040iRT13#..LB,SED197809-198112

48725BUSH, LOWER CONTROL ARM

main48702-14020×2iRT13#..LB,SED197809-198112

48725ABOLT(FOR LOWER CONTROL ARM)

main90101-14007×4iRT13#..LB,SED197809-198106

*14-1.5PX76-21

main90105-14006×4iRT135..LB,SED198106-198112

*14-1.5PX77-28

48730ARM ASSY, LOWER CONTROL, LH

main48720-14040iRT13#..LB,SED197809-198112

48740ROD ASSY, REAR LATERAL CONTROL

main48740-14050iRT134..LB,SED197809-198008

main48740-20030iRT135..LB,SED198008-198112

48745BUSH, LATERAL CONTROL ROD

main48706-14010iRT13#..LB,SED197809-198112

BODY SIDE

main90385-20001×2iRT13#..LB,SED197809-198112

HOUSING SIDE,L=15

main90386-20001iRT13#..LB,SED197809-198112

HOUSING SIDE,L=12

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90101-12032iRT134..LB,SED197809-198008

*12-1.25PX65-25

main90106-12002iRT135..LB,SED198008-198112

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12010iRT13#..LB,SED197809-198112

48745CWASHER, LATERAL CONTROL ROD CUSHION

main94612-12000iRT13#..LB,SED197809-198112

9017910022

main90179-10022

9161140820

main91611-40820

9161161016

main91611-61016

9411551200

main94115-51200

9411571400

main94115-71400

9418461200

main94184-61200

9451201200

main94512-01200

9451201400

main94512-01400

31 parts on this diagram · 4 diagrams in section
