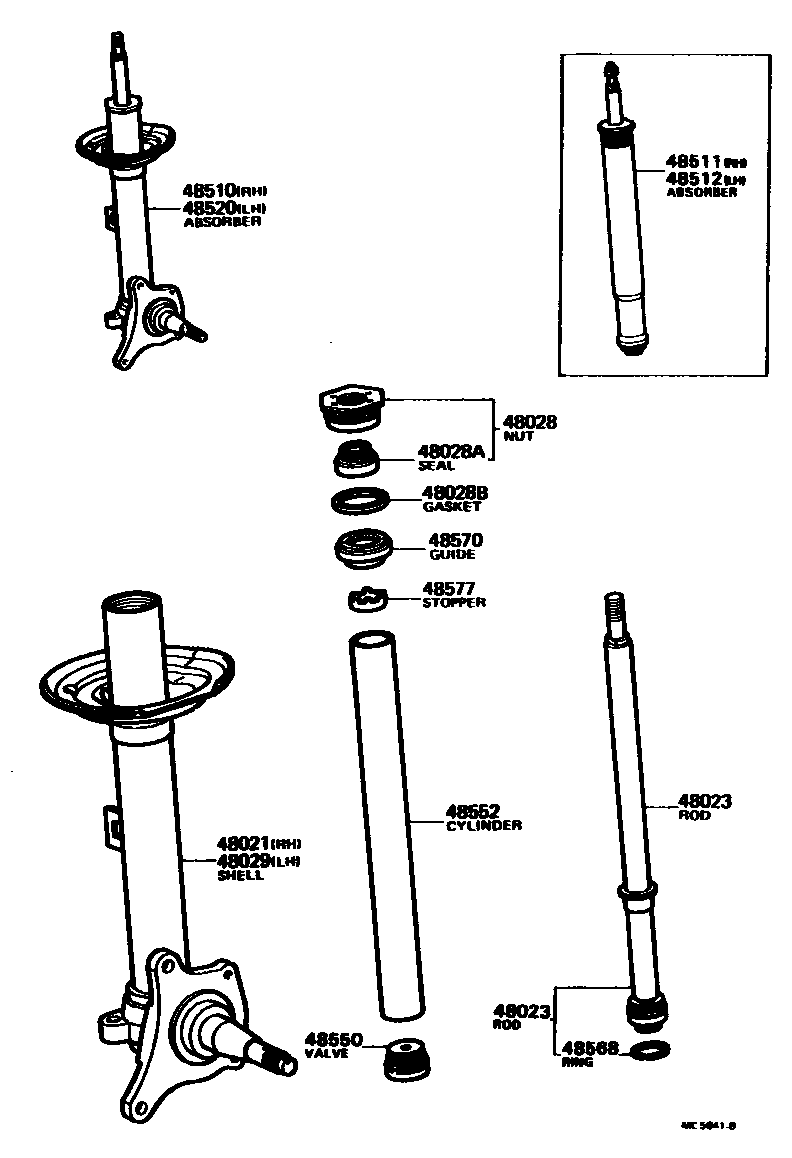

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-20040iRT13#197809-198112

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-20020iRT13#197809-198112

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-20020iRT13#197809-198112

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-22003iRT13#197809-198112

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-40001iRT13#197809-198112

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-20040iRT13#197809-198112

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-20040iRT13#197809-198112

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-20070iRT13#197809-198112

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-20070iRT13#197809-198112

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-20040iRT13#197809-198112

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-20010iRT13#197809-198112

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-20020iRT13#197809-198112

48568RING, SHOCK ABSORBER PISTON

main48568-22010iRT13#197809-198112

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-22010iRT13#197809-198112

48577STOPPER, SHOCK ABSORBER REBOUND

main48577-22021iRT13#197809-198112

15 parts on this diagram · 2 diagrams in section
