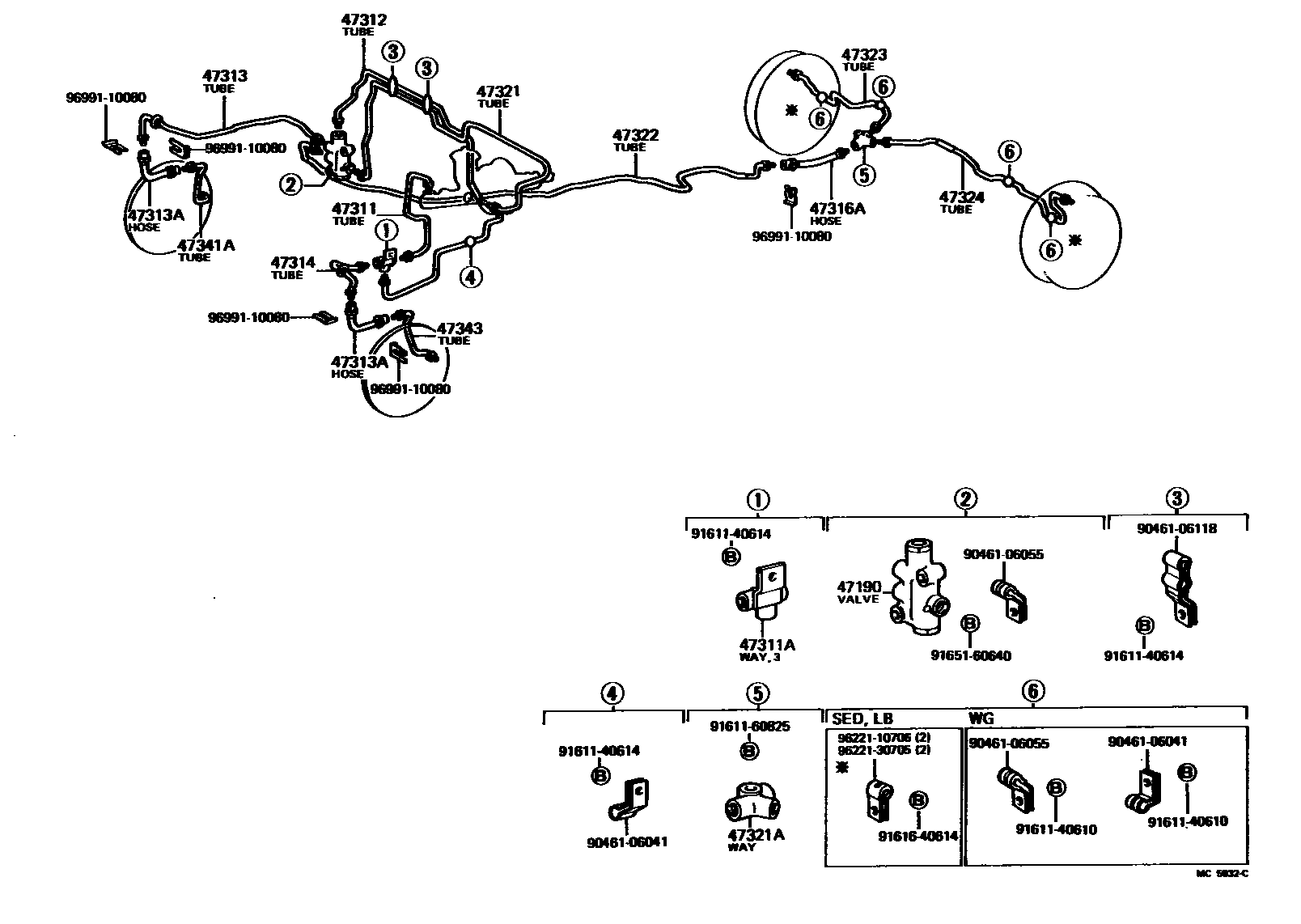

BRAKE TUBE & CLAMP

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-20010iRT13#197809-198112

47311TUBE, FRONT BRAKE, NO.1

main47311-14130iRT13#197809-198112

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10004iRT13#197809-198112

47312TUBE, FRONT BRAKE, NO.2

main47312-20060iRT134197809-198008

main47312-20061iRT135198008-198112

47313TUBE, FRONT BRAKE, NO.3

main47313-20150iRT134197809-198008

main47313-20151iRT135198008-198112

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02386×2iRT134197809-197902

main96950-33305×2iRT13#197902-198112

47314TUBE, FRONT BRAKE, NO.4

main47314-14022iRT13#197809-198112

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02262iRT134..WG197809-197902

main90947-02395iRT134..LB,SED197809-197902

main96910-33905iRT134..WG197902-198008

main96910-33955iRT135..WG198008-198112

main96940-32855iRT13#..LB,SED197902-198112

47321TUBE, REAR BRAKE, NO.1

main47321-20030iRT134197809-198008

main47321-20031iRT135198008-198112

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10098iRT13#197809-198112

47322TUBE, REAR BRAKE, NO.2

main47322-20030iRT13#197809-198112

main47322-21020iRT13#..WG197809-198112

47323TUBE, REAR BRAKE, NO.3

main47323-14040iRT13#..LB,SED197809-198106

main47323-14041iRT135..LB,SED198106-198108

main47323-14042iRT135..LB,SED198108-198112

main47323-20020iRT13#..WG197809-198112

47324TUBE, REAR BRAKE, NO.4

main47324-14070iRT13#..LB,SED197809-198106

main47324-14071iRT135..LB,SED198106-198108

main47324-14072iRT135..LB,SED198108-198112

main47324-20020iRT13#..WG197809-198112

47341ATUBE, WHEEL CYLINDER, FRONT RH

main47341-20040iRT13#197809-198112

47343TUBE, WHEEL CYLINDER, FRONT LH

main47343-20020iRT13#197809-198112

9046106041

main90461-06041

9046106055

main90461-06055

9046106118

main90461-06118

9161140610

main91611-40610

9161140614

main91611-40614

9161160825

main91611-60825

9161640614

main91616-40614

9165160640

main91651-60640

9622110706

main96221-10706

9622130705

main96221-30705

9699110080

main96991-10080

26 parts on this diagram · 1 diagram in section
