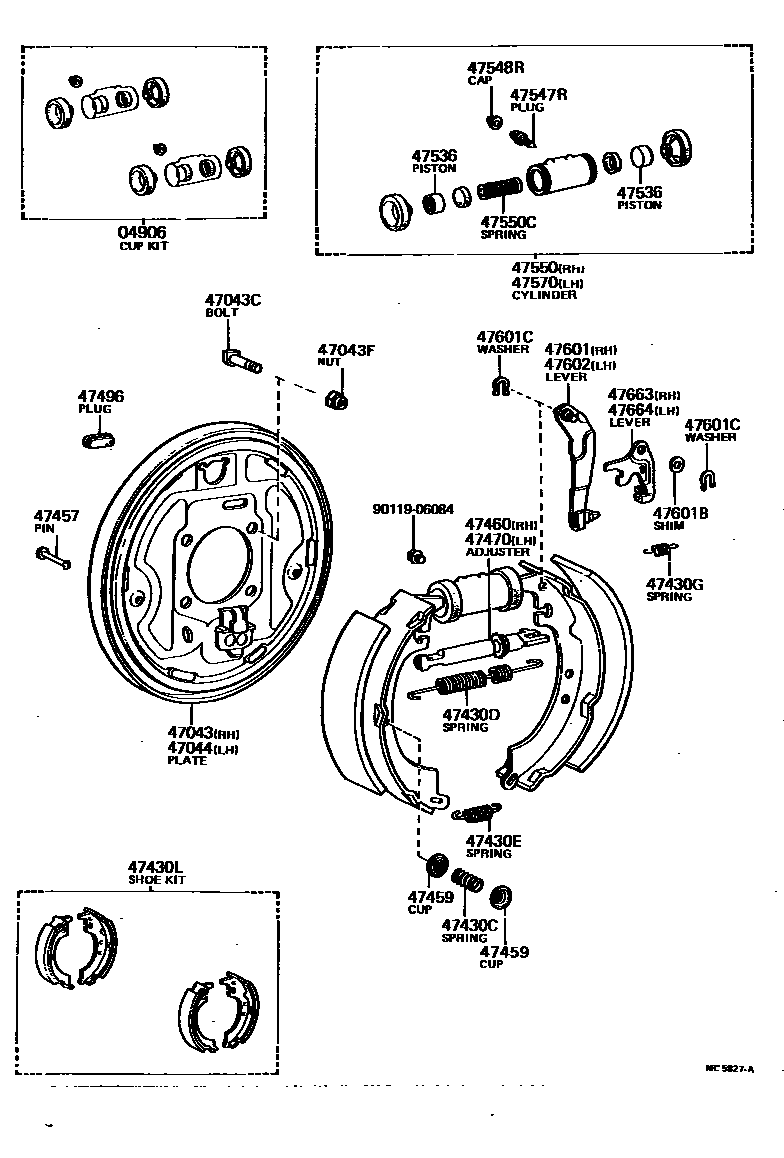

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04906CUP KIT, REAR WHEEL CYLINDER

main04906-14020iRT13#197809-198108

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-20050iRT13#197809-198112

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011×8iRT13#197809-198112

*10-1.25PX37-15

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000×8iRT13#197809-198112

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-20050iRT13#197809-198112

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017×4iRT13#197809-198112

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375×2iRT13#197809-198112

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346×2iRT13#197809-198112

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iRT13#197809-198112

47430LSHOE KIT, REAR BRAKE

main04495-20050iRT13#197809-198112

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iRT13#197809-198112

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iRT13#197809-198112

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14021iRT13#197809-198112

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14021iRT13#197809-198112

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iRT13#197809-198112

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020×4iRT13#197809-198112

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iRT13#197809-198112

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iRT13#197809-198112

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19145iRT135198108-198112

main47550-29075iRT13#197809-198108

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-20010×2iRT13#197809-198112

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-29075iRT13#197809-198112

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iRT13#197809-198112

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iRT13#197809-198112

T=0.3,T=0.3

main90564-08151iRT13#197809-198112

T=0.6,T=0.6

main90564-08152iRT13#197809-198112

T=0.9,T=0.9

main90564-08172iRT13#197809-198112

T=0.2,T=0.2

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iRT13#197809-198112

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iRT13#197809-198112

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20020iRT13#197809-198112

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-20020iRT13#197809-198112

9011906084

main90119-06084

28 parts on this diagram · 1 diagram in section
