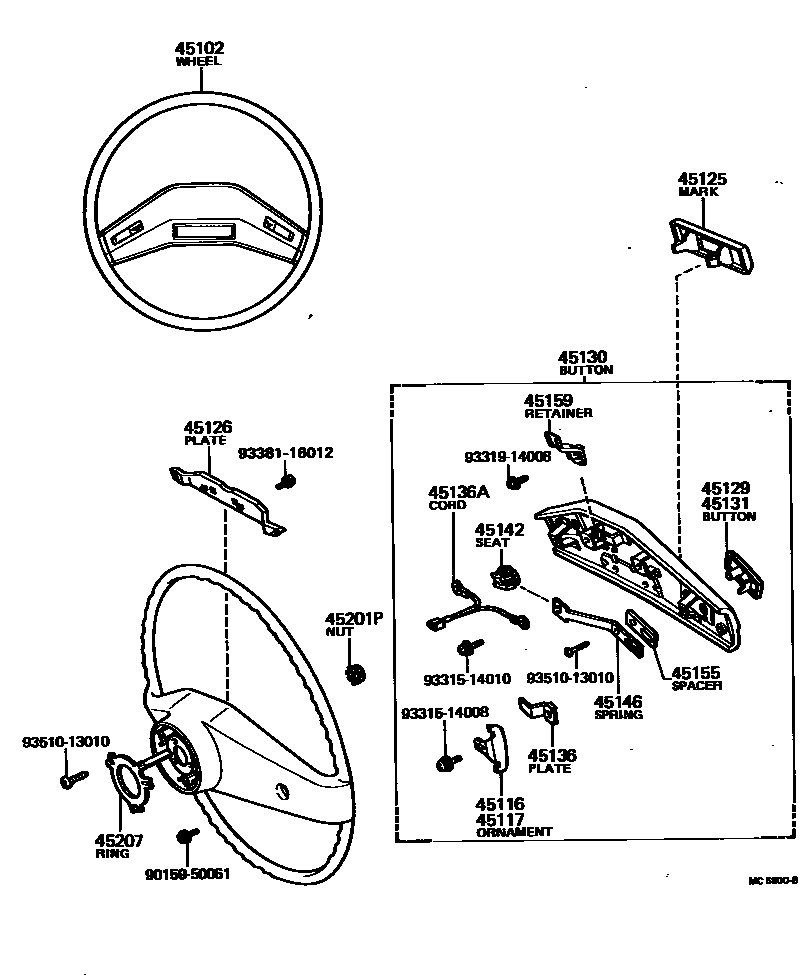

STEERING WHEEL
45102WHEEL SUB-ASSY, STEERING
BEIGE,BEIGE
BLACK,BLACK
DARK WINE,RED/MAROON
LIGHT BROWN,BROWN
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
LIGHT BROWN,BROWN
BLACK
DARK WINE
LIGHT BROWN
45116ORNAMENT, STEERING WHEEL, NO.1
45117ORNAMENT, STEERING WHEEL, NO.2
45125MARK, STEERING WHEEL PAD
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
LIGHT BROWN,BROWN
45126PLATE, STEERING WHEEL PAD SET
45129BUTTON, HORN, NO.2
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
LIGHT BROWN,BROWN
UPR,BLACK,BLACK
UPR,DARK WINE,RED/MAROON
UPR,LIGHT BROWN,BROWN
LWR,BLACK,BLACK
LWR,DARK WINE,RED/MAROON
LWR,LIGHT BROWN,BROWN
45130BUTTON ASSY, HORN
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
LIGHT BROWN,BROWN
45131BUTTON, HORN, NO.1
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
LIGHT BROWN,BROWN
UPR,BLACK,BLACK
UPR,DARK WINE,RED/MAROON
UPR,LIGHT BROWN,BROWN
BLACK,BLACK
DARK WINE,RED/MAROON
LIGHT BROWN,BROWN
LWR,BLACK,BLACK
LWR,DARK WINE,RED/MAROON
LWR,LIGHT BROWN,BROWN
45136PLATE, HORN BUTTON CONTACT
45136ACORD(FOR HORN CONTACT RING)
45142SEAT, HORN BUTTON CONTACT, NO.1
45146SPRING, HORN BUTTON CONTACT
45155SPACER, HORN BUTTON CONTACT PLATE
45159RETAINER, STEERING WHEEL PAD SET
45201PNUT, STEERING WHEEL SET
45207RING, HORN CONTACT
9015950061
main90159-50061
9331514008
main93315-14008
9331514010
main93315-14010
9331914008
main93319-14008
9338116012
main93381-16012
9351013010
main93510-13010
22 parts on this diagram · 4 diagrams in section
