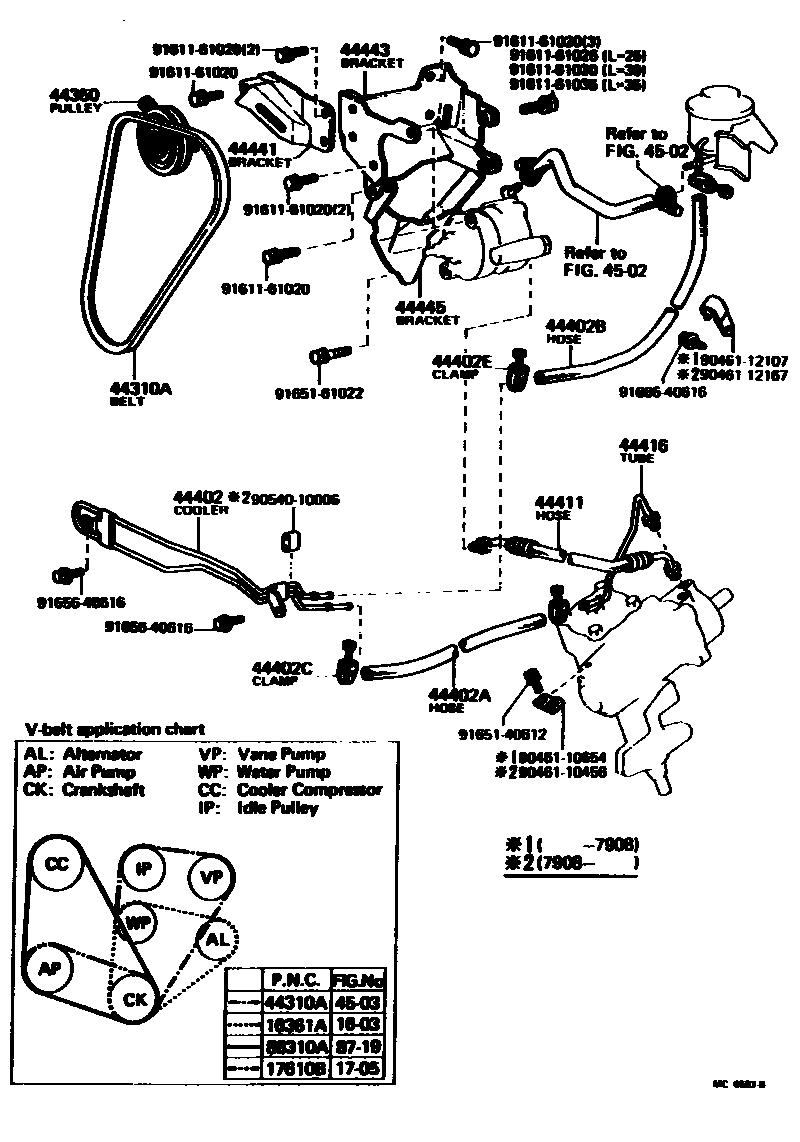

POWER STEERING TUBE

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16361ABELT, V(FOR FAN & ALTERNATOR)

main99331-00880i20R..RT134197809-197908

L=880

main99331-10880i20R,22R..RT13#197908-198112

L=880

1705AIR PUMP

→ Go to FIG 17-05

17610BBELT, V(FOR AIR PUMP)

main99332-00865i20R..RT134197809-197908

L=865

main99332-10820i22R..RT135..USA198008-198112

L=820

main99332-10830i20R..RT134197908-198008

L=830

44310ABELT, V(FOR VANE PUMP)

main99332-11135iRT13#..3FC,3HC,4FC,5F197908-198112

main99332-51135iRT134197809-197908

44350PULLEY ASSY, POWER STEERING IDLE

main44350-20020iRT134197809-197908

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-20020iRT134197809-197908

main44402-20030iRT134..3FC,3HC,5F197908-198008

main44402-20040iRT135198008-198112

44402AHOSE, POWER STEERING OIL COOLER INLET

main90445-18034iRT134197809-197908

main90445-18086iRT13#..3FC,3HC,4FC,5F197908-198112

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main90445-18033iRT134197809-197908

main90445-18072iRT13#..3FC,3HC,4FC,5F197908-198112

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001×2iRT134197809-197908

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001×2iRT134197809-197908

44411HOSE, PRESSURE FEED

main44411-20030iRT13#..3FC,3HC,4FC,5F197908-198011

main44411-20042iRT135198011-198112

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-14010iRT134197809-197908

main44416-14050iRT13#..3FC,3HC,4FC,5F197908-198112

44441BRACKET, PUMP, FRONT

main44441-20010iRT134197809-197908

44443BRACKET, PUMP

main44443-20020iRT13#..3FC,3HC,4FC,5F197908-198011

main44443-20030iRT135198011-198108

main44443-20031iRT135198108-198112

44445BRACKET, PUMP, LOWER

main44445-20010iRT134197809-197908

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-01140iRT134197809-197908

L=1140

main99332-10890iRT135..CND198008-198112

L=890

main99332-11110iRT134197908-198008

L=1140

9046110456

main90461-10456

9046110654

main90461-10654

9046112107

main90461-12107

9046112167

main90461-12167

9054010006

main90540-10006

9161161020

main91611-61020

9161161025

main91611-61025

9161161030

main91611-61030

9161161035

main91611-61035

9165140612

main91651-40612

9165161022

main91651-61022

9165640616

main91656-40616

9166640616

main91666-40616

33 parts on this diagram · 1 diagram in section
