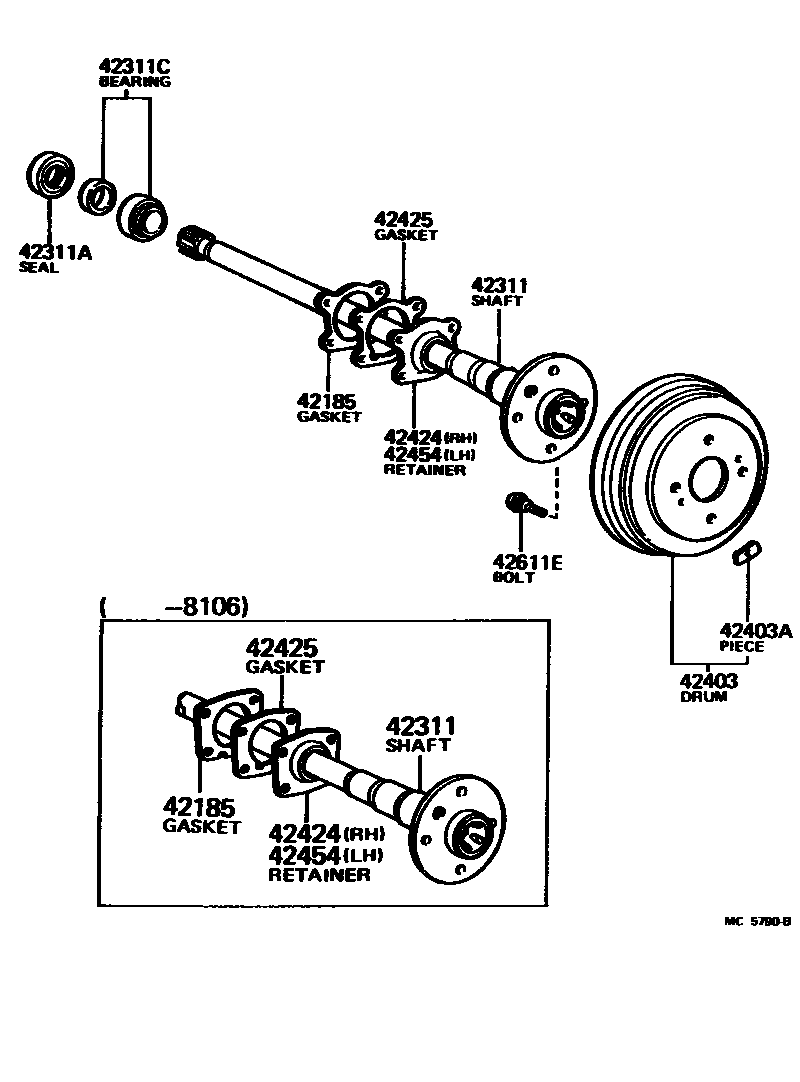

REAR AXLE SHAFT & HUB

42185GASKET, REAR AXLE HOUSING END

main42185-14020×2iRT135198106-198112

main42185-22020×2iRT13#197809-198106

42311SHAFT, REAR AXLE

main42311-14080×2iRT13#197809-198106

main42311-14140×2iRT135198106-198112

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-52059×2iRT13#197809-198112

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-30011×2iRT13#197809-198112

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12060×2iRT13#197809-198112

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iRT13#197809-198112

10G,10G

main90937-01118iRT13#197809-198112

20G,20G

main90937-01119iRT13#197809-198112

30G,30G

main90937-01195iRT13#197809-198112

40G,40G

main90937-01196iRT13#197809-198112

50G,50G

main90937-01197iRT13#197809-198112

60G,60G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iRT135198106-198112

main42424-21010iRT13#197809-198106

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020×2iRT135198106-198112

main42425-22020×2iRT13#197809-198106

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-14010iRT135198106-198112

main42454-21010iRT13#197809-198106

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035×8iRT13#197809-198112

*12-1.5PX36-23.5

10 parts on this diagram · 1 diagram in section
