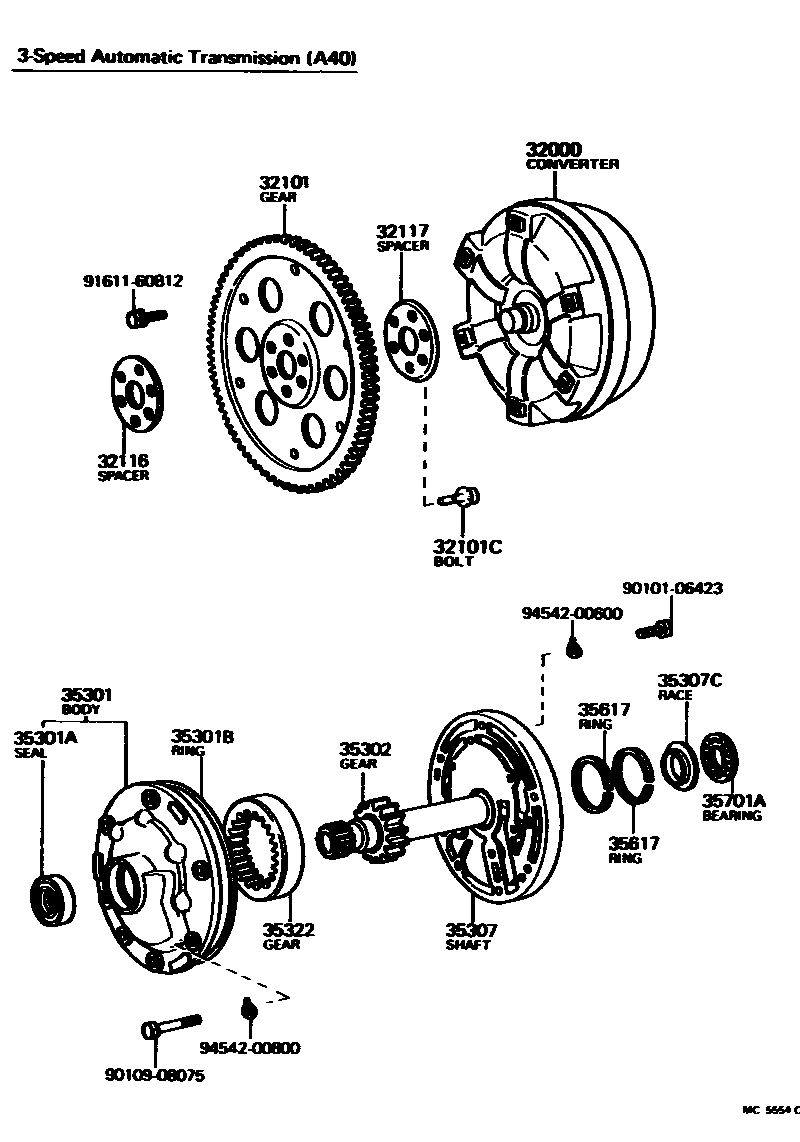

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-14060iRT134..ATM197809-198008

main32000-14100iRT135..4FC198107-198112

main32000-20100iRT135..4FC198008-198107

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-20050iRT13#..ATM197809-198112

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90913-01011×6iRT13#..ATM197809-198112

*17-1.25PX26-18

32116SPACER, DRIVE PLATE, FRONT

main32116-20011iRT13#..ATM197809-198112

32117SPACER, DRIVE PLATE, REAR

main32117-20021iRT13#..ATM197809-198112

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-22011iRT134..ATM197809-197909

main35301-22012iRT134..ATM197909-198008

main35301-30030iRT135..4FC198008-198112

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38129iRT13#..ATM197809-198112

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35147-22010iRT134..ATM197809-197909

main90301-99010iRT13#..ATM197909-198112

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-22010iRT13#..ATM197809-198112

35307SHAFT SUB-ASSY, STATOR

main35307-22011iRT134..ATM197809-197909

main35370-22010iRT134..ATM197909-198112

main35370-22030iRT135..4FC198108-198112

main35370-30010iRT135..4FC198008-198112

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iRT13#..ATM197809-198112

T=4.3

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iRT13#..ATM197809-198112

T=15.286-15.235

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010×2iRT135..4FC198108-198112

main35617-22010×2iRT134..ATM197809-198008

main35617-22020×2iRT135..4FC198008-198112

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iRT13#..ATM197809-198112

9010106423

main90101-06423

9010908075

main90109-08075

9161160812

main91611-60812

9454200600

main94542-00600

9454200800

main94542-00800

19 parts on this diagram · 2 diagrams in section
