SHIFT LEVER & RETAINER

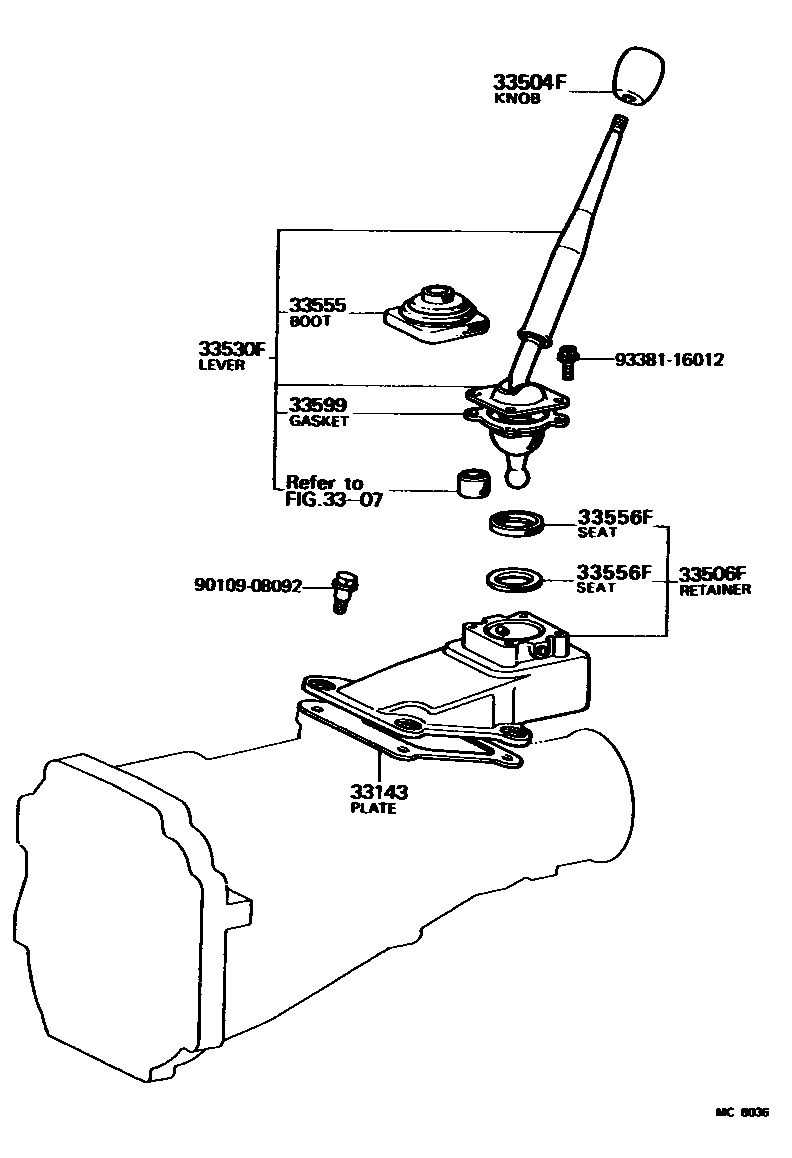

Parts diagram

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-20030i197809-198008

main33143-22020i198008-198112

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12140i197809-198008

WOOD

main33504-20052-01i198008-198112

URETHANE,BLACK,BLACK

main33504-20052-02i198008-198112

URETHANE,DARK WINE,RED/MAROON

main33504-20052-06i198008-198112

URETHANE,LIGHT BROWN,BROWN

main33504-22100-01i197809-198008

BLACK,BLACK

main33504-22100-02i197809-198008

DARK WINE,RED/MAROON

main33504-22100-05i197809-198008

BEIGE,BEIGE

main33504-22110-01i197809-198010

BLACK,BLACK

main33504-22110-02i197809-198010

DARK WINE,RED/MAROON

main33504-22110-05i197809-198010

BEIGE,BEIGE

main33504-22111-01i198010-198112

BLACK,BLACK

main33504-22111-02i198010-198112

DARK WINE,RED/MAROON

main33504-22111-05i198010-198112

BEIGE,BEIGE

main33542-22140i197809-198008

main33542-30110-01i198008-198112

BLACK,BLACK

main33542-30110-02i198008-198112

DARK WINE,RED/MAROON

main33542-30110-16i198008-198112

LIGHT BROWN,BROWN

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-21010i197809-198008

main33570-22070i198008-198112

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-14101i198008-198112

main33503-20140i197809-198008

main33530-20141i197809-198008

main33530-20162i197809-198008

main33530-20220i198008-198011

main33530-20221i198011-198112

33555BOOT, SHIFT LEVER

main33555-22030i197809-198008

main33555-22050i198008-198112

main33555-31011i197809-198008

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20010i197809-198008

T=3.0

main33556-22010i197809-198008

T=6.5

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020i198008-198112

main33584-31020i197809-198008

9010908092

main90109-08092

9338116012

main93381-16012

10 parts on this diagram · 3 diagrams in section
