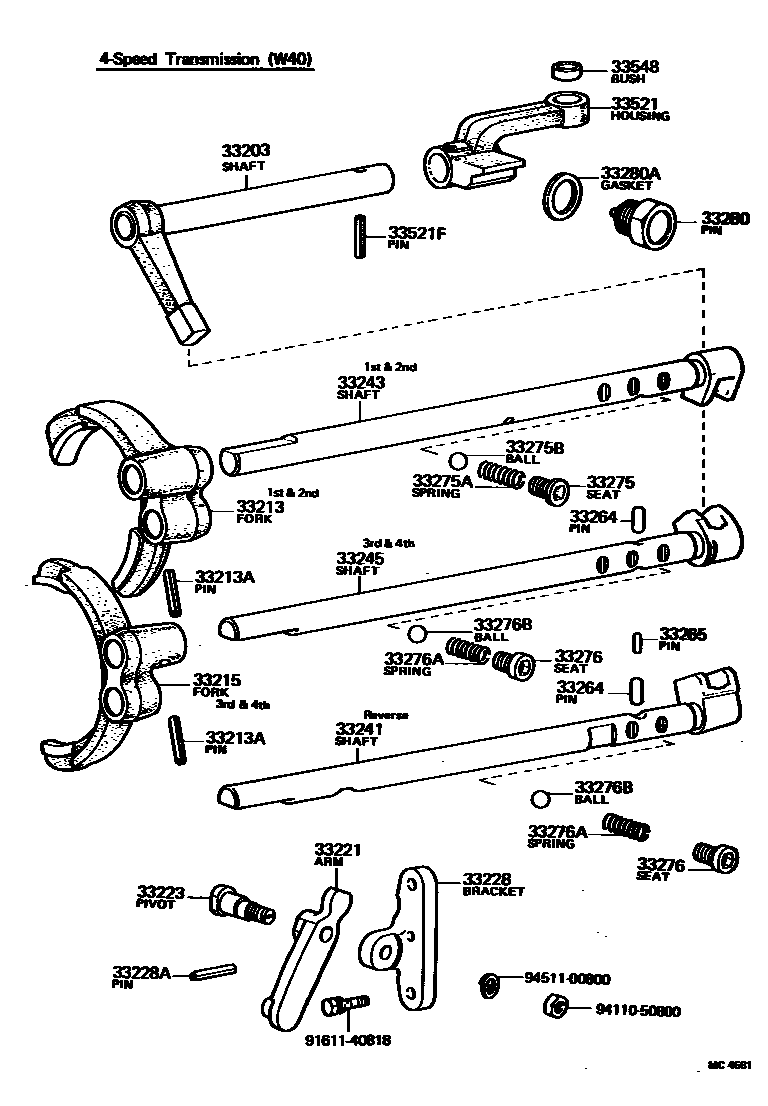

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-20080iRT134..4F197809-198008

main33203-20092iRT134..5F197809-198008

sub33251-20040

33213FORK, 1ST & 2ND SHIFT

main33212-22020iRT135..5F198008-198112

sub33212-30050

main33212-31010iRT134..MTM197809-198008

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001×3iRT134..MTM197809-198008

main90254-05016iRT135..5F198008-198112

33215FORK, 3RD & 4TH SHIFT

main33213-22030iRT135..5F198008-198112

sub33213-22040

main33213-31010iRT134..MTM197809-198008

33221ARM, REVERSE SHIFT

main33221-22010iRT135..5F198008-198112

main33221-31010iRT134..4F197809-198008

33223PIVOT, SHIFT ARM

main33223-31010iRT134..4F197809-198008

33228BRACKET, REVERSE SHIFT ARM

main33228-31010iRT134..4F197809-198008

33228APIN, REVERSE SHIFT ARM BRACKET

main90254-05001iRT134..4F197809-198008

33241SHAFT, REVERSE SHIFT FORK

main33241-31010iRT134..4F197809-198008

main33244-20011iRT134..5F197809-197905

main33244-20902iRT134..5F197905-198008

main33244-22020iRT135..5F198008-198112

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-20042iRT134..5F197809-198008

main33242-22020iRT135..5F198008-198112

main33242-31012iRT134..4F197809-198008

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-20031iRT134..5F197809-198008

main33243-22030iRT135..5F198008-198112

sub33240-22020

sub33214-22030

main33243-31011iRT134..4F197809-198008

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-22010iRT135..5F198008-198112

main33264-31010×2iRT134..MTM197809-198008

33265PIN, SHIFT INTERLOCK, NO.2

main33265-22010iRT135..5F198008-198112

L=11.2,OD=4,L=11.2

main33265-31010iRT134..4F197809-198008

main33266-22010iRT135..5F198008-198112

L=13.6,OD=6,L=13.6

main90250-06007iRT135..5F198008-198112

L=8.6,OD=6,L=8.6

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-10004iRT134..MTM197809-198008

main90341-12004iRT135..5F198008-198112

OD=18

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13001iRT134..MTM197809-198008

L=16.5

main90501-13004iRT135..5F198008-198112

L=20.65

sub90501-14123

33275BBALL, SHAFT DETENT

main90360-08009iRT134..MTM197809-198008

main90360-10003iRT135..5F198008-198112

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main90341-10064×2iRT134..MTM197809-198008

main90341-12005×2iRT135..5F198008-198112

sub90341-12018

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-13001×2iRT134..MTM197809-198008

main90501-13004×2iRT135..5F198008-198112

sub90501-14123

33276BBALL, SHIFT DETENT, NO.2

main90360-08009×2iRT134..MTM197809-198008

main90360-10003×2iRT135..5F198008-198112

33280PIN ASSY, REVERSE RESTRICT

main33280-22020iRT135..5F198008-198112

RH

main33280-22030iRT135..5F198008-198112

LH

main33280-31010iRT134..4F197809-198008

33280AGASKET, REVERSE RESTRICT PIN

main90430-18007×2iRT135..5F198008-198112

sub90430-18008

main90430-18165iRT134..4F197809-198008

33521HOUSING, SHIFT LEVER

main33502-22180iRT135..5F198102-198112

main33521-20120iRT134..4F197809-198008

main33521-20140iRT134..5F197809-198008

sub33521-20141

main33521-22100iRT135..5F198008-198102

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90113-08001iRT135..5F198008-198112

main90254-05016iRT134..MTM197809-198008

33548BUSH, SHIFT LEVER

main33548-31010iRT13#..MTM197809-198112

9161140818

main91611-40818

9411050800

main94110-50800

9451100800

main94511-00800

27 parts on this diagram · 3 diagrams in section
