TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

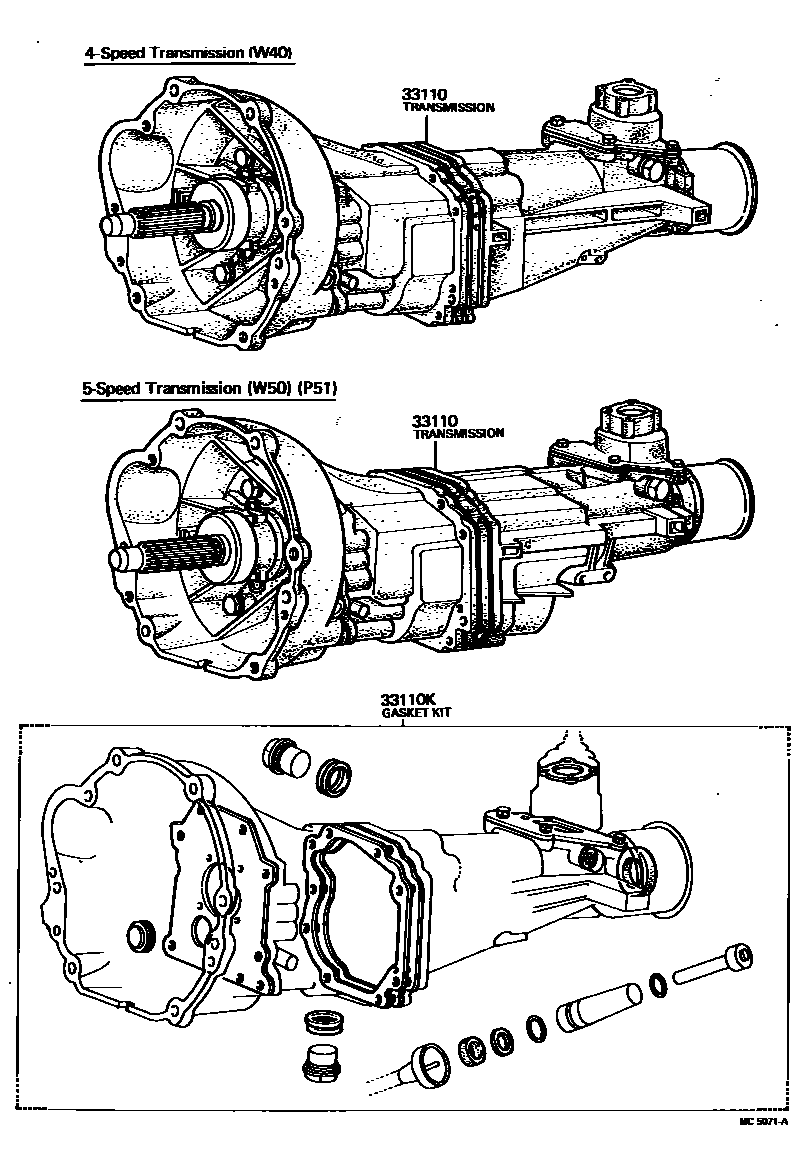

Parts diagram

33110TRANSMISSION ASSY, MANUAL

main33030-20081i197809-197811

main33030-20161i197809-197811

main33030-20630i197811-198008

main33030-20640i197811-198008

main33030-20730i198008-198112

33110KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-20050i198008-198112

main04331-22021i197809-198008

main04331-22030i197809-198008

2 parts on this diagram · 2 diagrams in section
