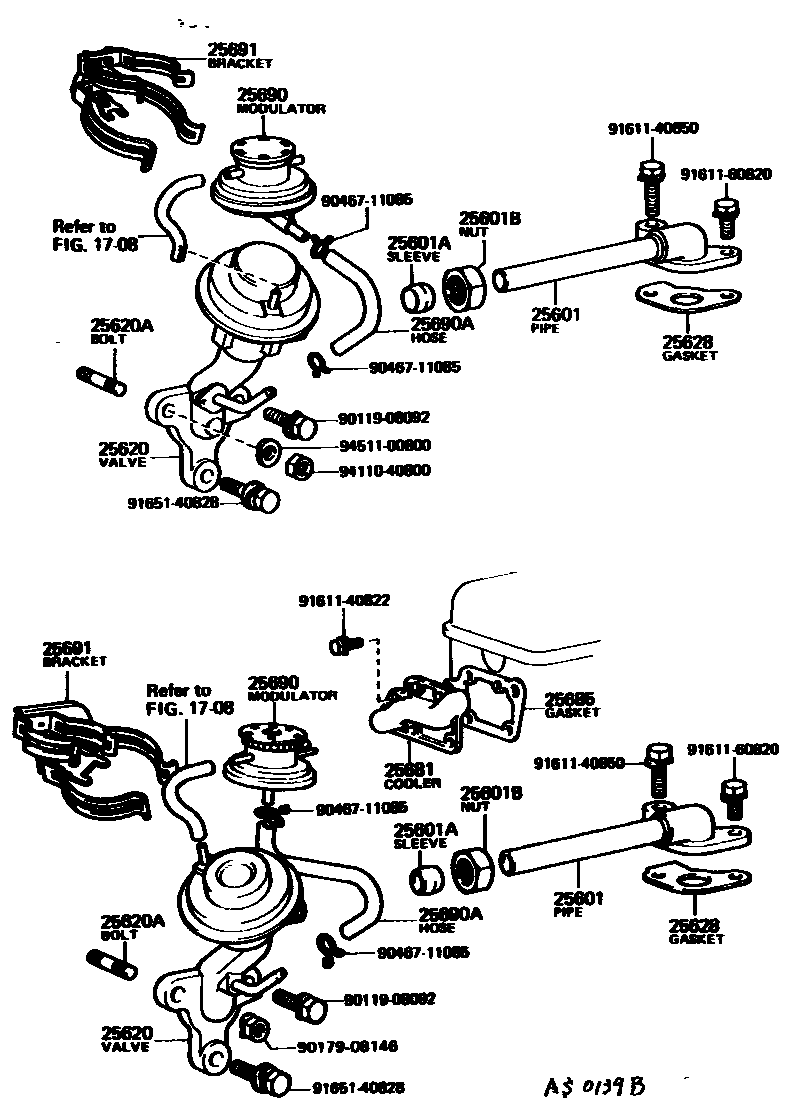

Toyota 261430 — EXHAUST GAS RECIRCULATION SYSTEM
1708VACUUM PIPING
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
25620VALVE ASSY, EGR
25620ABOLT, STUD(FOR EGR VALVE)
25628GASKET, EGR INLET
25685GASKET, EGR COOLER, NO.1
25690MODULATOR ASSY, EGR VACUUM
25690AHOSE(FOR EGR VACUUM MODULATOR)
9011908092
9017908146
9046711085
9161140822
9161140850
9161160820
9165140828
9411040800
9451100800
21 parts on this diagram · 1 diagram in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota 261430
This section contains 21 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota 261430. Key components include: VACUUM PIPING, PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR.
