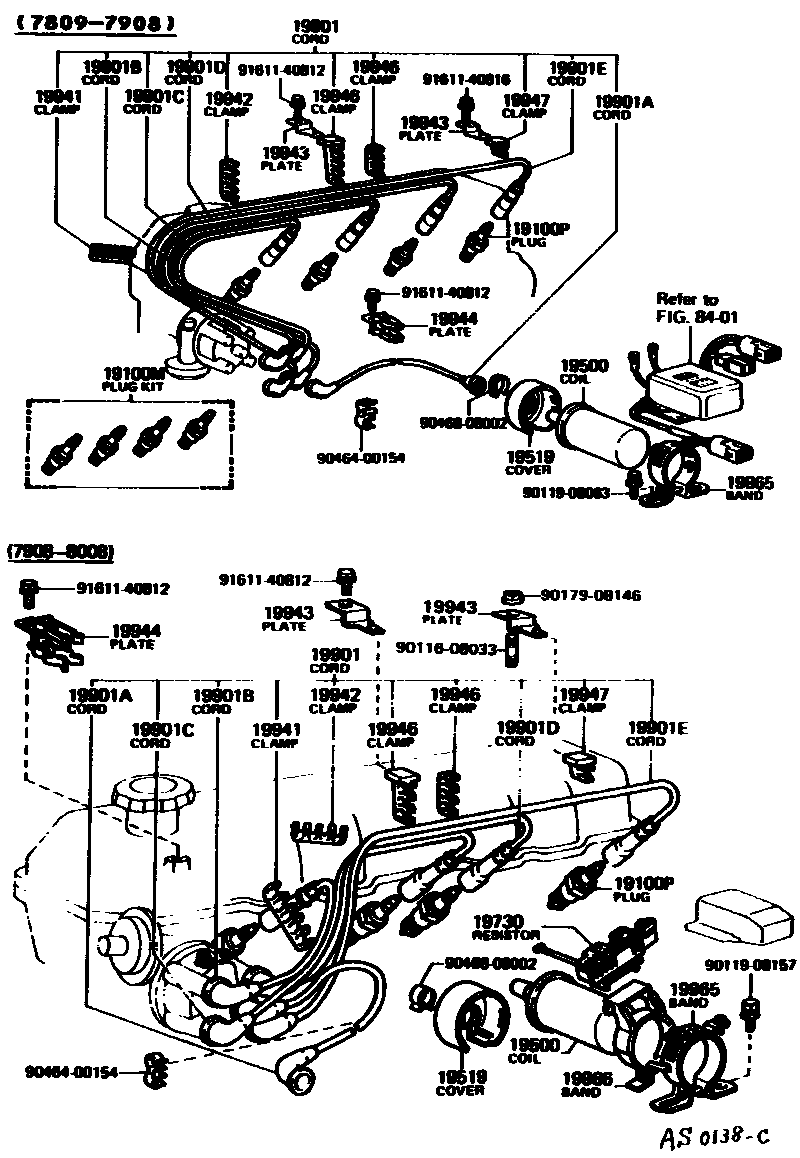

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100MPLUG KIT, SPARK

main04195-34110i20R..RT134..USA197809-197811

W16EX-U

19100PPLUG, SPARK

main90919-01059×4i20R..RT134..USA197809-197811

W16EX-U,W16EX-U

main90919-01064×4i20R,22R..RT13#197811-198112

W16EXR-U,W16EXR-U

19500COIL ASSY, IGNITION

main90919-02083i20R..RT134197809-197908

main90919-02106i22R..RT135..CND198008-198112

main90919-02113i20R..RT134..USA197908-198008

main90919-02117i20R..RT134..(3FC,3HC,5F)..USA; 20R..RT134..CND197908-198008

CALIFORNIA SPEC

19519COVER, IGNITION COIL

main19519-28010i22R..RT135..CND198008-198112

main19519-28020i22R..RT135..USA198008-198112

COLD SPEC

main19519-38030i20R..RT134..CND; 20R..RT134..USA197809-198008

COLD SPEC

19730RESISTOR, IGNITION COIL

main90919-04029i20R..RT134..USA197908-198008

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21297i22R..RT135..CND198008-198112

main90919-21300i22R..RT135..USA198008-198112

main90999-99048i20R..RT134197809-197908

main90999-99063i20R..RT134197908-198008

19901ACORD, COIL RESISTIVE

main90919-13098i20R..RT134197809-197908

main90919-13138i20R..RT134197908-198008

main90919-13167i22R..RT135..CND198008-198112

main90919-13169i22R..RT135..USA198008-198112

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12230i20R..RT134197809-197908

main90919-12318i20R,22R..RT13#197908-198112

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12231i20R..RT134197809-197908

main90919-12319i20R,22R..RT13#197908-198112

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12232i20R..RT134197809-197908

main90919-12320i20R,22R..RT13#197908-198112

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12233i20R..RT134197809-197908

main90919-12321i20R,22R..RT13#197908-198112

19941CLAMP, RESISTIVE CORD, NO.1

main90464-00045i20R..RT134197809-197810

main90464-00214i20R..RT134197810-197908

main90464-00223i20R,22R..RT13#197908-198112

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00061i20R..RT134197809-197908

main90464-00224i20R,22R..RT13#197908-198112

19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1

main19943-38010×2i20R..RT134197809-198008

main19943-38011i22R..RT135198008-198112

19944PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2

main19944-35010i22R..RT135198108-198112

main19944-38010i20R,22R..RT13#197809-198108

19946CLAMP, RESISTIVE CORD, NO.3

main90464-00060i20R..RT134197809-197908

FR

main90464-00144i20R..RT134197809-197908

RR

main90464-00225i20R,22R..RT13#197908-198112

RR

main90464-00226i20R,22R..RT13#197908-198112

FR

19947CLAMP, RESISTIVE CORD, NO.4

main90464-00059i20R..RT134197809-197908

main90464-00227i20R,22R..RT13#197908-198112

19965BAND, IGNITION COIL, NO.1

main90919-03065i20R..RT134..CND; 20R..RT134..USA197809-197908

COLD SPEC

main90919-03067i20R..RT134..USA197809-197908

main90919-03073i20R..RT134..USA197908-198008

main90919-03074i20R..RT134..CND197908-198008

main90919-03076i20R..RT134..(3FC,3HC,5F)..USA197908-198008

CALIFORNIA SPEC

main90919-03083i22R..RT135..USA198008-198112

COLD SPEC

19966BAND, IGNITION COIL, NO.2

main90919-03072i20R..RT134..USA197908-198008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011608033

main90116-08033

9011908063

main90119-08063

9011908157

main90119-08157

9017908146

main90179-08146

9046400154

main90464-00154

9046808002

main90468-08002

9161140812

main91611-40812

9161140816

main91611-40816

28 parts on this diagram · 2 diagrams in section
