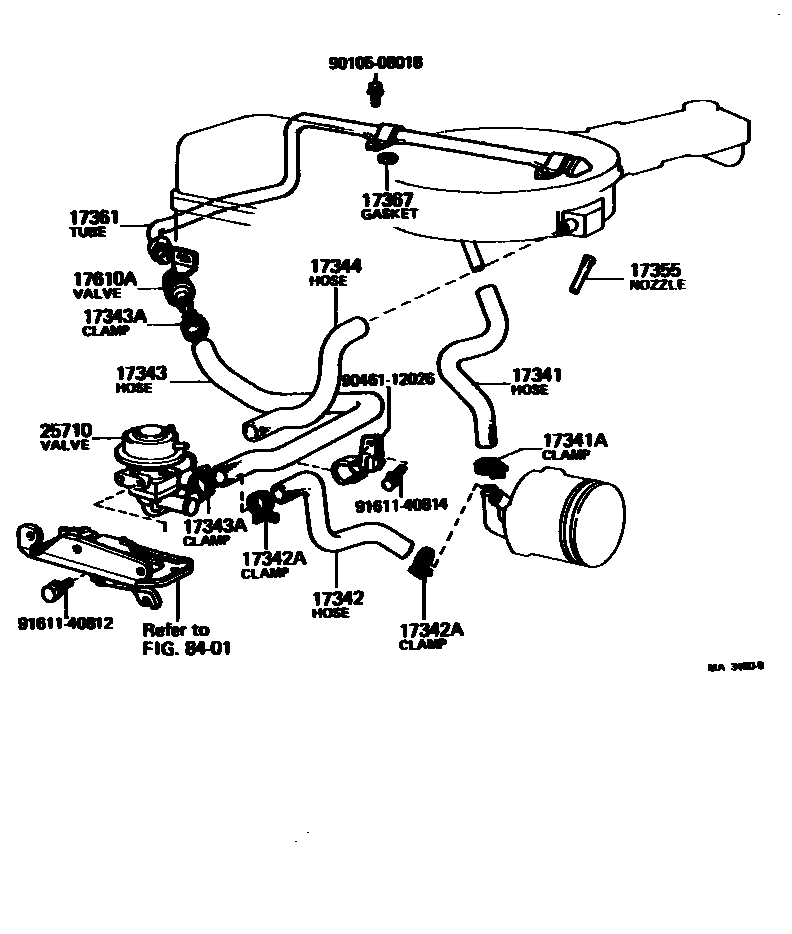

MANIFOLD AIR INJECTION SYSTEM
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17355NOZZLE, AIR INJECTION
CALIFORNIA SPEC
17361TUBE, AIR
17367GASKET, AIR TUBE
17610AVALVE, CHECK(FOR AIR INJECTION SYSTEM)
25710VALVE ASSY, AIR SWITCHING
8401SWITCH & RELAY & COMPUTER
9010508018
main90105-08018
9046112026
main90461-12026
9161140812
main91611-40812
9161140814
main91611-40814
17 parts on this diagram · 4 diagrams in section
