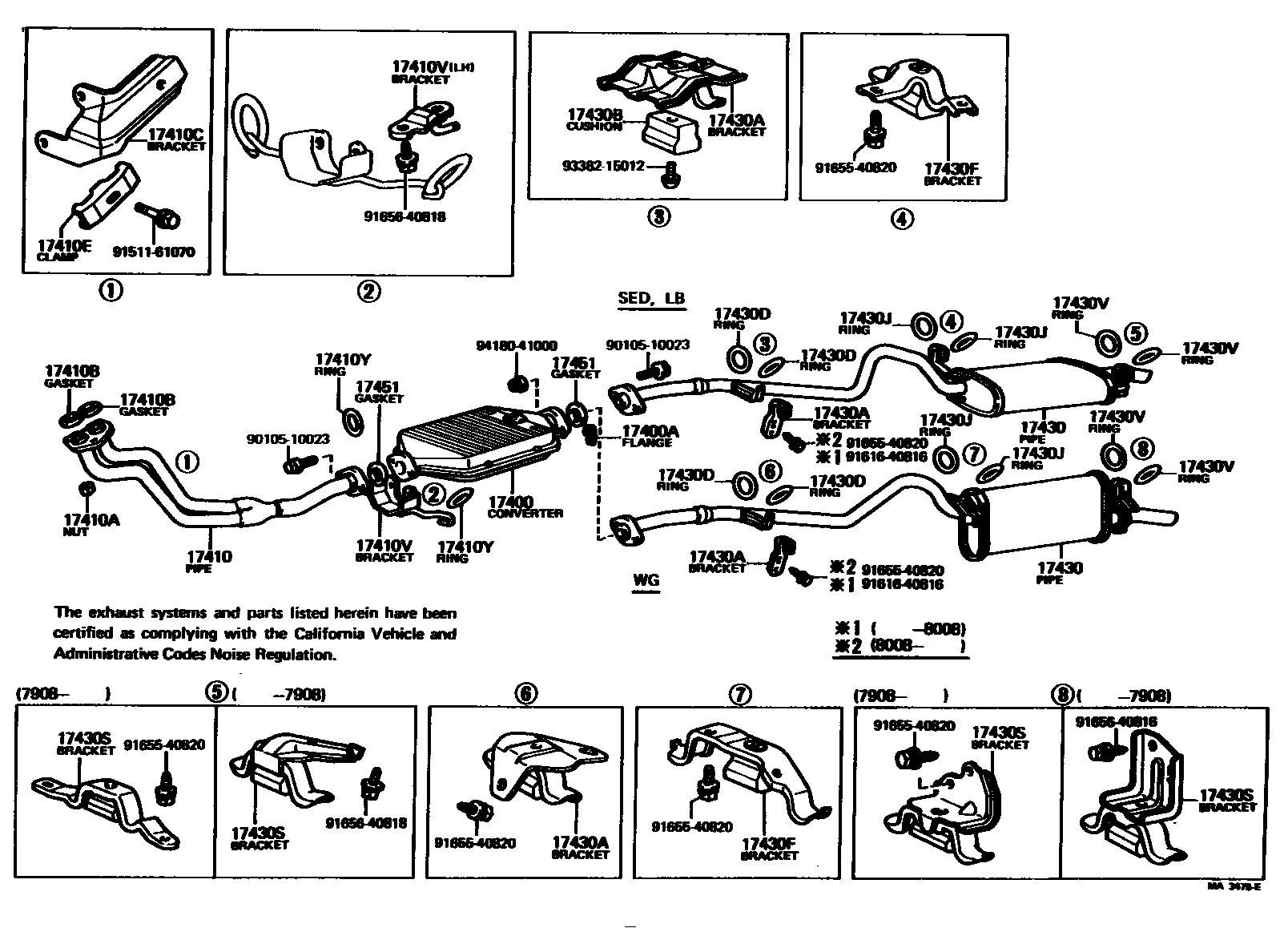

EXHAUST PIPE

0001 1 0003 1

17400CONVERTER ASSY, W/CATALYST

main17040-28060i20R..RT134..USA197908-198008

main17040-35010i22R..RT135..USA198008-198112

main17040-35020i22R..RT135..CND198008-198112

main17040-38030i20R..RT134..USA197809-197908

17400AFLANGE, THERMOSENSER INLET

main18491-34020i22R..RT135..USA198008-198112

main18491-38060i20R..RT134..USA197809-198008

17410PIPE ASSY, EXHAUST, FRONT

main17410-35020i22R..RT135..USA198008-198112

main17410-35030i22R..RT135..CND198008-198112

main17410-38090i20R..RT134..CND197809-197908

main17410-38140i20R..RT134..USA197809-198008

main17410-38180i20R..RT134..CND197908-198008

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10010×3i20R..RT134197809-197911

main90179-10028×3i20R,22R..RT13#197911-198112

17410BGASKET, EXHAUST PIPE

main90917-06001×2i20R..RT134..USA197809-198008

main90917-06012i20R..RT134..CND197809-198008

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-35010i22R..RT135198008-198112

main17571-38040i20R..RT134..CND197809-198008

main17571-38100i20R..RT134..USA197809-198008

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04030i20R..RT134..USA197809-198008

main90917-04037i22R..RT135198008-198112

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17503-35010i22R..RT135..USA198008-198112

CTR

main17503-35020i22R..RT135..CND198008-198112

CTR

main17503-38090i20R..RT134..USA197809-198008

CTR

main17505-26011i20R..RT134..USA197809-198008

LH

17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)

main90301-01212×2i20R..RT134..USA197809-198008

main90301-36001×2i22R..RT135198008-198112

17430PIPE ASSY, EXHAUST, TAIL

main17430-35020i22R..RT135..LB,SED198008-198112

main17430-35030i22R..RT135..WG198008-198112

main17430-38230i20R..RT134..(LB,SED)..USA197809-197908

main17430-38231i20R..RT134..(LB,SED)..USA197908-198008

main17430-38240i20R..RT134..WG..USA197809-197908

main17430-38241i20R..RT134..WG..USA197908-198008

main17430-38250i20R..RT134..(LB,SED)..CND197809-197908

main17430-38251i20R..RT134..(LB,SED)..CND197908-198008

main17430-38260i20R..RT134..WG..CND197809-197908

main17430-38261i20R..RT134..WG..CND197908-198008

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17506-26050i20R,22R..RT13#..LB,SED197809-198112

FLOOR PAN SIDE

main17506-38050i20R,22R..RT13#..WG197809-198112

FLOOR PAN SIDE

main17561-26080i20R,22R..RT13#197809-198112

PIPE SIDE

17430BCUSHION, EXHAUST TAILPIPE(FOR FRONT)

main17591-36010i20R,22R..RT13#..LB,SED197809-198112

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90301-34207×2i20R,22R..RT13#197809-198112

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17507-26050i20R,22R..RT13#..LB,SED197809-198112

main17507-26060i20R,22R..RT13#..WG197908-198112

main17507-38050i20R..RT134..WG197809-197908

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-34207×2i20R,22R..RT13#197809-198112

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-36021i20R..RT134..WG197809-197908

main17508-38040i20R,22R..RT13#..LB,SED197908-198112

main17508-38050i20R,22R..RT13#..WG197908-198112

main17508-41010i20R..RT134..LB,SED197809-197908

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-34207×2i20R,22R..RT13#197809-198112

17451GASKET, EXHAUST PIPE

main90917-06012i20R..RT134..USA197809-198008

RR

main90917-06023i22R..RT135198008-198112

FR

9010510023

main90105-10023

9151161070

main91511-61070

9161640816

main91616-40816

9165540820

main91655-40820

9165640816

main91656-40816

9165640818

main91656-40818

9338215012

main93382-15012

9418041000

main94180-41000

26 parts on this diagram · 2 diagrams in section
