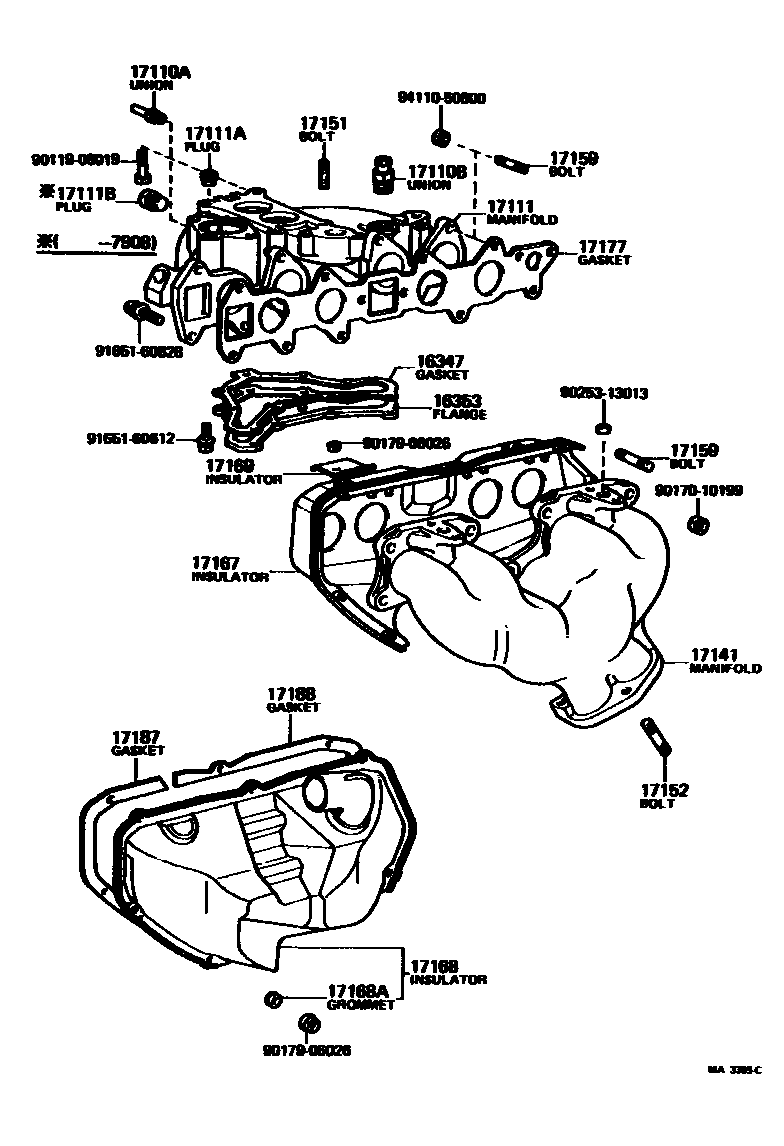

MANIFOLD
16347GASKET, WATER BY-PASS
16353FLANGE, WATER BY-PASS
17110AUNION, VACUUM HOSE
17110BUNION(FOR VENTILATION HOSE TO MANIFOLD)
17111MANIFOLD, INTAKE
17111BPLUG, NO.2
17141MANIFOLD, EXHAUST
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
L=40,S=11&11
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=39,S=15&15
L=46.5,S=14&20
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
L=34.5,S=9&16
L=42,S=12&25
L=46,S=13&23
L=36,S=13&13
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168AGROMMET(FOR EXHAUST MANIFOLD HEAT INSULATOR)
OD=11.5
OD=12.5
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17187GASKET, HEAT INSULATOR, NO.1
17188GASKET, HEAT INSULATOR, NO.2
9011908019
main90119-08019
9017010199
main90170-10199
9017906026
main90179-06026
9025313013
main90253-13013
9165160612
main91651-60612
9165160828
main91651-60828
9411050800
main94110-50800
25 parts on this diagram · 3 diagrams in section
