TIMING CHAIN

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

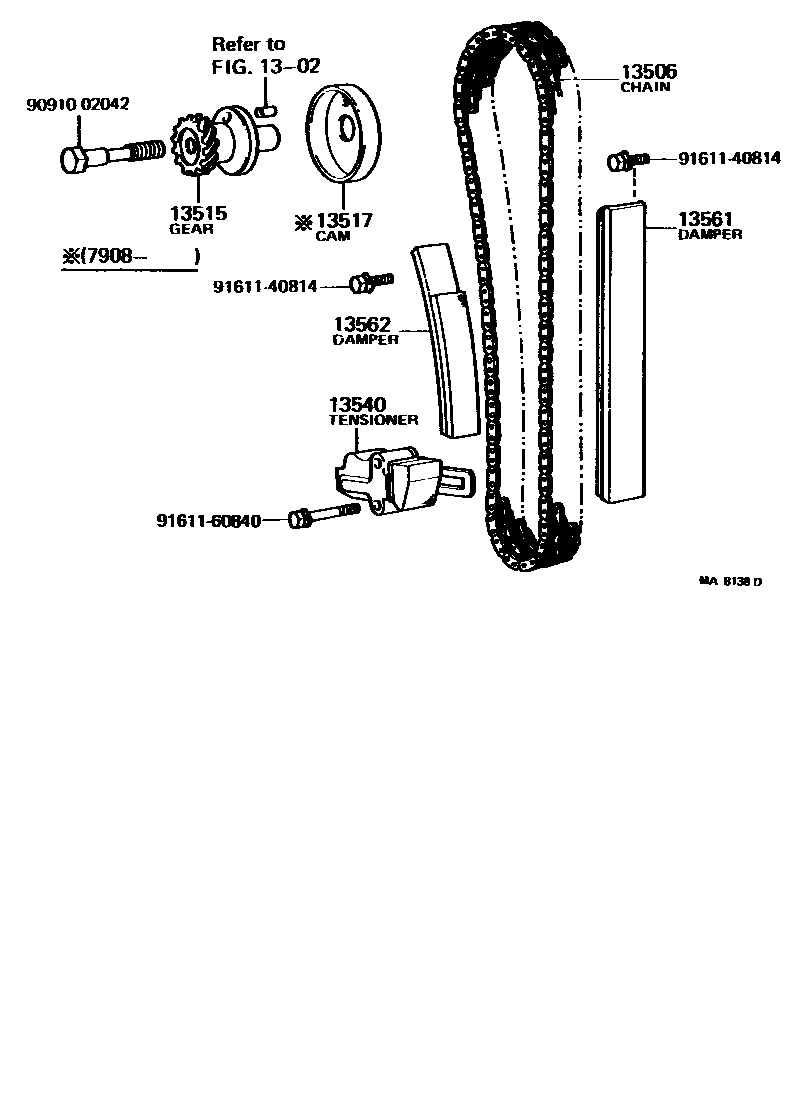

13506CHAIN SUB-ASSY

main13506-38010i20R,22R..RT13#197809-198112

13515GEAR, DISTRIBUTOR DRIVE

main13515-37010i20R,22R..RT13#197908-198112

N=13

main13515-38010i20R..RT134197809-197908

N=13

13517CAM, FUEL PUMP DRIVE

main13517-37010i20R,22R..RT13#197908-198112

13540TENSIONER ASSY, CHAIN, NO.1

main13540-38012i20R,22R..RT13#197809-198112

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-38010i20R,22R..RT13#197809-198112

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-38010i20R,22R..RT13#197809-198112

9091002042

main90910-02042

9161140814

main91611-40814

9161160840

main91611-60840

10 parts on this diagram · 1 diagram in section
