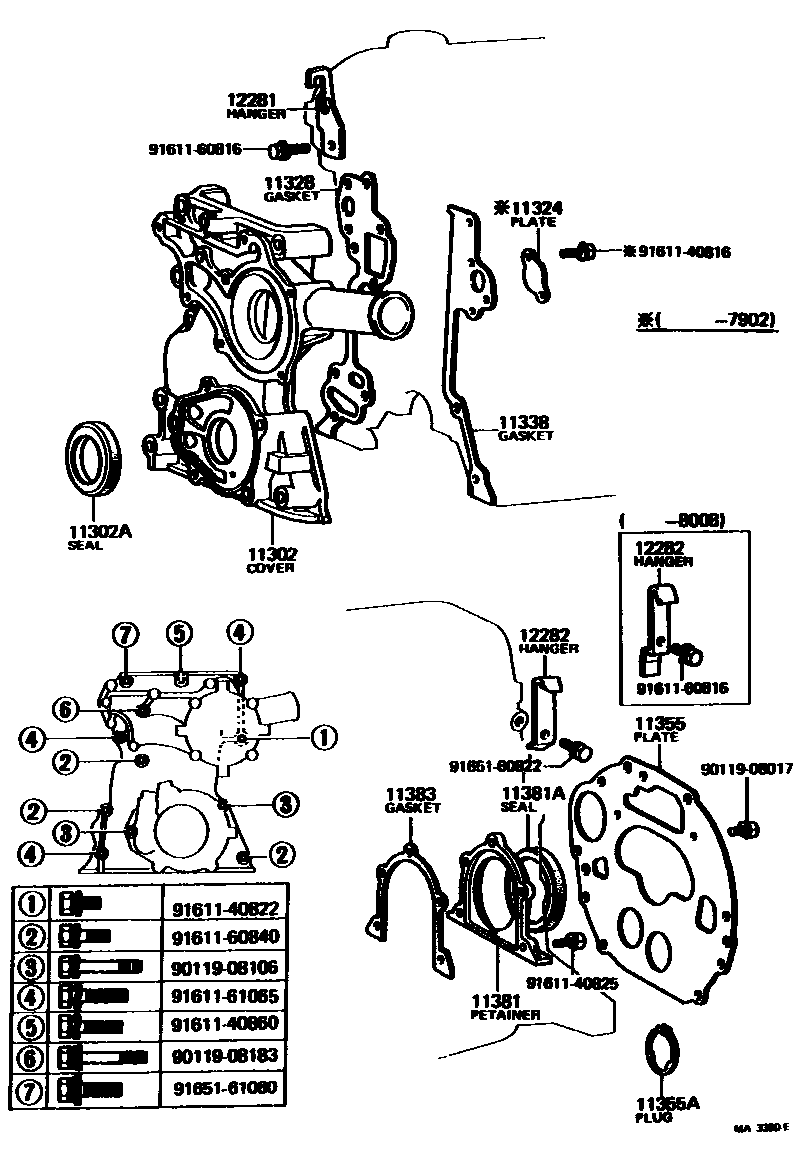

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-38010i20R,22R..RT13#197811-198112

main11321-38030i20R..RT134197809-197811

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-45002i20R,22R..RT13#197809-198112

TC 45 68 12

11324PLATE, TIMING CHAIN COVER

main11324-38020i20R..RT134..ATM197809-197902

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-38020i20R,22R..RT13#197809-198112

11338GASKET, TIMING CHAIN COVER, NO.2

main11338-38030i20R,22R..RT13#197809-198112

11355PLATE, REAR END

main11355-38011i20R,22R..RT13#..MTM197809-198112

main11355-38021i20R,22R..RT13#..ATM197809-198112

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01128×2i20R,22R..RT13#..ATM197809-198112

11381RETAINER, ENGINE REAR OIL SEAL

main11381-38010i20R,22R..RT13#197809-198112

11381ASEAL, ENGINE REAR OIL

main90311-80001i20R,22R..RT13#197809-198112

TC 80 100 12

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-33010i20R,22R..RT13#197809-198112

12281HANGER, ENGINE, NO.1

main12281-38020i20R,22R..RT13#197809-198112

12282HANGER, ENGINE, NO.2

main12282-35010i22R..RT135198008-198112

main12282-38010i20R..RT134197809-198008

9011908017

main90119-08017

9011908106

main90119-08106

9011908183

main90119-08183

9161140816

main91611-40816

9161140822

main91611-40822

9161140825

main91611-40825

9161140860

main91611-40860

9161160816

main91611-60816

9161160840

main91611-60840

9161161065

main91611-61065

9165160822

main91651-60822

9165161060

main91651-61060

24 parts on this diagram · 1 diagram in section
