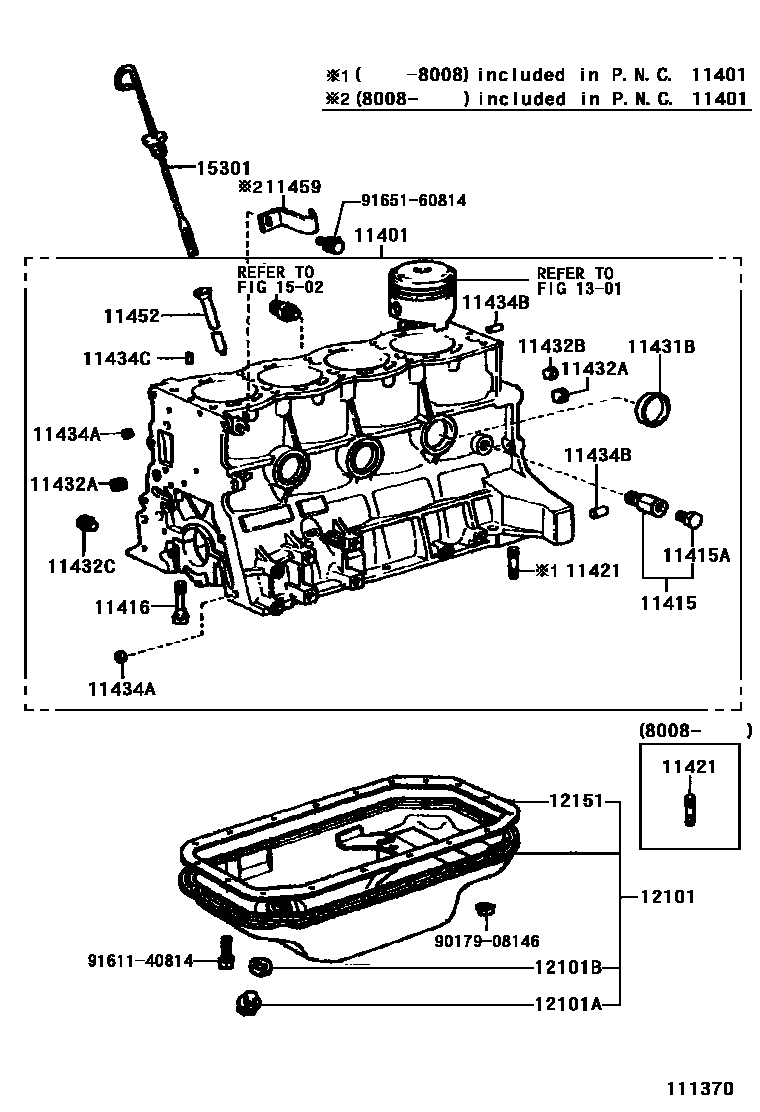

CYLINDER BLOCK

11401BLOCK SUB-ASSY, CYLINDER

main11401-39256i20R..RT134197809-197908

main11401-39257i20R..RT134197908-198008

main11401-39315i22R..RT135198008-198107

main11401-39365i22R..RT135198107-198112

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main96431-03833i20R,22R..RT13#197809-198112

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main96431-23814i20R,22R..RT13#197809-198112

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02042×10i20R,22R..RT13#197809-198112

*12-1.25PX75-25

11421BOLT, STUD(FOR OIL PAN)

main92122-40814×3i20R,22R..RT13#197809-198112

L=26,S=12&12

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000×6i20R,22R..RT13#197809-198112

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53002i22R..RT135198103-198112

RR

main90344-53008×2i20R..RT134197809-197904

main90344-53011i20R,22R..RT13#197904-198103

RR

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90344-52013i20R,22R..RT13#197809-198112

11432CPLUG, W/HEAD TAPER SCREW, NO.3

main90345-51025×2i20R,22R..RT13#197809-198112

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90253-11021×4i20R,22R..RT13#197809-198112

L=8,OD=11,L=8,OD=11

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i20R,22R..RT13#197809-198112

L=22,OD=10,L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×2i20R,22R..RT13#197809-198112

L=18,OD=8,L=18,OD=9

11452GUIDE, OIL LEVEL GAGE

main11452-38020i20R,22R..RT13#197809-198112

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-38020i20R,22R..RT13#197809-198112

12101PAN SUB-ASSY, OIL

main12101-39186i20R,22R..RT13#197809-198112

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089i20R,22R..RT13#197809-198112

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18244i20R,22R..RT13#197809-198112

12151GASKET, OIL PAN

main12151-38010i20R,22R..RT13#197809-198112

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1502OIL FILTER

→ Go to FIG 15-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-35010i22R..RT135198108-198112

main15301-38040i20R,22R..RT13#197809-198108

9017908146

main90179-08146

9161140814

main91611-40814

9165160814

main91651-60814

24 parts on this diagram · 1 diagram in section
