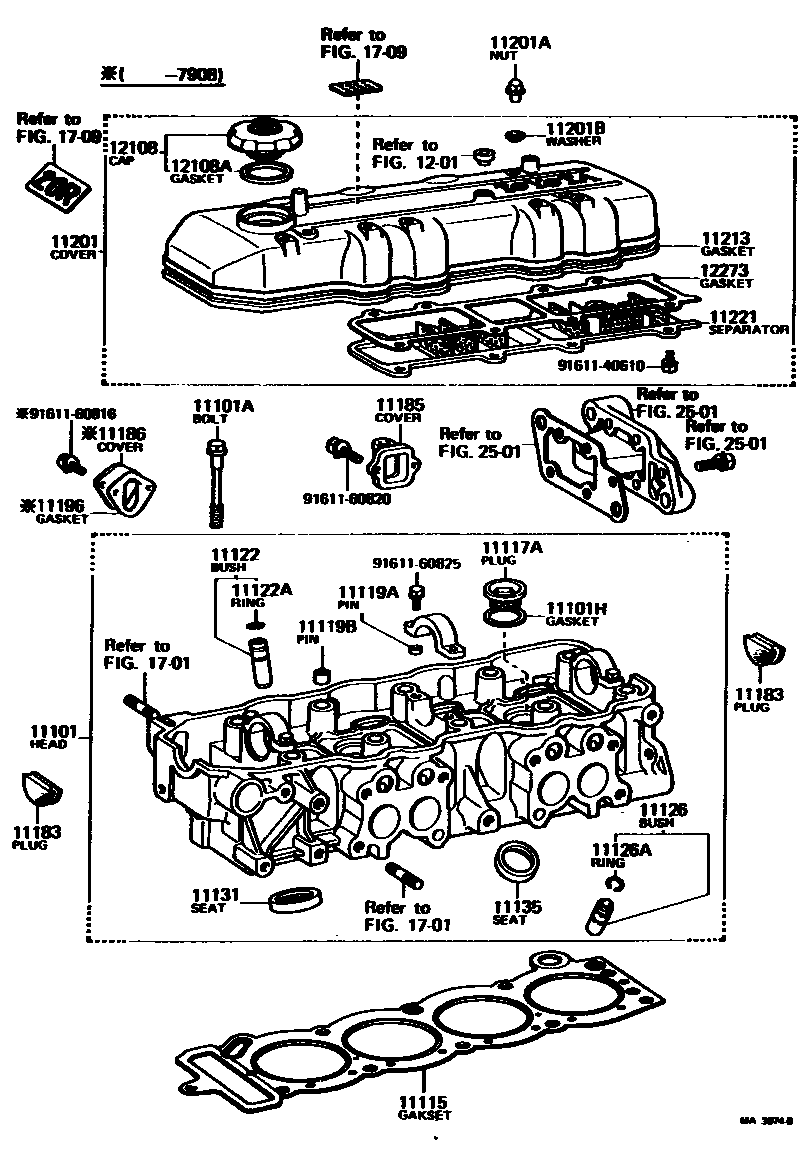

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
*12-1.25PX166.5-21
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
11115GASKET, CYLINDER HEAD
11117APLUG, W/HEAD TAPER SCREW, NO.1
11119APIN, STRAIGHT, NO.1
L=8,OD=11,L=8,OD=11
11119BPIN, STRAIGHT, NO.2
L=16,OD=15.5,L=16,OD=15.5
11122BUSH, INTAKE VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD,STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11183PLUG, SEMICIRCULAR
11185COVER, CYLINDER HEAD SIDE
11186COVER, CYLINDER HEAD SIDE, NO.2
11196GASKET, CYLINDER HEAD SIDE COVER
11201COVER SUB-ASSY, CYLINDER HEAD
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
11221SEPARATOR, CYLINDER HEAD COVER, NO.1
1201VENTILATION HOSE
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12273GASKET, OIL SEPARATOR
1701MANIFOLD
1709CAUTION PLATE & NAME PLATE (ENGINE)
2501EXHAUST GAS RECIRCULATION SYSTEM
9161140610
main91611-40610
9161160816
main91611-60816
9161160820
main91611-60820
9161160875
main91611-60875
33 parts on this diagram · 1 diagram in section
