Toyota 261430 — WINDSHIELD WIPER

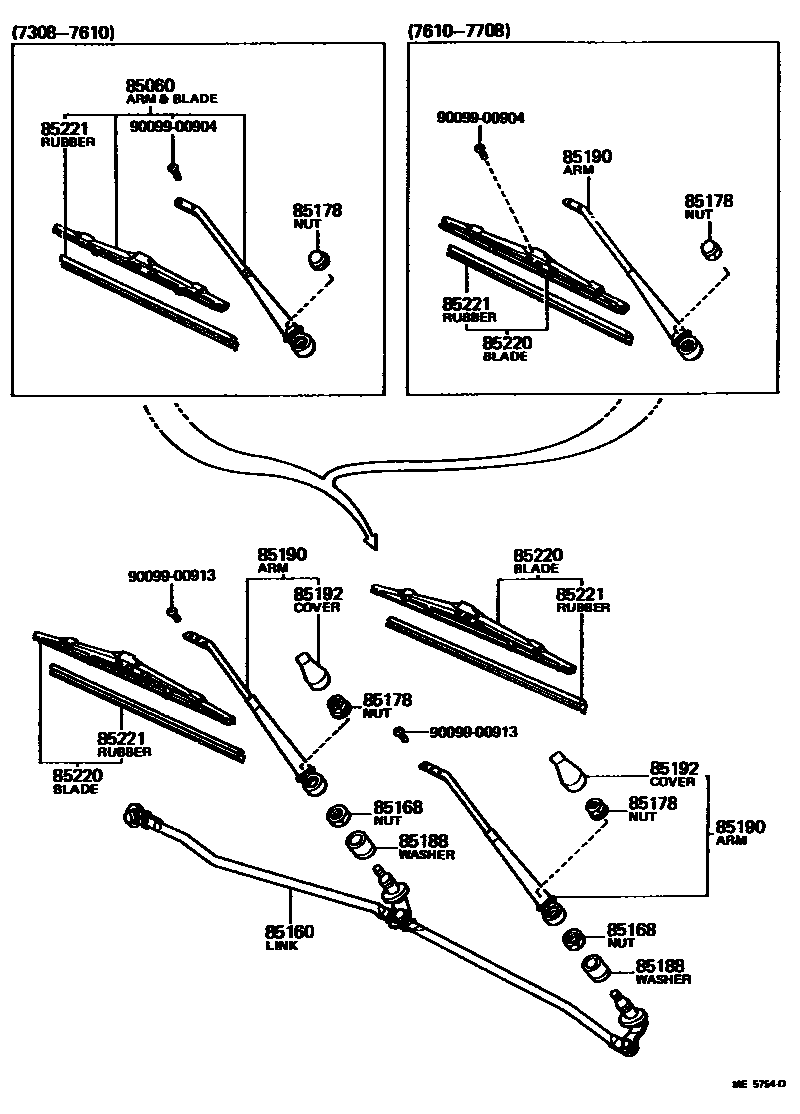

Parts diagram

85060ARM AND BLADE ASSY, WINDSHIELD WIPER

85160LINK ASSY, WINDSHIELD WIPER

85168NUT, WINDSHIELD WIPER LINK PIVOT

85178NUT (FOR FRONT WIPER ARM SETTING)

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

85190ARM ASSY, WINDSHIELD WIPER

85192COVER, WINDSHIELD WIPER ARM

85220BLADE ASSY, WINDSHIELD WIPER

85221BLADE, WINDSHIELD WIPER

9009900904

9009900913

11 parts on this diagram · 2 diagrams in section

WINDSHIELD WIPER for Toyota 261430

This section contains 26 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota 261430. Key components include: ARM AND BLADE ASSY, WINDSHIELD WIPER, MOTOR ASSY, WINDSHIELD WIPER, HOUSING, WINDSHIELD WIPER MOTOR GEAR, GEAR, WINDSHIELD WIPER MOTOR, SEAT, WINDSHIELD WIPER MOTOR RUBBER.
