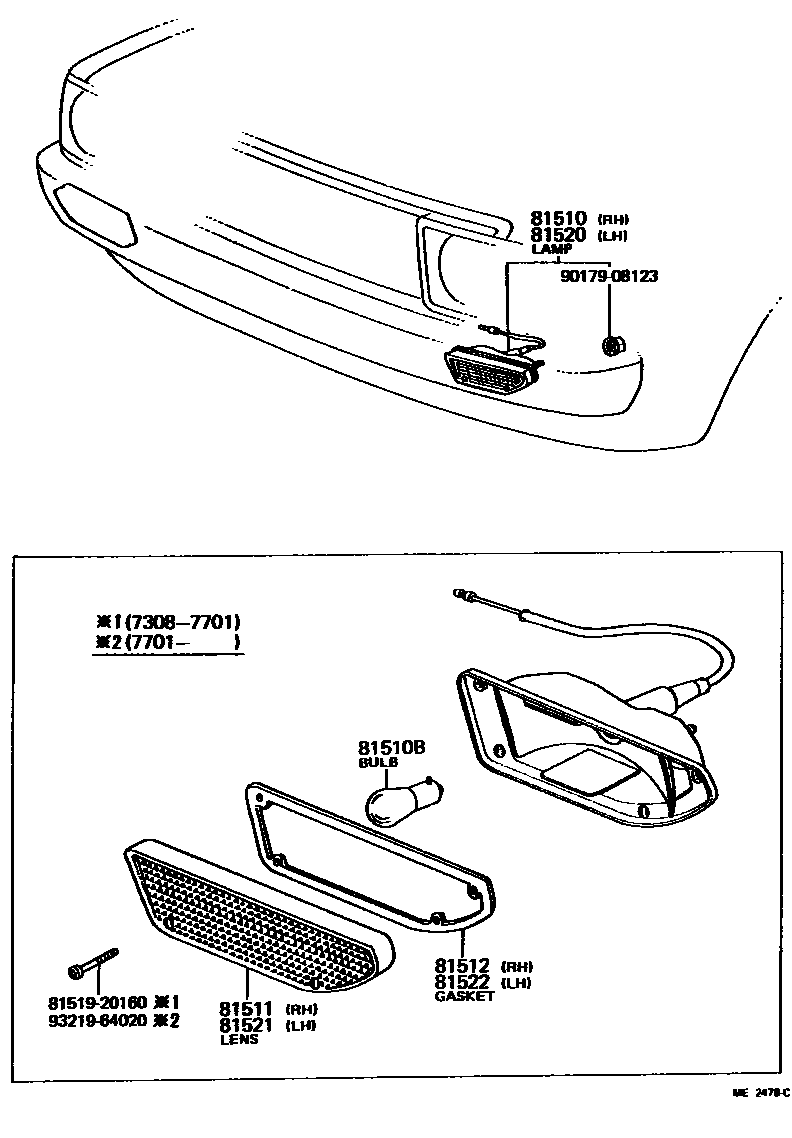

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-29335iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

AMBER

main81510-29336iRT119..3HC197701-197708

AMBER

main81510-29337iRT119..3HC197708-197808

AMBER

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11270×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

12V 27W,12V 27W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-20180iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

AMBER

main81511-20181iRT119..3HC197701-197808

AMBER

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-20180iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-29335iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

AMBER

main81520-29336iRT119..3HC197701-197708

AMBER

main81520-29337iRT119..3HC197708-197808

AMBER

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-20170iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

AMBER

main81521-20171iRT119..3HC197701-197808

AMBER

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81522-20170iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

8151920160BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-20160

9017908123

main90179-08123

9321964020

main93219-64020

10 parts on this diagram · 1 diagram in section
