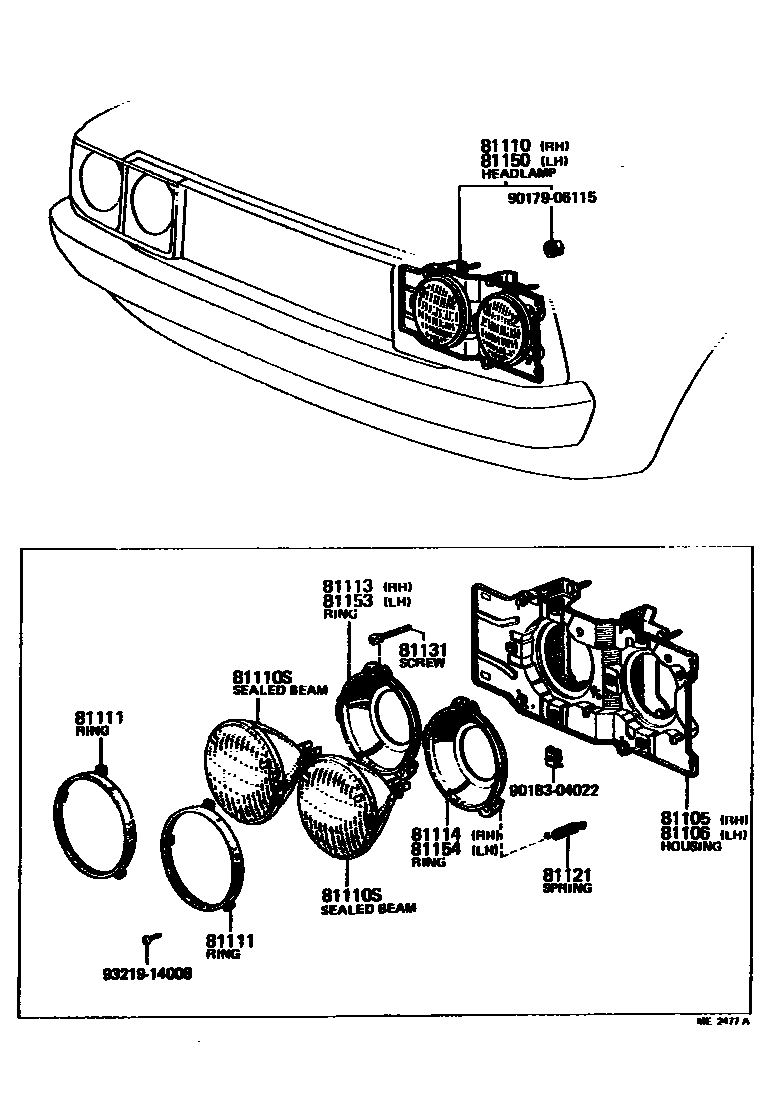

HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-20170iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81105-20210iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81105-20260iRT119..3HC197701-197808

IKI

main81105-20280iRT119..3HC197701-197808

KOITO

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-20130iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81106-20170iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81106-20220iRT119..3HC197701-197808

IKI

main81106-20240iRT119..3HC197701-197808

KOITO

81110HEADLAMP ASSY, RH

main81110-29315iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81110-29335iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main81110-29336iRT119..3HC;RT105..3FC..4D197509-197701

main81110-29565iRT119..3HC197701-197808

IKI

main81110-29585iRT119..3HC197709-197808

KOITO

81110SSEALED BEAM UNIT, NO.1

main90981-02006×2iRT119..3HC197701-197712

12V 37.5/50W,TOSHIBA

main90981-02011×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

12V 37.5W,*WB,12V 37.5W

main90981-02013×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

12V 37.5/50W,*WB,12V 37.5/50W

main90981-02023×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

12V 37.5W

main90981-02027×2iRT119..3HC197712-197808

12V 37.5W,IKI

main90981-02029×2iRT119..3HC197712-197808

12V 37.5/50W,IKI

81111RING, SEALED BEAM RETAINING

main81111-20110×4iRT119..3HC197701-197808

IKI

main81111-20111×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

TYPE 1

main81111-20170×4iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81111-20280×4iRT119..3HC197702-197808

KOITO

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-14100iRT119..3HC197701-197808

IKI

main81113-20111iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81113-20170iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81153-30150iRT119..3HC197701-197808

KOITO

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81114-20170iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81114-20210iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81154-30150iRT119..3HC197701-197808

KOITO

81121SPRING, HEADLAMP TENSION

main81121-20100×4iRT119..3HC197701-197808

KOITO

main90506-16019×4iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main90506-18018×4iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

81131SCREW, HEADLAMP ADJUSTING

main81131-20043×8iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81131-20053×8iRT119..3HC197701-197808

IKI

81150HEADLAMP ASSY, LH

main81150-29315iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81150-29335iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main81150-29336iRT119..3HC;RT105..3FC..4D197509-197701

main81150-29565iRT119..3HC197701-197808

IKI

main81150-29585iRT119..3HC197701-197808

KOITO

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-30170iRT119..3HC197701-197808

KOITO

main81153-14100iRT119..3HC197701-197808

IKI

main81153-20071iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81153-20130iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81114-30170iRT119..3HC197701-197808

KOITO

main81154-20130iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81154-20170iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

9017906115

main90179-06115

9018304022

main90183-04022

9321914008

main93219-14008

15 parts on this diagram · 1 diagram in section
