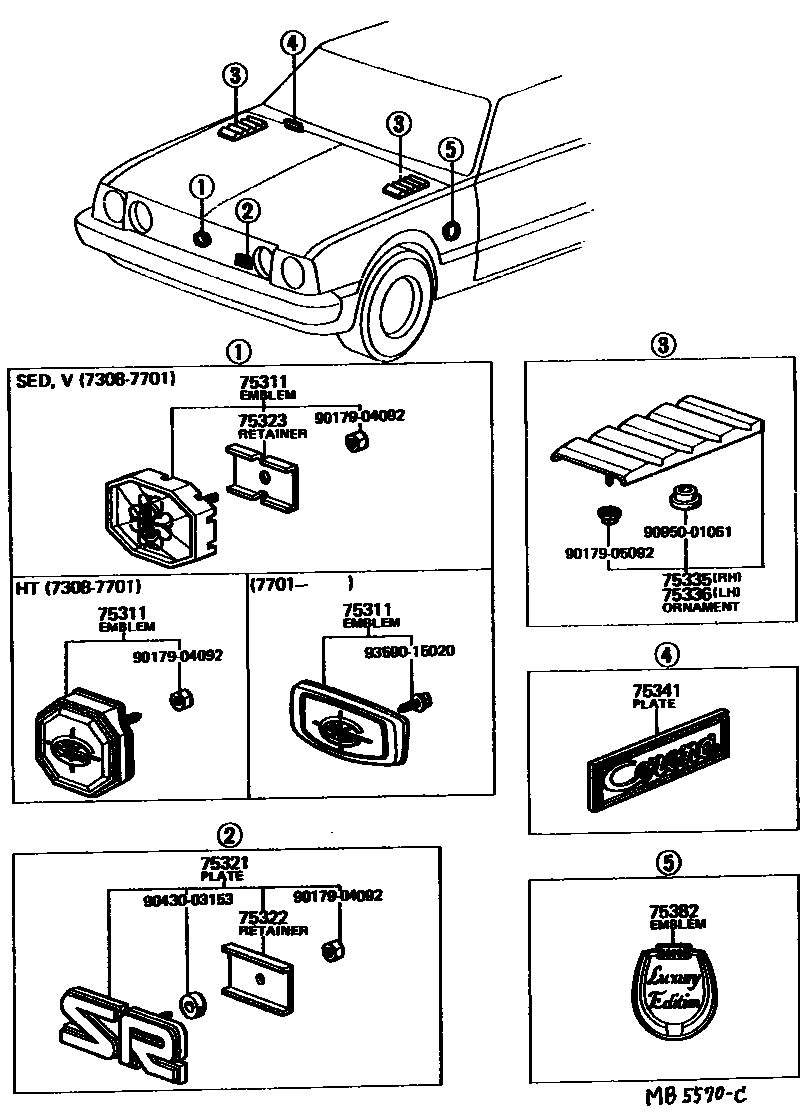

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-29065iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197512

main75301-29066iRT119..3HC;RT105..3FC..4D197512-197701

main75301-29067iRT119..3HC197701-197808

main75301-29075iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-29255iRT118..4F;RT104..3FC..STD197308-197408

SR

75322RETAINER, RADIATOR GRILLE NAME PLATE

main75322-20080iRT118..4F;RT104..3FC..STD197308-197408

75323RETAINER, RADIATOR GRILLE

main75317-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

75335ORNAMENT, HOOD RELIEF, RH

main75335-29015iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197501

75336ORNAMENT, HOOD RELIEF, LH

main75336-29015iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197501

75341PLATE, INSTRUMENT PANEL NAME, NO.1

main55435-20100iRT118..4F;RT104..3FC..STD197308-197407

75382EMBLEM, QUARTER PANEL OR SIDE PANEL

main75350-20020iRT119..3HC197708-197808

LUXURY EDITION

9017904092

main90179-04092

9017905092

main90179-05092

9043003153

main90430-03153

9095001061

main90950-01061

9359015020

main93590-15020

13 parts on this diagram · 2 diagrams in section
