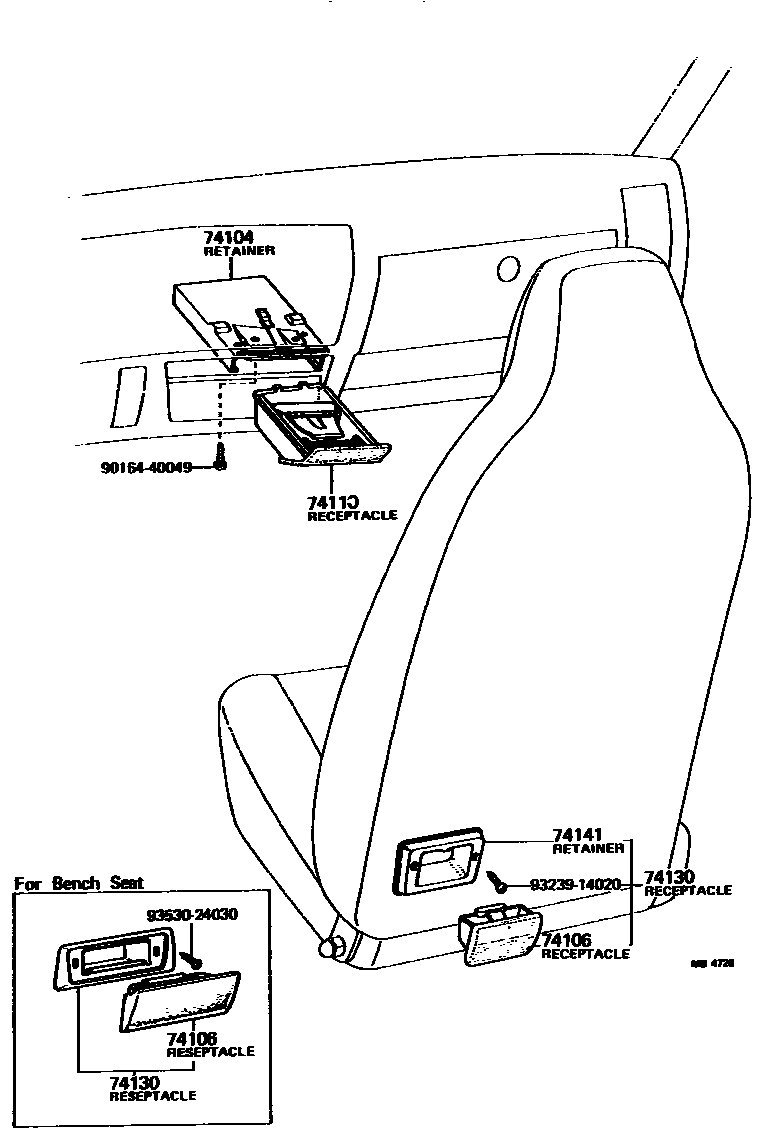

ASH RECEPTACLE

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-20060iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main74104-20100iRT119..3HC197701-197808

74106RECEPTACLE SUB-ASSY, ASH, NO.2

main74106-12010-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main74106-12010-06iRT118..4F;RT104..3FC..STD197308-197408

OLIVE-BROWN,BROWN

main74106-12010-11iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197610

BLACK,BLACK

main74106-20010-01iRT119..3HC197605-197808

FOR BN.BLACK,BLACK

main74106-20010-05iRT119..3HC197701-197808

FOR BN.BEIGE,BEIGE

main74106-20010-13iRT119..3HC197701-197808

FOR BN.GRAY,GRAY

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74102-20030-01iRT119..3HC197701-197808

BLACK,BLACK

main74102-20030-03iRT119..3HC197701-197808

GRAY,GRAY

main74102-20030-05iRT119..3HC197701-197808

BEIGE,BEIGE

main74108-20040-01iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

BLACK,BLACK

main74108-20040-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main74108-20040-06iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

OLIVE-BROWN,BROWN

74130RECEPTACLE ASSY, REAR ASH

main74130-10040-01iRT119..3HC197701-197703

LUXURY EDITION,BLACK,BLACK

main74130-10040-03iRT119..3HC197701-197703

LUXURY EDITION,GRAY,GRAY

main74130-10040-05iRT119..3HC197701-197703

LUXURY EDITION,BEIGE,BEIGE

main74130-12010-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main74130-12010-06iRT118..4F;RT104..3FC..STD197308-197408

OLIVE-BROWN,BROWN

main74130-12010-11iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197610

BLACK,BLACK

main74130-20030-01iRT119..3HC197605-197808

FOR BN.BLACK,BLACK

main74130-20030-03iRT119..3HC197701-197808

FOR BN.GRAY,GRAY

main74130-20030-05iRT119..3HC197701-197808

FOR BN.BEIGE,BEIGE

main74130-22020-01iRT119..3HC197610-197808

FOR SP.BLACK,BLACK

main74130-22020-03iRT119..3HC197610-197808

FOR SP.GRAY,GRAY

main74130-22020-05iRT119..3HC197610-197808

FOR SP.BEIGE,BEIGE

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74109-12010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

9016440049

main90164-40049

9323914020

main93239-14020

9353024030

main93530-24030

8 parts on this diagram · 1 diagram in section
