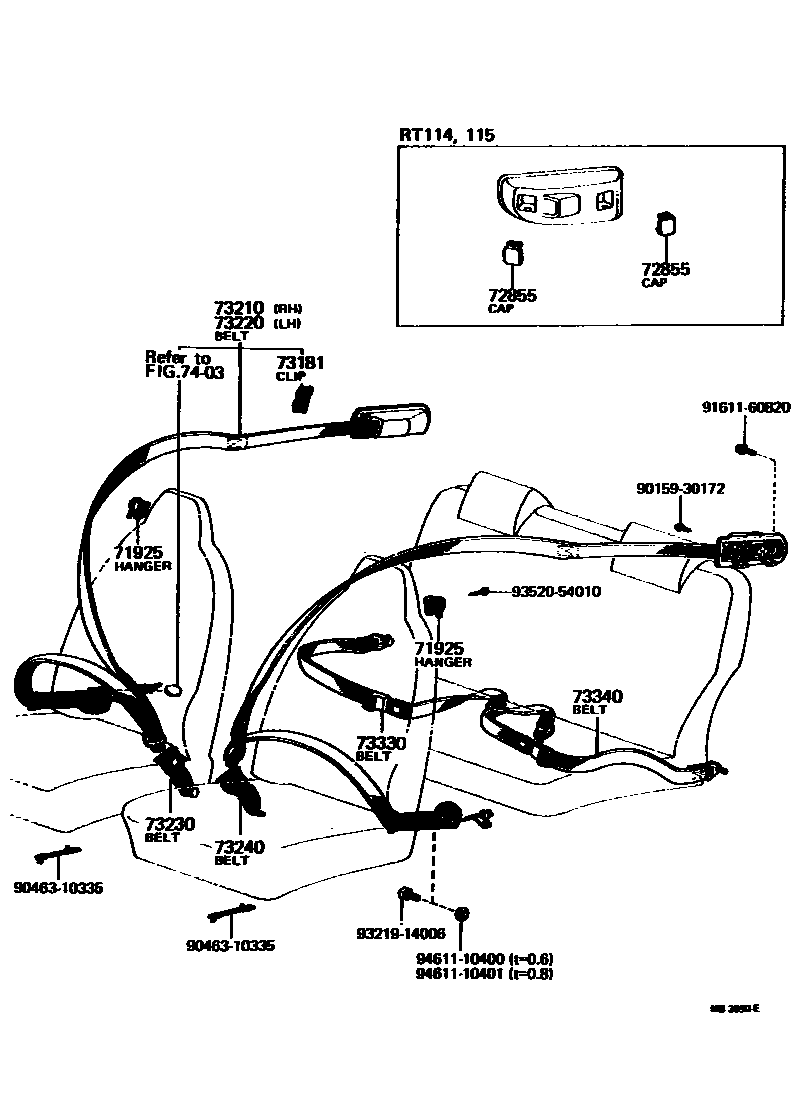

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

71925HANGER, SEAT BELT

main73176-20010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

RH.

main73176-20010-01iRT119..3HC;RT105..3FC..4D197509-197701

RH.BLACK,BLACK

main73176-20010-05iRT119..3HC;RT105..3FC..4D197509-197701

RH.BEIGE,BEIGE

main73176-20010-06iRT119..3HC;RT105..3FC..4D197509-197701

RH.BROWN,BROWN

main73176-20020-01iRT119..3HC197701-197808

RH.BLACK,BLACK

main73176-20020-03iRT119..3HC197701-197808

RH.GRAY,GRAY

main73176-20020-05iRT119..3HC197701-197808

RH.BEIGE,BEIGE

main73177-20010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

LH.

main73177-20010-01iRT119..3HC;RT105..3FC..4D197509-197701

LH.BLACK,BLACK

main73177-20010-05iRT119..3HC;RT105..3FC..4D197509-197701

LH.BROWN,BEIGE

main73177-20010-06iRT119..3HC;RT105..3FC..4D197509-197701

LH.BROWN,BROWN

main73177-20020-01iRT119..3HC197701-197808

LH.BLACK,BLACK

main73177-20020-03iRT119..3HC197701-197808

LH.GRAY,GRAY

main73177-20020-05iRT119..3HC197701-197808

LH.BEIGE,BEIGE

72855CAP, BELT RETRACTOR COVER

main72855-20010×4iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

73181CLIP, BELT COMFORT, NO.1

main73181-20010×2iRT119..3HC;RT105..3FC..4D197408-197701

73210BELT ASSY, FRONT SEAT OUTER, RH

main71910-20090-01iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

BLACK,BLACK

main71910-20090-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main71910-20090-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main71910-20090-06iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

OLIVE-BROWN,BROWN

main71910-20091-01iRT119..3HC;RT105..3FC..4D197509-197701

BLACK,BLACK

main71910-20091-06iRT119..3HC;RT105..3FC..4D197509-197608

BROWN-GRAY,BROWN

main71910-20091-16iRT119..3HC;RT105..3FC..4D197509-197701

BROWN-BEIGE,BROWN

main71910-20130-01iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

BLACK,BLACK

main71910-20130-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main71910-20130-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main71910-20130-06iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

OLIVE-BROWN,BROWN

main71910-20131-01iRT119..3HC;RT105..3FC..4D197509-197701

BLACK,BLACK

main71910-20131-06iRT119..3HC;RT105..3FC..4D197509-197608

BROWN-GRAY,BROWN

main71910-20131-16iRT119..3HC;RT105..3FC..4D197509-197701

BROWN-BEIGE,BROWN

main73210-20070-01iRT119..3HC197701-197808

BLACK,BLACK

main73210-20070-05iRT119..3HC197701-197808

BEIGE,BEIGE

main73210-20120-01iRT119..3HC197701-197808

BLACK,BLACK

main73210-20120-03iRT119..3HC197701-197808

GRAY,GRAY

main73210-20120-05iRT119..3HC197701-197808

BEIGE,BEIGE

main73210-95502-01iRT119..3HC197701-197808

BLACK,BLACK

main73210-95502-03iRT119..3HC197701-197808

GRAY,GRAY

main73210-95502-05iRT119..3HC197701-197808

BEIGE,BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main71920-20080-01iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

BLACK,BLACK

main71920-20080-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main71920-20080-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main71920-20080-06iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

OLIVE-BROWN,BROWN

main71920-20081-01iRT119..3HC;RT105..3FC..4D197509-197701

BLACK,BLACK

main71920-20081-06iRT119..3HC;RT105..3FC..4D197509-197608

BROWN-GRAY,BROWN

main71920-20081-16iRT119..3HC;RT105..3FC..4D197509-197701

BROWN-BEIGE,BROWN

main71920-20090-01iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

BLACK,BLACK

main71920-20090-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main71920-20090-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main71920-20090-06iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

OLIVE-BROWN,BROWN

main71920-20091-01iRT119..3HC;RT105..3FC..4D197509-197701

BLACK,BLACK

main71920-20091-06iRT119..3HC;RT105..3FC..4D197509-197608

BROWN-GRAY,BROWN

main71920-20091-16iRT119..3HC;RT105..3FC..4D197509-197701

BROWN-BEIGE,BROWN

main73220-20020-01iRT119..3HC197701-197808

BLACK,BLACK

main73220-20020-05iRT119..3HC197701-197808

BEIGE,BEIGE

main73220-20060-01iRT119..3HC197701-197808

BLACK,BLACK

main73220-20060-03iRT119..3HC197701-197808

GRAY,GRAY

main73220-20060-05iRT119..3HC197701-197808

BEIGE,BEIGE

main73220-95502-01iRT119..3HC197701-197808

BLACK,BLACK

main73220-95502-03iRT119..3HC197701-197808

GRAY,GRAY

main73220-95502-05iRT119..3HC197701-197808

BEIGE,BEIGE

73230BELT ASSY, FRONT SEAT INNER, RH

main72820-20010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

INNER

main73230-12050iRT119..3HC;RT105..3FC..4D197509-197701

main73230-20030-01iRT119..3HC197605-197701

BLACK,BLACK

main73230-20030-06iRT119..3HC197605-197701

BROWN,BROWN

main73230-20040-01iRT119..3HC197701-197808

BLACK,BLACK

main73230-20040-03iRT119..3HC197701-197808

GRAY,GRAY

main73230-20040-05iRT119..3HC197701-197808

BEIGE,BEIGE

main73230-20050-01iRT119..3HC197701-197808

BLACK,BLACK

main73230-20050-03iRT119..3HC197701-197808

GRAY,GRAY

main73230-20050-05iRT119..3HC197701-197808

BEIGE,BEIGE

73240BELT ASSY, FRONT SEAT INNER, LH

main72820-20010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

INNER

main73230-12050iRT119..3HC;RT105..3FC..4D197509-197701

main73230-20030-01iRT119..3HC197605-197701

BLACK,BLACK

main73230-20030-06iRT119..3HC197605-197701

BROWN,BROWN

main73230-20080-01iRT119..3HC197701-197808

BLACK,BLACK

main73230-20080-03iRT119..3HC197701-197808

GRAY,GRAY

main73230-20080-05iRT119..3HC197701-197808

BEIGE,BEIGE

main73230-20090-01iRT119..3HC197701-197808

BLACK,BLACK

main73230-20090-03iRT119..3HC197701-197808

GRAY,GRAY

main73230-20090-05iRT119..3HC197701-197808

BEIGE,BEIGE

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main71930-20080-01iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

BLACK,BLACK

main71930-20080-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main71930-20080-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main71930-20080-06iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

OLIVE-BROWN,BROWN

main71930-21010-01iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

BLACK,BLACK

main71930-21010-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main71930-21010-06iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

BROWN,BROWN

main73330-20010-01iRT119..3HC197701-197808

BLACK,BLACK

main73330-20010-03iRT119..3HC197701-197808

GRAY,GRAY

main73330-20010-05iRT119..3HC197701-197808

BEIGE,BEIGE

main73330-21010-01iRT119..3HC197701-197808

BLACK,BLACK

main73330-21010-03iRT119..3HC197701-197808

GRAY,GRAY

main73330-21010-05iRT119..3HC197701-197808

BEIGE,BEIGE

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main71930-20080-01iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

BLACK,BLACK

main71930-20080-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main71930-20080-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main71930-20080-06iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

OLIVE-BROWN,BROWN

main71930-21010-01iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

BLACK,BLACK

main71930-21010-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main71930-21010-06iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

BROWN,BROWN

main73340-20010-01iRT119..3HC197701-197808

BLACK,BLACK

main73340-20010-03iRT119..3HC197701-197808

GRAY,GRAY

main73340-20010-05iRT119..3HC197701-197808

BEIGE,BEIGE

main73340-21010-01iRT119..3HC197701-197808

BLACK,BLACK

main73340-21010-03iRT119..3HC197701-197808

GRAY,GRAY

main73340-21010-05iRT119..3HC197701-197808

BEIGE,BEIGE

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9015930172

main90159-30172

9046310335

main90463-10335

9161160820

main91611-60820

9321914006

main93219-14006

9352054010

main93520-54010

9461110400

main94611-10400

9461110401

main94611-10401

17 parts on this diagram · 2 diagrams in section
