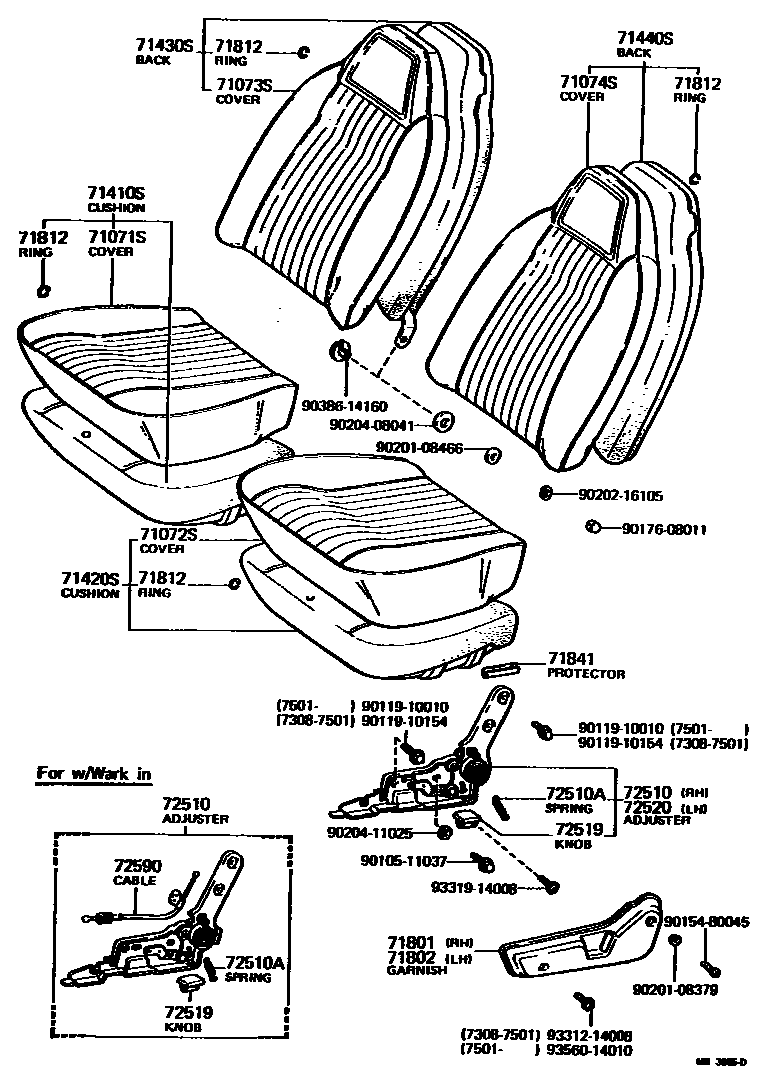

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-20330-01iRT119..3HC;RT105..3FC..4D197506-197701

PF.BLACK,BLACK

main71071-20330-03iRT118..4F;RT104..3FC..STD197308-197408

PF.GRAY,GRAY

main71071-20330-04iRT118..4F;RT104..3FC..STD197308-197408

PF.BLUE,BLUE

main71071-20330-05iRT105..3FC..4D197408-197506

PF.BEIGE,BEIGE

main71071-20330-06iRT118..4F;RT104..3FC..STD197308-197408

PF.OLIVE-BROWN,BROWN

main71071-20350-01iRT118..4F;RT104..3FC..STD197308-197408

FB.BLACK,BLACK

main71071-20350-03iRT118..4F;RT104..3FC..STD197308-197408

FB.GRAY,GRAY

main71071-20350-04iRT118..4F;RT104..3FC..STD197308-197408

FB.BLUE,BLUE

main71071-20350-06iRT118..4F;RT104..3FC..STD197308-197408

FB.OLIVE-BROWN,BROWN

main71071-20400-01iRT118..4F;RT104..3FC..STD197308-197408

VL.BLACK,BLACK

main71071-20400-03iRT118..4F;RT104..3FC..STD197308-197408

VL.GRAY,GRAY

main71071-20400-04iRT118..4F;RT104..3FC..STD197308-197408

VL.BLUE,BLUE

main71071-20400-06iRT118..4F;RT104..3FC..STD197308-197408

VL.OLIVE-BROWN,BROWN

main71071-20410-01iRT119..3HC;RT105..3FC..4D197408-197701

FB.BLACK,BLACK

main71071-20410-05iRT119..3HC;RT105..3FC..4D197408-197701

FB.BEIGE,BEIGE

main71071-20410-06iRT119..3HC;RT105..3FC..4D197408-197701

FB.OLIVE-BROWN,BROWN

main71071-20490-01iRT119..3HC197701-197808

PF.BLACK,BLACK

main71071-20490-03iRT119..3HC197701-197808

PF.GRAY,GRAY

main71071-20490-05iRT119..3HC197701-197808

PF.BEIGE,BEIGE

main71071-20500-01iRT119..3HC197804-197808

FB.BLACK,BLACK

main71071-20500-03iRT119..3HC197701-197804

FB.GRAY,GRAY

main71071-20500-05iRT119..3HC197804-197808

FB.BEIGE,BEIGE

main71071-20540-01iRT119..3HC197701-197708

FB.LUXURY EDITION,BLACK,BLACK

main71071-20540-03iRT119..3HC197701-197808

FB.LUXURY EDITION,GRAY,GRAY

main71071-20540-05iRT119..3HC197701-197808

FB.LUXURY EDITION,BEIGE,BEIGE

main71071-20560-01iRT119..3HC197708-197808

VL.LUXURY EDITION,BLACK,BLACK

main71071-20560-05iRT119..3HC197708-197808

VL.LUXURY EDITION,BEIGE,BEIGE

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-20330-01iRT118..4F;RT104..3FC..STD197308-197408

PF.BLACK,BLACK

main71071-20330-03iRT118..4F;RT104..3FC..STD197308-197408

PF.GRAY,GRAY

main71071-20330-04iRT118..4F;RT104..3FC..STD197308-197408

PF.BLUE,BLUE

main71071-20330-05iRT119..3HC;RT105..3FC..4D197506-197701

PF.BEIGE,BEIGE

main71071-20330-06iRT118..4F;RT104..3FC..STD197308-197408

PF.OLIVE-BROWN,BROWN

main71071-20350-01iRT118..4F;RT104..3FC..STD197308-197408

FB.BLACK,BLACK

main71071-20350-03iRT118..4F;RT104..3FC..STD197308-197408

FB.GRAY,GRAY

main71071-20350-04iRT118..4F;RT104..3FC..STD197308-197408

FB.BLUE,BLUE

main71071-20350-06iRT118..4F;RT104..3FC..STD197308-197408

FB.OLIVE-BROWN,BROWN

main71071-20400-01iRT118..4F;RT104..3FC..STD197308-197408

VL.BLACK,BLACK

main71071-20400-03iRT118..4F;RT104..3FC..STD197308-197408

VL.GRAY,GRAY

main71071-20400-04iRT118..4F;RT104..3FC..STD197308-197408

VL.BLUE,BLUE

main71071-20400-06iRT118..4F;RT104..3FC..STD197308-197408

VL.OLIVE-BROWN,BROWN

main71071-20410-01iRT119..3HC;RT105..3FC..4D197408-197701

FB.BLACK,BLACK

main71071-20410-05iRT119..3HC;RT105..3FC..4D197408-197701

FB.BEIGE,BEIGE

main71071-20410-06iRT119..3HC;RT105..3FC..4D197408-197701

FB.OLIVE-BROWN,BROWN

main71072-20160-01iRT119..3HC197701-197808

PF.BLACK,BLACK

main71072-20160-03iRT119..3HC197701-197808

PF.GRAY,GRAY

main71072-20160-05iRT119..3HC197701-197808

PF.BEIGE,BEIGE

main71072-20190-01iRT119..3HC197804-197808

FB.BLACK,BLACK

main71072-20190-03iRT119..3HC197701-197804

FB.GRAY,GRAY

main71072-20190-05iRT119..3HC197701-197804

FB.BEIGE,BEIGE

main71072-20200-01iRT119..3HC197701-197708

FB.LUXURY EDITION,BLACK,BLACK

main71072-20200-03iRT119..3HC197701-197808

FB.LUXURY EDITION,GRAY,GRAY

main71072-20200-05iRT119..3HC197701-197808

FB.LUXURY EDITION,BEIGE,BEIGE

main71072-20210-01iRT119..3HC197708-197808

VL.LUXURY EDITION,BLACK,BLACK

main71072-20210-05iRT119..3HC197708-197808

VL.LUXURY EDITION,BEIGE,BEIGE

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-20310-01iRT118..4F;RT104..3FC..STD197308-197408

PF.BLACK,BLACK

main71073-20310-03iRT118..4F;RT104..3FC..STD197308-197408

PF.GRAY,GRAY

main71073-20310-04iRT118..4F;RT104..3FC..STD197308-197408

PF.BLUE,BLUE

main71073-20310-06iRT118..4F;RT104..3FC..STD197308-197408

PF.OLIVE-BROWN,BROWN

main71073-20311-01iRT105..3FC..4D197408-197506

PF.BLACK,BLACK

main71073-20311-05iRT119..3HC;RT105..3FC..4D197506-197701

PF.BEIGE,BEIGE

main71073-20311-06iRT119..3HC;RT105..3FC..4D197506-197701

PF.OLIVE-BROWN,BROWN

main71073-20330-01iRT118..4F;RT104..3FC..STD197308-197408

FB.BLACK,BLACK

main71073-20330-03iRT118..4F;RT104..3FC..STD197308-197408

FB.GRAY,GRAY

main71073-20330-04iRT118..4F;RT104..3FC..STD197308-197408

FB.BLUE,BLUE

main71073-20330-06iRT118..4F;RT104..3FC..STD197308-197408

FB.OLIVE-BROWN,BROWN

main71073-20380-01iRT118..4F;RT104..3FC..STD197308-197408

VL.BLACK,BLACK

main71073-20380-03iRT118..4F;RT104..3FC..STD197308-197408

VL.GRAY,GRAY

main71073-20380-04iRT118..4F;RT104..3FC..STD197308-197408

VL.BLUE,BLUE

main71073-20380-06iRT118..4F;RT104..3FC..STD197308-197408

VL.OLIVE-BROWN,BROWN

main71073-20390-01iRT118..4F;RT104..3FC..STD197308-197408

FB.BLACK

main71073-20390-05iRT118..4F;RT104..3FC..STD197308-197408

FB.BEIGE

main71073-20390-06iRT118..4F;RT104..3FC..STD197308-197408

FB.OLIVE-BROWN

main71073-20391-01iRT119..3HC;RT105..3FC..4D197408-197701

FB.BLACK,BLACK

main71073-20391-05iRT119..3HC;RT105..3FC..4D197408-197701

FB.BEIGE,BEIGE

main71073-20391-06iRT119..3HC;RT105..3FC..4D197408-197701

FB.OLIVE-BROWN,BROWN

main71073-20480-01iRT119..3HC197701-197808

PF.BLACK,BLACK

main71073-20480-03iRT119..3HC197701-197808

PF.GRAY,GRAY

main71073-20480-05iRT119..3HC197701-197808

PF.BEIGE,BEIGE

main71073-20490-01iRT119..3HC197701-197804

FB.BLACK,BLACK

main71073-20490-03iRT119..3HC197804-197808

FB.GRAY,GRAY

main71073-20490-05iRT119..3HC197804-197808

FB.BEIGE,BEIGE

main71073-20540-01iRT119..3HC197701-197708

FB.LUXURY EDITION,BLACK,BLACK

main71073-20540-03iRT119..3HC197701-197707

FB.LUXURY EDITION,GRAY,GRAY

main71073-20540-05iRT119..3HC197701-197707

FB.LUXURY EDITION,BEIGE,BEIGE

main71073-20541-03iRT119..3HC197707-197808

FB.LUXURY EDITION,GRAY,GRAY

main71073-20541-05iRT119..3HC197707-197808

FB.LUXURY EDITION,BEIGE,BEIGE

main71073-20570-01iRT119..3HC197708-197808

VL.LUXURY EDITION,BLACK,BLACK

main71073-20570-05iRT119..3HC197708-197808

VL.LUXURY EDITION,BEIGE,BEIGE

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-20180-01iRT118..4F;RT104..3FC..STD197308-197408

PF.BLACK,BLACK

main71074-20180-03iRT118..4F;RT104..3FC..STD197308-197408

PF.GRAY,GRAY

main71074-20180-04iRT118..4F;RT104..3FC..STD197308-197408

PF.BLUE,BLUE

main71074-20180-06iRT118..4F;RT104..3FC..STD197308-197408

PF.OLIVE-BROWN,BROWN

main71074-20181-01iRT119..3HC;RT105..3FC..4D197506-197701

PF.BLACK,BLACK

main71074-20181-05iRT105..3FC..4D197408-197506

PF.BEIGE,BEIGE

main71074-20181-06iRT105..3FC..4D197408-197506

PF.OLIVE-BROWN,BROWN

main71074-20200-01iRT118..4F;RT104..3FC..STD197308-197408

FB.BLACK

main71074-20200-05iRT118..4F;RT104..3FC..STD197308-197408

FB.BEIGE

main71074-20200-06iRT118..4F;RT104..3FC..STD197308-197408

FB.OLIVE-BROWN

main71074-20201-01iRT119..3HC;RT105..3FC..4D197408-197701

FB.BLACK,BLACK

main71074-20201-05iRT119..3HC;RT105..3FC..4D197408-197701

FB.BEIGE,BEIGE

main71074-20201-06iRT119..3HC;RT105..3FC..4D197408-197701

FB.OLIVE-BROWN,BROWN

main71074-20220-01iRT118..4F;RT104..3FC..STD197308-197408

VL.BLACK,BLACK

main71074-20220-03iRT118..4F;RT104..3FC..STD197308-197408

VL.GRAY,GRAY

main71074-20220-04iRT118..4F;RT104..3FC..STD197308-197408

VL.BLUE,BLUE

main71074-20220-06iRT118..4F;RT104..3FC..STD197308-197408

VL.OLIVE-BROWN,BROWN

main71074-20230-01iRT118..4F;RT104..3FC..STD197308-197408

FB.BLACK,BLACK

main71074-20230-03iRT118..4F;RT104..3FC..STD197308-197408

FB.GRAY,GRAY

main71074-20230-04iRT118..4F;RT104..3FC..STD197308-197408

FB.BLUE,BLUE

main71074-20230-06iRT118..4F;RT104..3FC..STD197308-197408

FB.OLIVE-BROWN,BROWN

main71074-20260-01iRT119..3HC197701-197808

PF.BLACK,BLACK

main71074-20260-03iRT119..3HC197701-197808

PF.GRAY,GRAY

main71074-20260-05iRT119..3HC197701-197808

PF.BEIGE,BEIGE

main71074-20290-01iRT119..3HC197701-197804

FB.BLACK,BLACK

main71074-20290-03iRT119..3HC197701-197804

FB.GRAY,GRAY

main71074-20290-05iRT119..3HC197701-197804

FB.BEIGE,BEIGE

main71074-20310-01iRT119..3HC197701-197708

FB.LUXURY EDITION,BLACK,BLACK

main71074-20310-03iRT119..3HC197701-197707

FB.LUXURY EDITION,GRAY,GRAY

main71074-20310-05iRT119..3HC197701-197707

FB.LUXURY EDITION,BEIGE,BEIGE

main71074-20311-03iRT119..3HC197707-197808

FB.LUXURY EDITION,GRAY,GRAY

main71074-20311-05iRT119..3HC197707-197808

FB.LUXURY EDITION,BEIGE,BEIGE

main71074-20330-01iRT119..3HC197708-197808

VL.LUXURY EDITION,BLACK,BLACK

main71074-20330-05iRT119..3HC197708-197808

VL.LUXURY EDITION,BEIGE,BEIGE

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-20370-01iRT119..3HC;RT105..3FC..4D197506-197701

PF.BLACK,BLACK

main71410-20370-03iRT118..4F;RT104..3FC..STD197308-197408

PF.GRAY,GRAY

main71410-20370-04iRT118..4F;RT104..3FC..STD197308-197408

PF.BLUE,BLUE

main71410-20370-05iRT105..3FC..4D197408-197506

PF.BEIGE,BEIGE

main71410-20370-06iRT118..4F;RT104..3FC..STD197308-197408

PF.OLIVE-BROWN,BROWN

main71410-20390-01iRT118..4F;RT104..3FC..STD197308-197408

FB.BLACK,BLACK

main71410-20390-03iRT118..4F;RT104..3FC..STD197308-197408

FB.GRAY,GRAY

main71410-20390-04iRT118..4F;RT104..3FC..STD197308-197408

FB.BLUE,BLUE

main71410-20390-06iRT118..4F;RT104..3FC..STD197308-197408

FB.OLIVE-BROWN,BROWN

main71410-20430-01iRT118..4F;RT104..3FC..STD197308-197408

VL.BLACK,BLACK

main71410-20430-03iRT118..4F;RT104..3FC..STD197308-197408

VL.GRAY,GRAY

main71410-20430-04iRT118..4F;RT104..3FC..STD197308-197408

VL.BLUE,BLUE

main71410-20430-06iRT118..4F;RT104..3FC..STD197308-197408

VL.OLIVE-BROWN,BROWN

main71410-20440-01iRT119..3HC;RT105..3FC..4D197408-197701

FB.BLACK,BLACK

main71410-20440-05iRT119..3HC;RT105..3FC..4D197408-197701

FB.BEIGE,BEIGE

main71410-20440-06iRT119..3HC;RT105..3FC..4D197408-197701

FB.OLIVE-BROWN,BROWN

main71410-20550-01iRT119..3HC197701-197808

PF.BLACK,BLACK

main71410-20550-03iRT119..3HC197701-197808

PF.GRAY,GRAY

main71410-20550-05iRT119..3HC197701-197808

PF.BEIGE,BEIGE

main71410-20570-01iRT119..3HC197804-197808

FB.BLACK,BLACK

main71410-20570-03iRT119..3HC197804-197808

FB.GRAY,GRAY

main71410-20570-05iRT119..3HC197804-197808

FB.BEIGE,BEIGE

main71410-20600-01iRT119..3HC197708-197808

VL.LUXURY EDITION,BLACK,BLACK

main71410-20600-05iRT119..3HC197708-197808

VL.LUXURY EDITION,BEIGE,BEIGE

main71410-20630-01iRT119..3HC197701-197708

FB.LUXURY EDITION,BLACK,BLACK

main71410-20630-03iRT119..3HC197701-197808

FB.LUXURY EDITION,GRAY,GRAY

main71410-20630-05iRT119..3HC197701-197808

FB.LUXURY EDITION,BEIGE,BEIGE

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71410-20370-01iRT119..3HC;RT105..3FC..4D197506-197701

PF.BLACK,BLACK

main71410-20370-03iRT118..4F;RT104..3FC..STD197308-197408

PF.GRAY,GRAY

main71410-20370-04iRT118..4F;RT104..3FC..STD197308-197408

PF.BLUE,BLUE

main71410-20370-05iRT119..3HC;RT105..3FC..4D197506-197701

PF.BEIGE,BEIGE

main71410-20370-06iRT119..3HC;RT105..3FC..4D197506-197701

PF.OLIVE-BROWN,BROWN

main71410-20390-01iRT118..4F;RT104..3FC..STD197308-197408

FB.BLACK,BLACK

main71410-20390-03iRT118..4F;RT104..3FC..STD197308-197408

FB.GRAY,GRAY

main71410-20390-04iRT118..4F;RT104..3FC..STD197308-197408

FB.BLUE,BLUE

main71410-20390-06iRT118..4F;RT104..3FC..STD197308-197408

FB.OLIVE-BROWN,BROWN

main71410-20430-01iRT118..4F;RT104..3FC..STD197308-197408

VL.BLACK,BLACK

main71410-20430-03iRT118..4F;RT104..3FC..STD197308-197408

VL.GRAY,GRAY

main71410-20430-04iRT118..4F;RT104..3FC..STD197308-197408

VL.BLUE,BLUE

main71410-20430-06iRT118..4F;RT104..3FC..STD197308-197408

VL.OLIVE-BROWN,BROWN

main71410-20440-01iRT119..3HC;RT105..3FC..4D197408-197701

FB.BLACK,BLACK

main71410-20440-05iRT119..3HC;RT105..3FC..4D197408-197701

FB.BEIGE,BEIGE

main71410-20440-06iRT119..3HC;RT105..3FC..4D197408-197701

FB.OLIVE-BROWN,BROWN

main71420-20170-01iRT119..3HC197701-197808

PF.BLACK,BLACK

main71420-20170-03iRT119..3HC197701-197808

PF.GRAY,GRAY

main71420-20170-05iRT119..3HC197701-197808

PF.BEIGE,BEIGE

main71420-20190-01iRT119..3HC197804-197808

FB.BLACK,BLACK

main71420-20190-03iRT119..3HC197804-197808

FB.GRAY,GRAY

main71420-20190-05iRT119..3HC197701-197804

FB.BEIGE,BEIGE

main71420-20220-01iRT119..3HC197701-197708

FB.BLACK,LUXURY EDITION,BLACK

main71420-20220-03iRT119..3HC197701-197808

FB.GRAY,LUXURY EDITION,GRAY

main71420-20220-05iRT119..3HC197701-197808

FB.BEIGE,LUXURY EDITION,BEIGE

main71420-20230-01iRT119..3HC197708-197808

VL.LUXURY EDITION,BLACK,BLACK

main71420-20230-05iRT119..3HC197708-197808

VL.LUXURY EDITION,BEIGE,BEIGE

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-20350-01iRT118..4F;RT104..3FC..STD197308-197408

PF.BLACK,BLACK

main71430-20350-03iRT118..4F;RT104..3FC..STD197308-197408

PF.GRAY,GRAY

main71430-20350-04iRT118..4F;RT104..3FC..STD197308-197408

PF.BLUE,BLUE

main71430-20350-06iRT118..4F;RT104..3FC..STD197308-197408

PF.OLIVE-BROWN,BROWN

main71430-20351-01iRT105..3FC..4D197408-197506

PF.BLACK,BLACK

main71430-20351-05iRT119..3HC;RT105..3FC..4D197506-197701

PF.BEIGE,BEIGE

main71430-20351-06iRT119..3HC;RT105..3FC..4D197506-197701

PF.OLIVE-BROWN,BROWN

main71430-20370-01iRT118..4F;RT104..3FC..STD197308-197408

FB.BLACK,BLACK

main71430-20370-03iRT118..4F;RT104..3FC..STD197308-197408

FB.GRAY,GRAY

main71430-20370-04iRT118..4F;RT104..3FC..STD197308-197408

FB.BLUE,BLUE

main71430-20370-06iRT118..4F;RT104..3FC..STD197308-197408

FB.OLIVE-BROWN,BROWN

main71430-20410-01iRT118..4F;RT104..3FC..STD197308-197408

VL.BLACK,BLACK

main71430-20410-03iRT118..4F;RT104..3FC..STD197308-197408

VL.GRAY,GRAY

main71430-20410-04iRT118..4F;RT104..3FC..STD197308-197408

VL.BLUE,BLUE

main71430-20410-06iRT118..4F;RT104..3FC..STD197308-197408

VL.OLIVE-BROWN,BROWN

main71430-20421-01iRT119..3HC;RT105..3FC..4D197408-197701

FB.BLACK,BLACK

main71430-20421-05iRT119..3HC;RT105..3FC..4D197408-197701

FB.BEIGE,BEIGE

main71430-20421-06iRT119..3HC;RT105..3FC..4D197408-197701

FB.OLIVE-BROWN,BROWN

main71430-20510-01iRT119..3HC197701-197808

PF.BLACK,BLACK

main71430-20510-03iRT119..3HC197701-197808

PF.GRAY,GRAY

main71430-20510-05iRT119..3HC197701-197808

PF.BEIGE,BEIGE

main71430-20520-01iRT119..3HC197701-197804

FB.BLACK,BLACK

main71430-20520-03iRT119..3HC197804-197808

FB.GRAY,GRAY

main71430-20520-05iRT119..3HC197701-197804

FB.BEIGE,BEIGE

main71430-20560-01iRT119..3HC197701-197708

FB.LUXURY EDITION,BLACK,BLACK

main71430-20560-03iRT119..3HC197701-197808

FB.LUXURY EDITION,GRAY,GRAY

main71430-20560-05iRT119..3HC197701-197808

FB.LUXURY EDITION,BEIGE,BEIGE

main71430-20580-01iRT119..3HC197708-197808

VL.LUXURY EDITION,BLACK,BLACK

main71430-20580-05iRT119..3HC197708-197808

VL.LUXURY EDITION,BEIGE,BEIGE

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-20190-01iRT118..4F;RT104..3FC..STD197308-197408

PF.BLACK,BLACK

main71440-20190-03iRT118..4F;RT104..3FC..STD197308-197408

PF.GRAY,GRAY

main71440-20190-04iRT118..4F;RT104..3FC..STD197308-197408

PF.BLUE,BLUE

main71440-20190-06iRT118..4F;RT104..3FC..STD197308-197408

PF.OLIVE-BROWN,BROWN

main71440-20191-01iRT105..3FC..4D197408-197506

PF.BLACK,BLACK

main71440-20191-05iRT105..3FC..4D197408-197506

PF.BEIGE,BEIGE

main71440-20191-06iRT119..3HC;RT105..3FC..4D197506-197701

PF.OLIVE-BROWN,BROWN

main71440-20210-01iRT118..4F;RT104..3FC..STD197308-197408

FB.BLACK,BLACK

main71440-20210-03iRT118..4F;RT104..3FC..STD197308-197408

FB.GRAY,GRAY

main71440-20210-04iRT118..4F;RT104..3FC..STD197308-197408

FB.BLUE,BLUE

main71440-20210-06iRT118..4F;RT104..3FC..STD197308-197408

FB.OLIVE-BROWN,BROWN

main71440-20240-01iRT118..4F;RT104..3FC..STD197308-197408

VL.BLACK,BLACK

main71440-20240-03iRT118..4F;RT104..3FC..STD197308-197408

VL.GRAY,GRAY

main71440-20240-04iRT118..4F;RT104..3FC..STD197308-197408

VL.BLUE,BLUE

main71440-20240-06iRT118..4F;RT104..3FC..STD197308-197408

VL.OLIVE-BROWN,BROWN

main71440-20251-01iRT119..3HC;RT105..3FC..4D197408-197701

FB.BLACK,BLACK

main71440-20251-05iRT119..3HC;RT105..3FC..4D197408-197701

FB.BEIGE,BEIGE

main71440-20251-06iRT119..3HC;RT105..3FC..4D197408-197701

FB.OLIVE-BROWN,BROWN

main71440-20280-01iRT119..3HC197701-197808

PF.BLACK,BLACK

main71440-20280-03iRT119..3HC197701-197808

PF.GRAY,GRAY

main71440-20280-05iRT119..3HC197701-197808

PF.BEIGE,BEIGE

main71440-20290-01iRT119..3HC197701-197804

FB.BLACK,BLACK

main71440-20290-03iRT119..3HC197804-197808

FB.GRAY,GRAY

main71440-20290-05iRT119..3HC197701-197804

FB.BEIGE,BEIGE

main71440-20310-01iRT119..3HC197701-197708

FB.LUXURY EDITION,BLACK,BLACK

main71440-20310-03iRT119..3HC197701-197808

FB.LUXURY EDITION,GRAY,GRAY

main71440-20310-05iRT119..3HC197701-197808

FB.LUXURY EDITION,BEIGE,BEIGE

main71440-20320-01iRT119..3HC197708-197808

VL.LUXURY EDITION,BLACK,BLACK

main71440-20320-05iRT119..3HC197708-197808

VL.LUXURY EDITION,BEIGE,BEIGE

71801GARNISH SUB-ASSY, FRONT SEAT CUSHION, RH

main71821-20050iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main71821-20050-01iRT119..3HC;RT105..3FC..4D197509-197701

BLACK,BLACK

main71821-20050-06iRT119..3HC;RT105..3FC..4D197509-197701

BROWN,BROWN

main71821-20060-01iRT119..3HC197605-197701

BLACK,BLACK

main71821-20060-06iRT119..3HC197605-197701

BROWN,BROWN

71802GARNISH SUB-ASSY, FRONT SEAT CUSHION, LH

main71822-20050iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main71822-20050-01iRT119..3HC;RT105..3FC..4D197509-197701

BLACK,BLACK

main71822-20050-06iRT119..3HC;RT105..3FC..4D197509-197701

BROWN,BROWN

main71822-20060-01iRT119..3HC197605-197701

BLACK,BLACK

main71822-20060-06iRT119..3HC197605-197701

BROWN,BROWN

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main71812-30010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main90468-18071iRT119..3HC197701-197808

71841PROTECTOR, FRONT SEAT CUSHION EDGE

main71838-20010iRT118..4F;RT104..3FC..STD197308-197408

main71838-20011iRT119..3HC;RT105..3FC..4D197410-197701

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-20060iRT118..4F;RT104..3FC..STD197308-197408

main72510-20070iRT118..4F;RT104..3FC..STD197308-197408

main72510-20090iRT119..3HC197701-197808

main72510-22050iRT119..3HC197701-197808

72510ASPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

main90506-16437×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

72519KNOB, RECLINING SEATBACK ADJUSTING ARM

main72519-20040×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main72525-22010-01iRT119..3HC197701-197808

RH.BLACK,BLACK

main72525-22010-05iRT119..3HC197701-197808

RH.BEIGE,BEIGE

main72526-22010-01iRT119..3HC197701-197808

LH.BLACK,BLACK

main72526-22010-05iRT119..3HC197701-197808

LH.BEIGE,BEIGE

72520ADJUSTER ASSY, RECLINING SEATBACK, LH

main72520-20060iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main72520-22050iRT119..3HC197701-197808

72590CABLE ASSY, SEATBACK CONTROL

main72210-20010iRT119..3HC197701-197808

main72310-20010iRT118..4F;RT104..3FC..STD197308-197408

9010511037

main90105-11037

9011910010

main90119-10010

9011910154

main90119-10154

9015480045

main90154-80045

9017608011

main90176-08011

9020108379

main90201-08379

9020108466

main90201-08466

9020216105

main90202-16105

9020408041

main90204-08041

9020411025

main90204-11025

9038614160

main90386-14160

9331214008

main93312-14008

9331914008

main93319-14008

9356014010

main93560-14010

31 parts on this diagram · 3 diagrams in section
